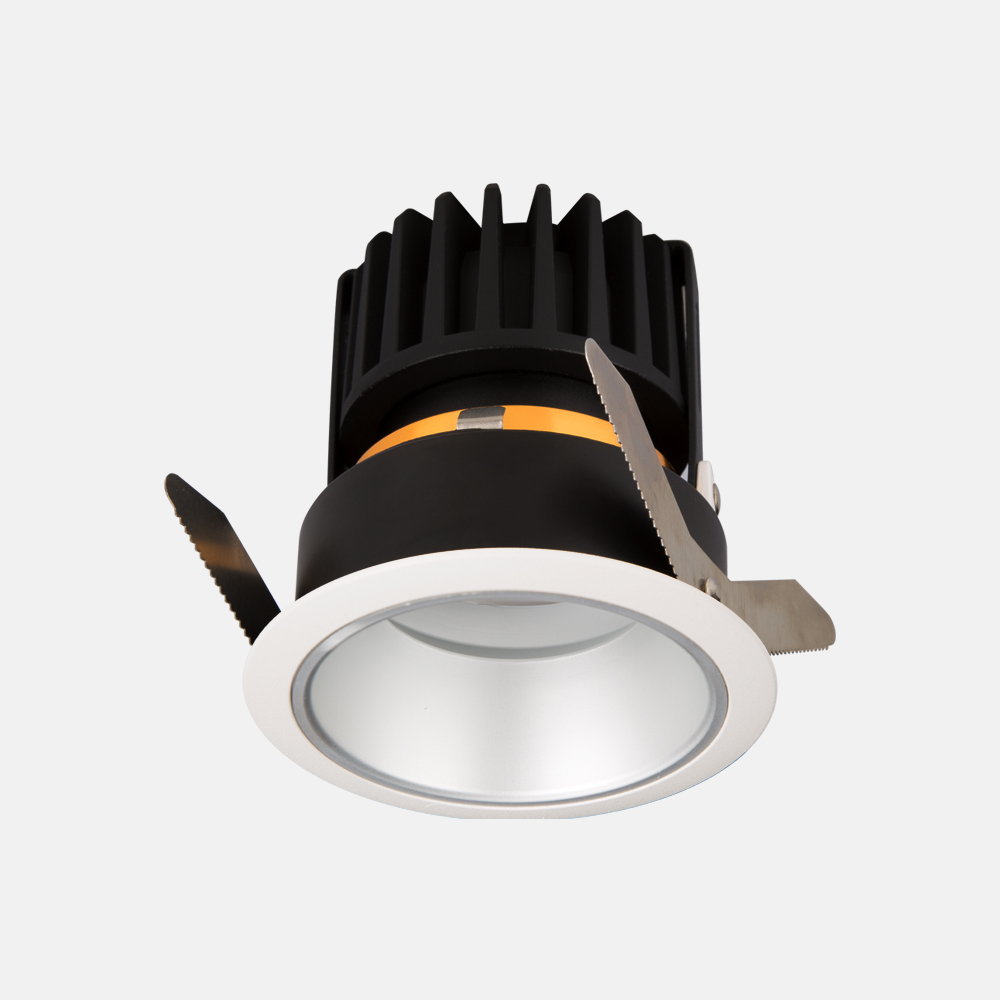

01.171A01000
Power：8W/10W
Installation method：Recessed

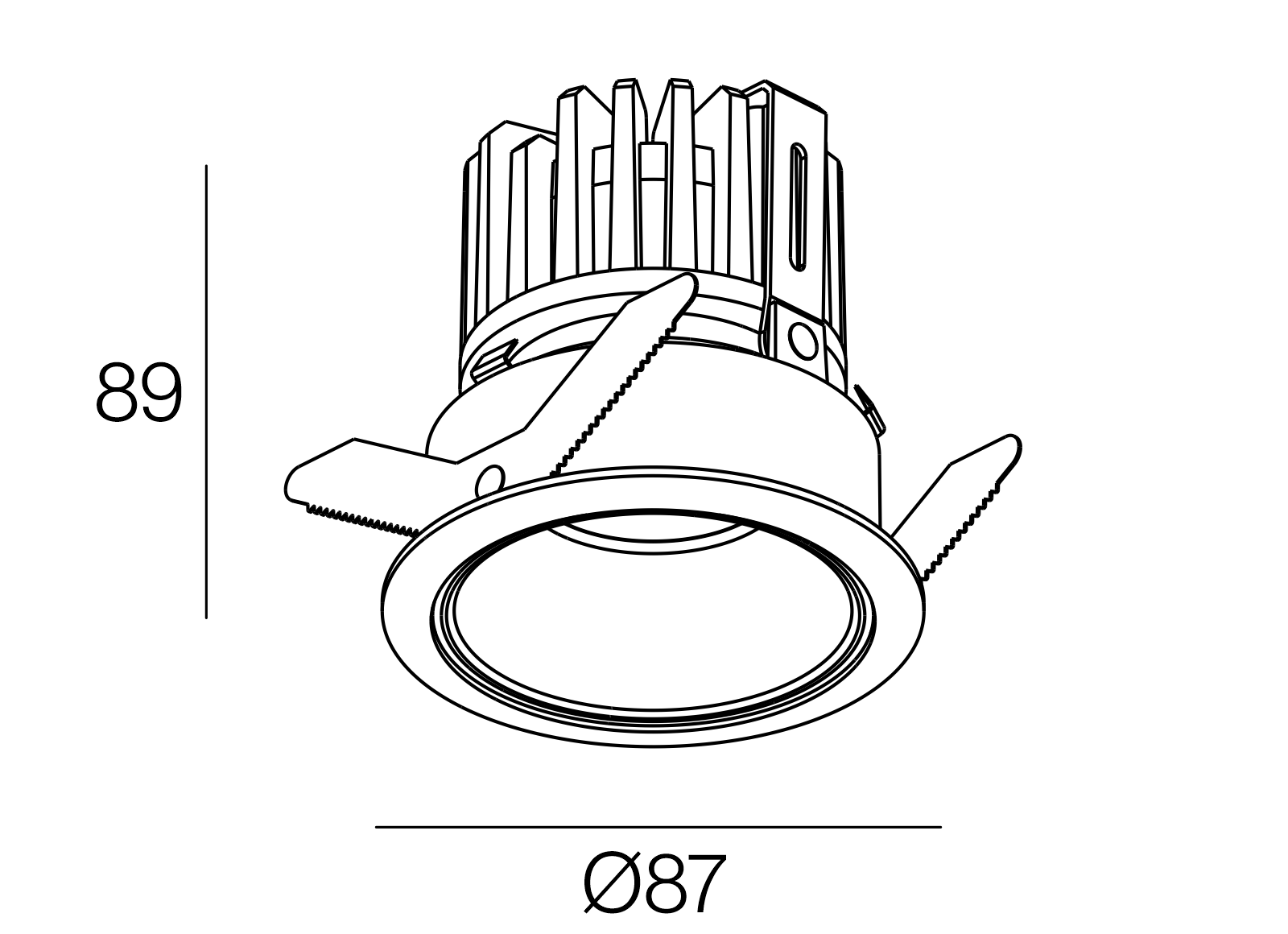

Cut out：φ75mm
Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee
Frequency：50/60Hz
LED chip：COB
Light efficiency：72 lm/W
CCT：2700K/3000K/3500K/4000K
CRI：≥90
SDCM：＜3
Adjustibility：20° Tilting
Light distribution：Direct
UGR：＜19
Beam angle：27°/30°/40°
Ingress protection：IP20
Material：Aluminum
Operating temperature：-25°C~50°C
Rated life hours：35,000h~50,000h LM80
White+Black

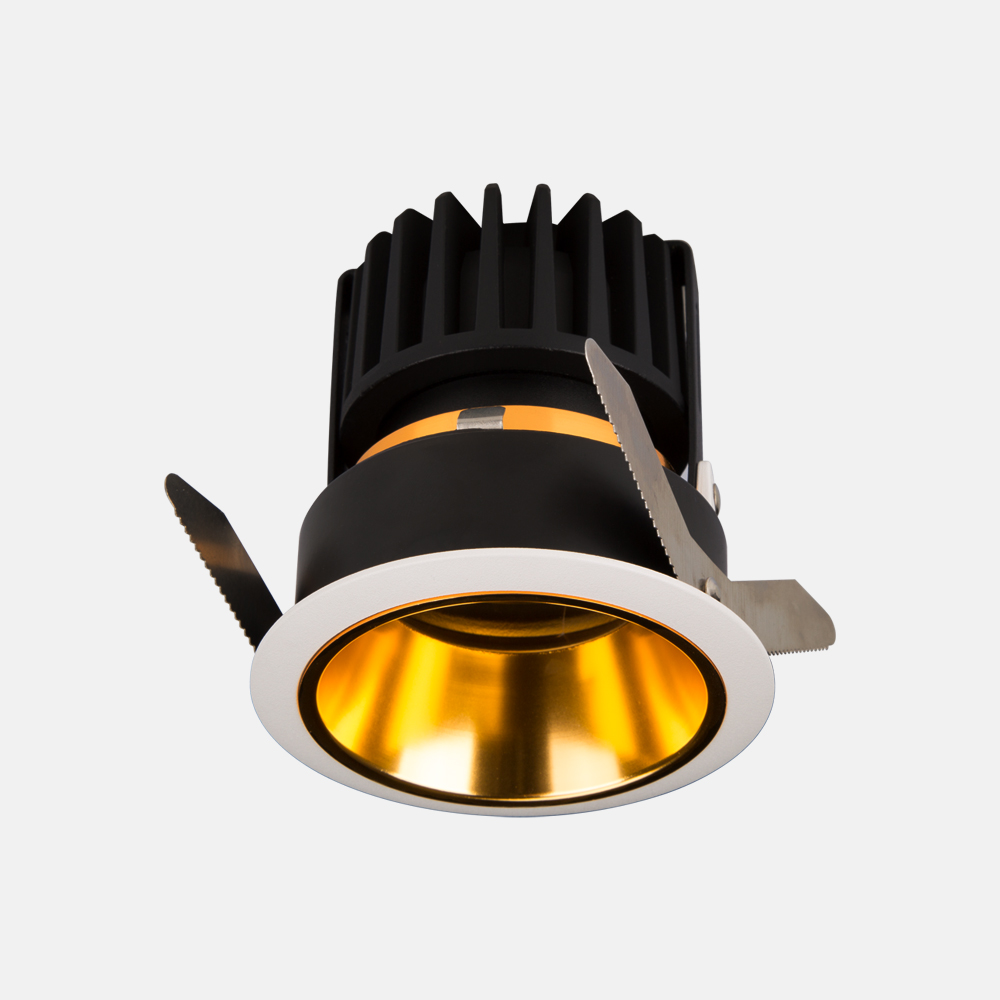

Black+Gold

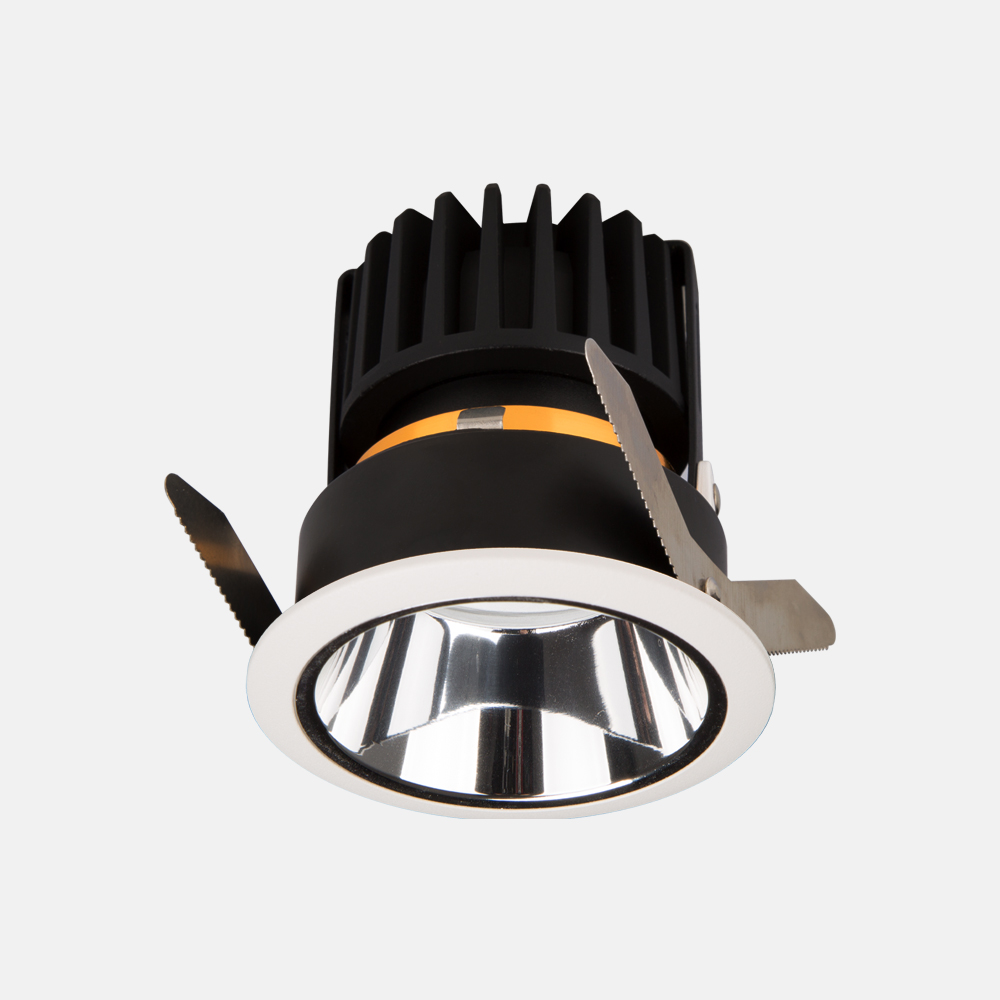

Black+Bright Silver

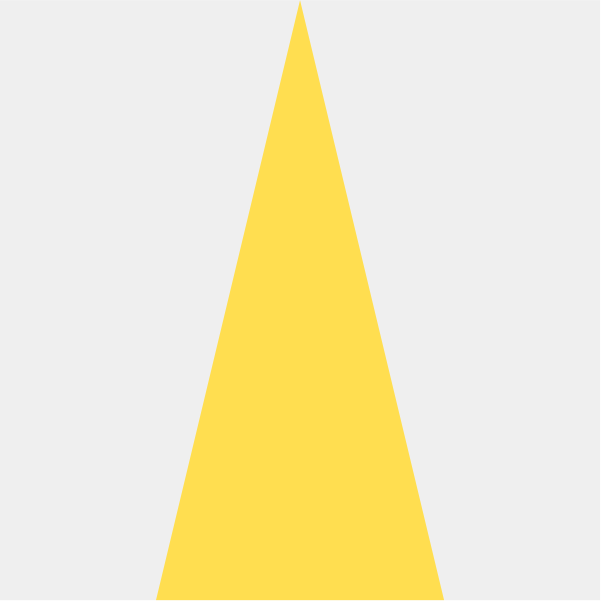

27°

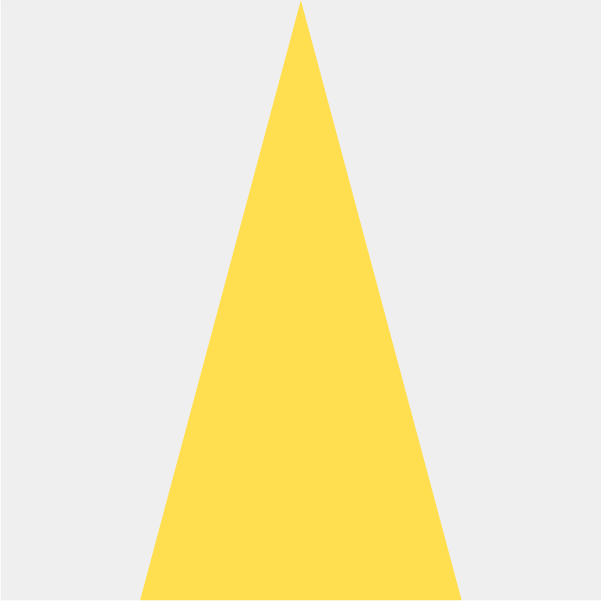

30°
40°

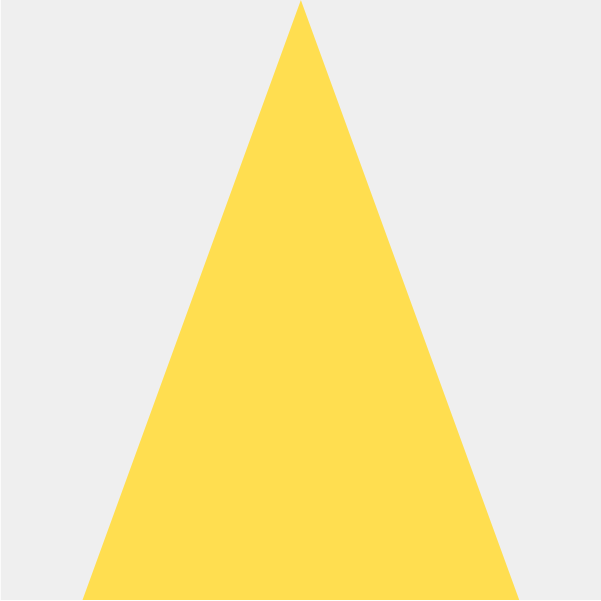

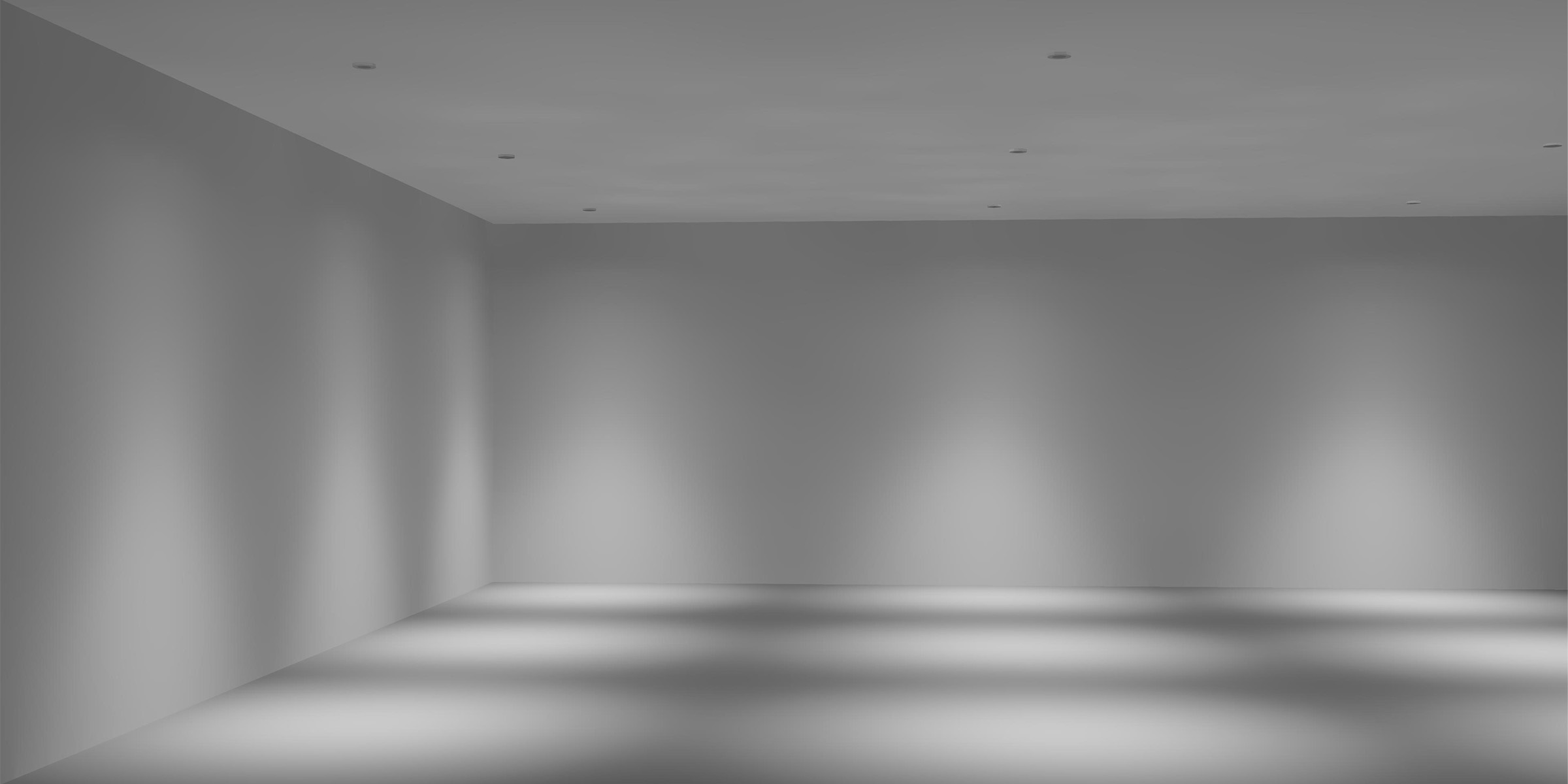

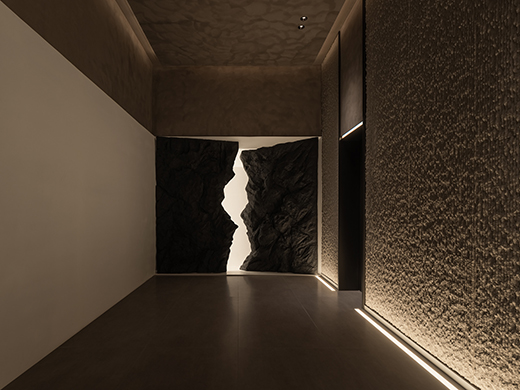

Applicable Instructions for 27° Illumination
This is an angle suitable for basic lighting，

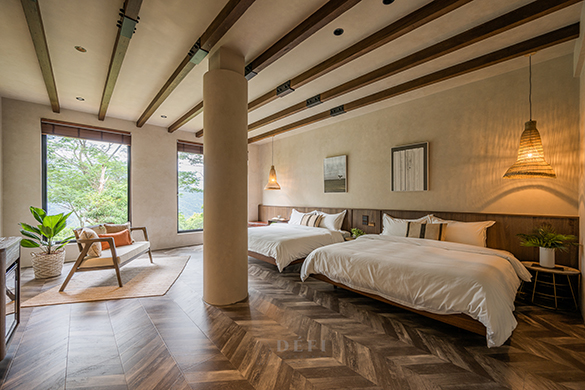

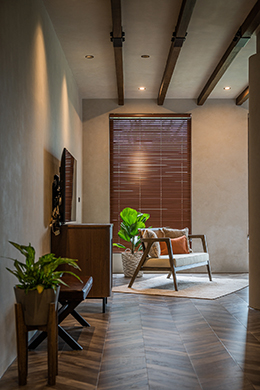

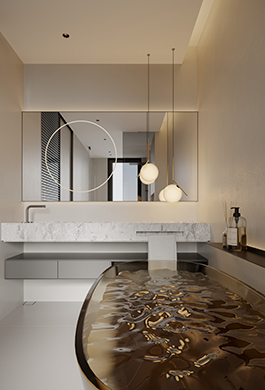

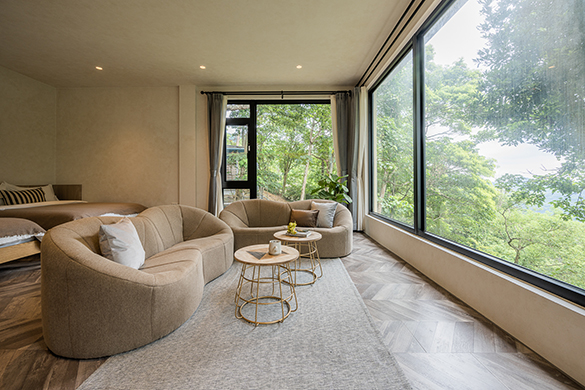

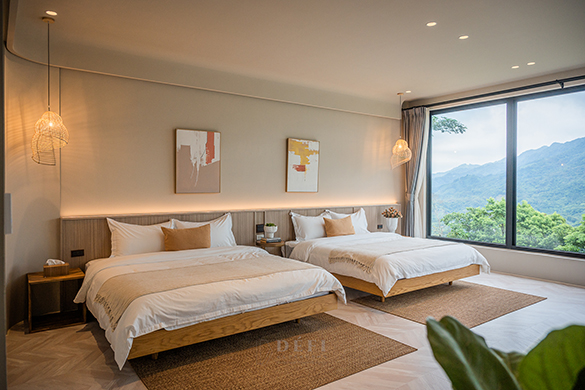

It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
