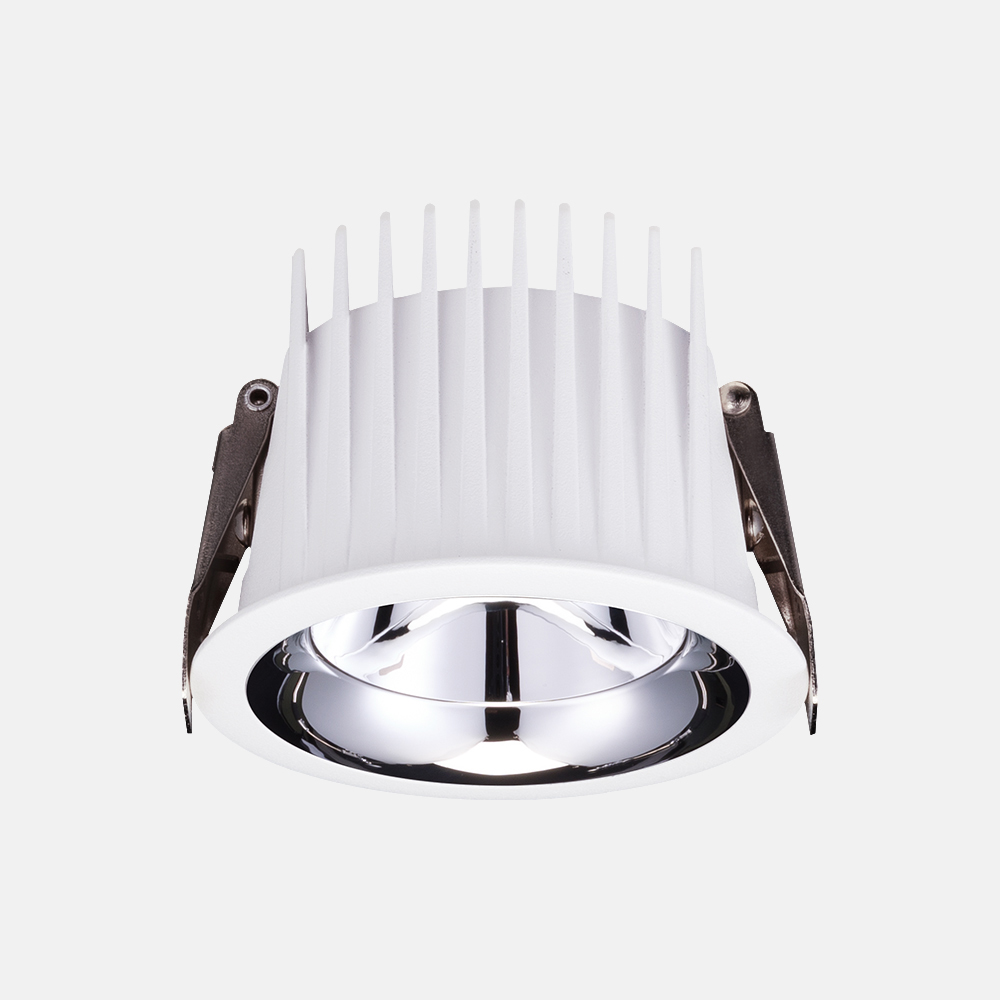

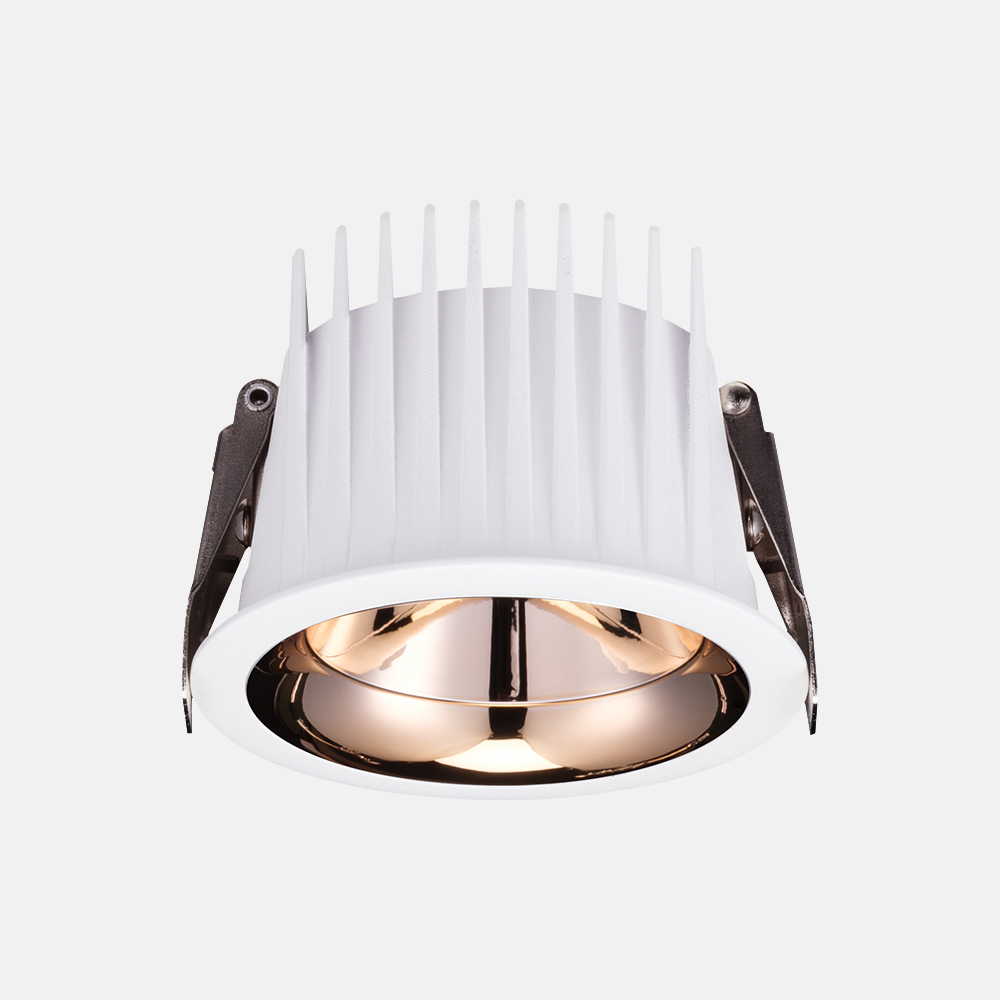

A01_Reflex III_Recessed ceiling light_Products

/ Products / Recessed ceiling light / Reflex III

Specification

01.222A01000

Power：6W/8W/10W

Installation method：Recessed

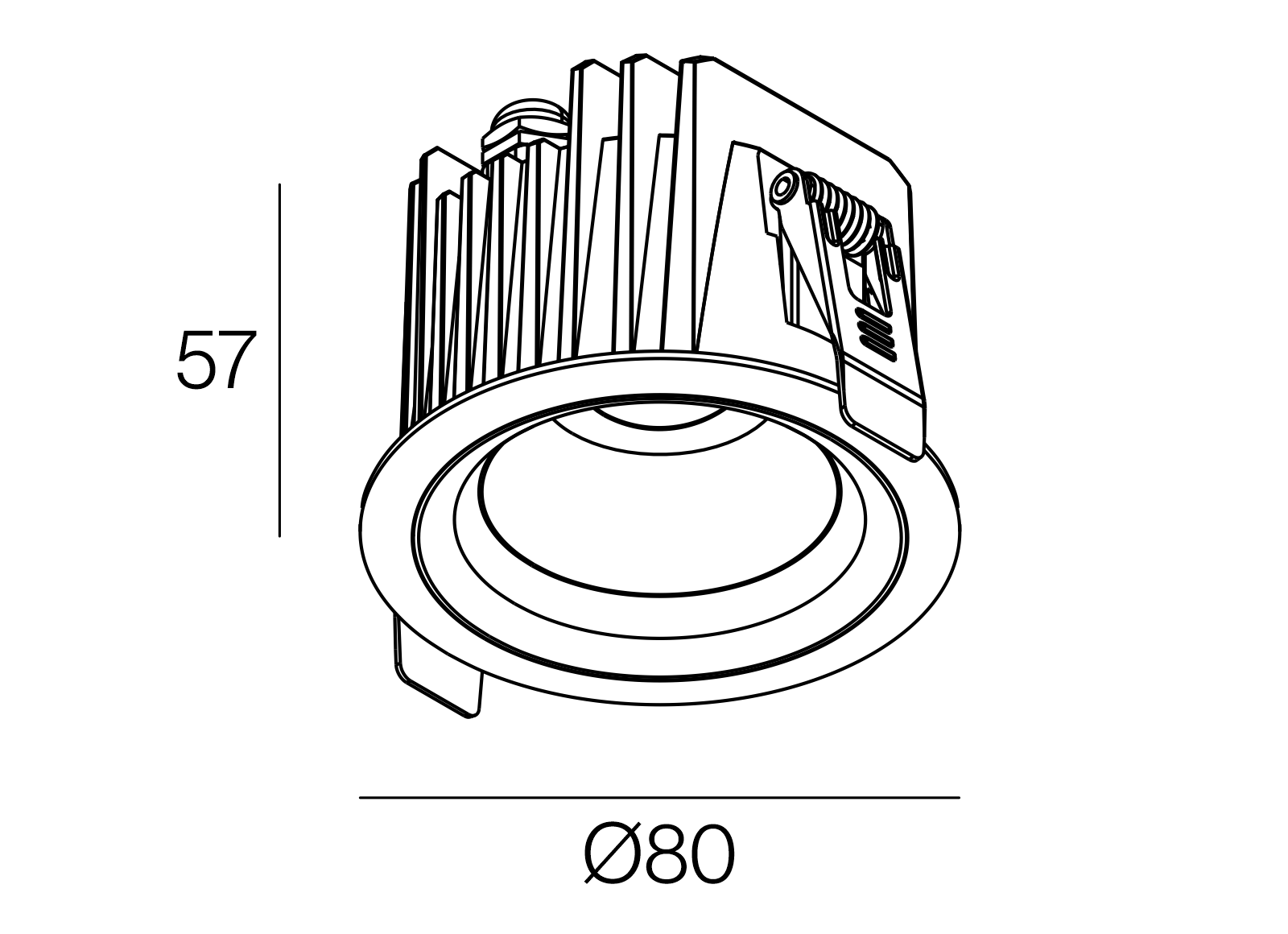

Cut out：φ75mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：88 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：NO

Light distribution：Direct

Beam angle：16°/25°/33°/50°

Ingress protection：IP65

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

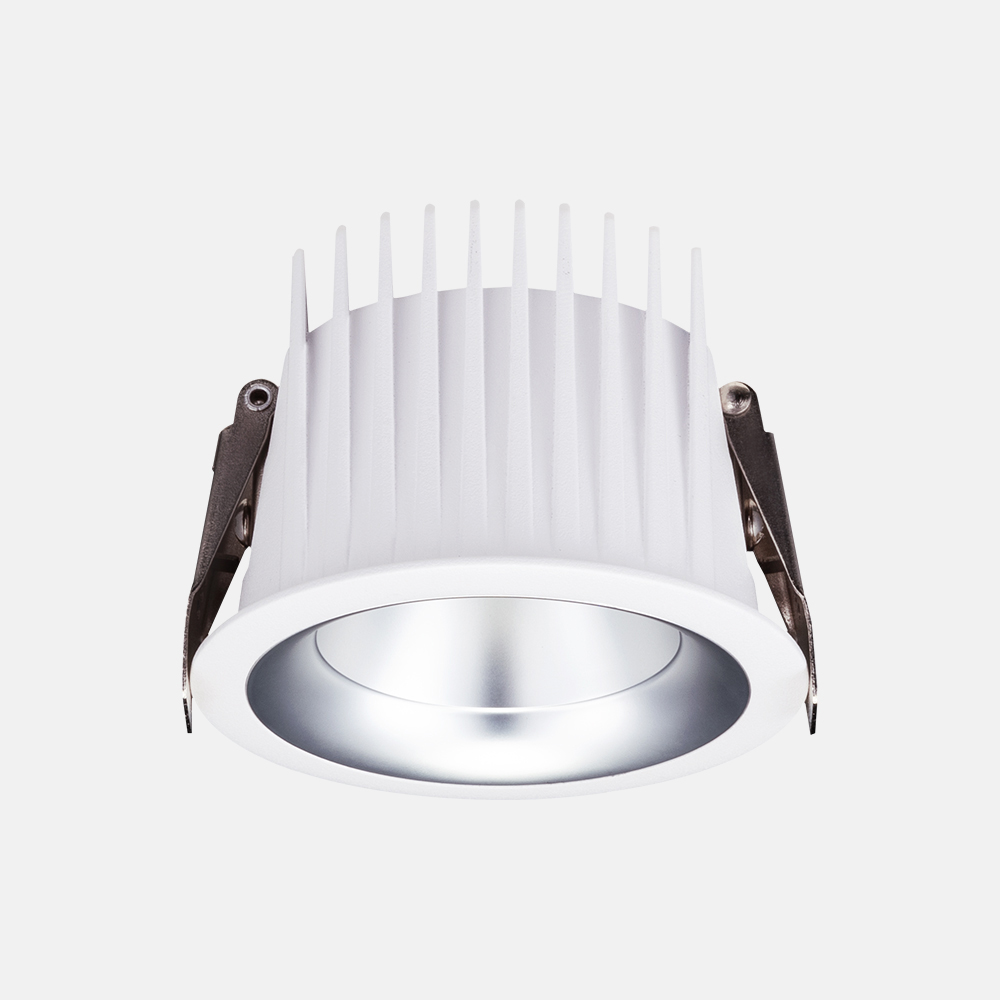

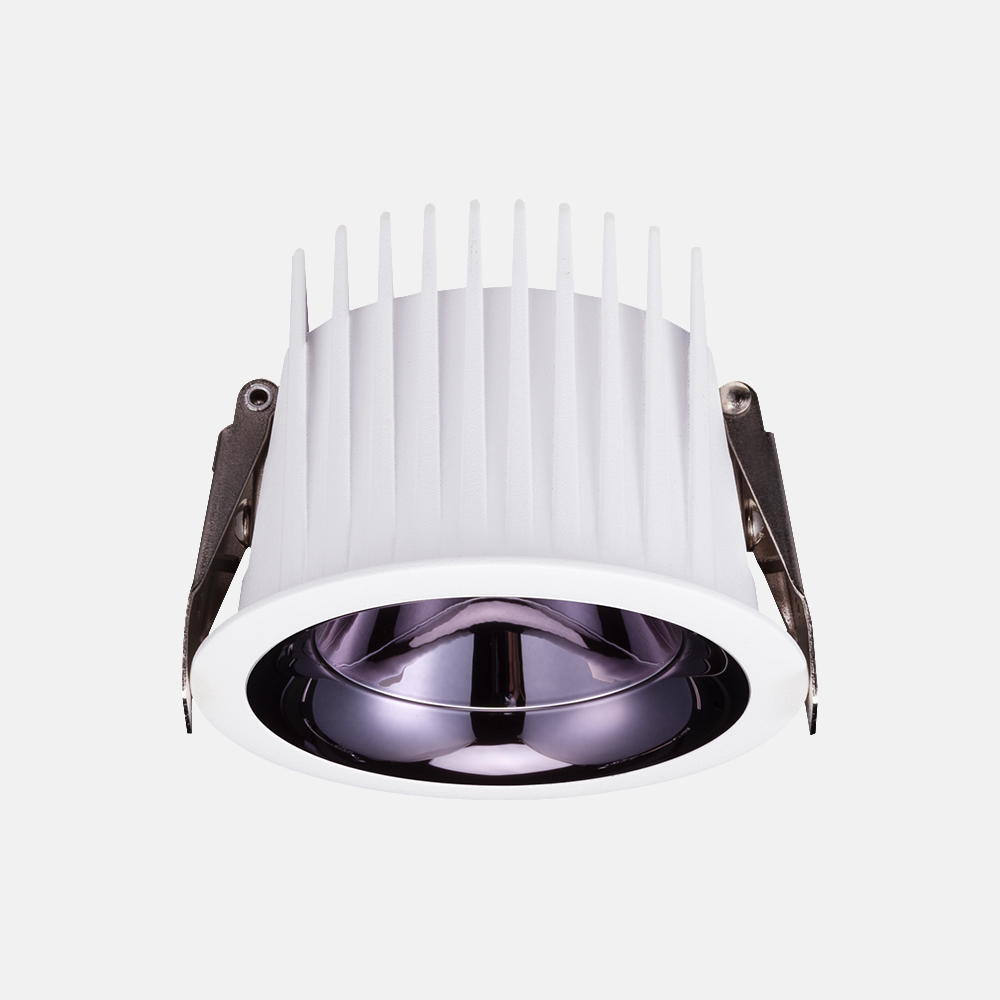

White+Bright Silver

White + Gun Black

White

Gold

Accessories
Download

IES LDT Specifications Drawings Installation instructions

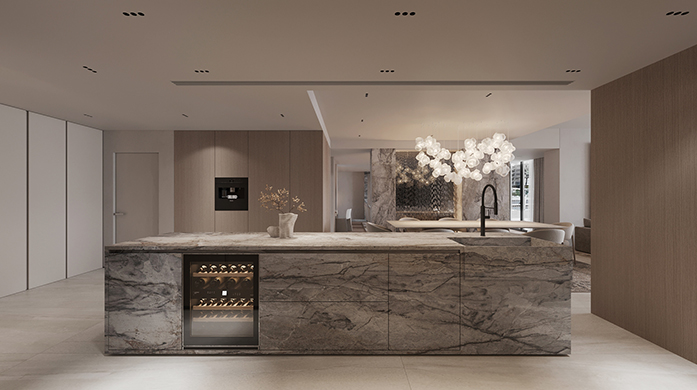

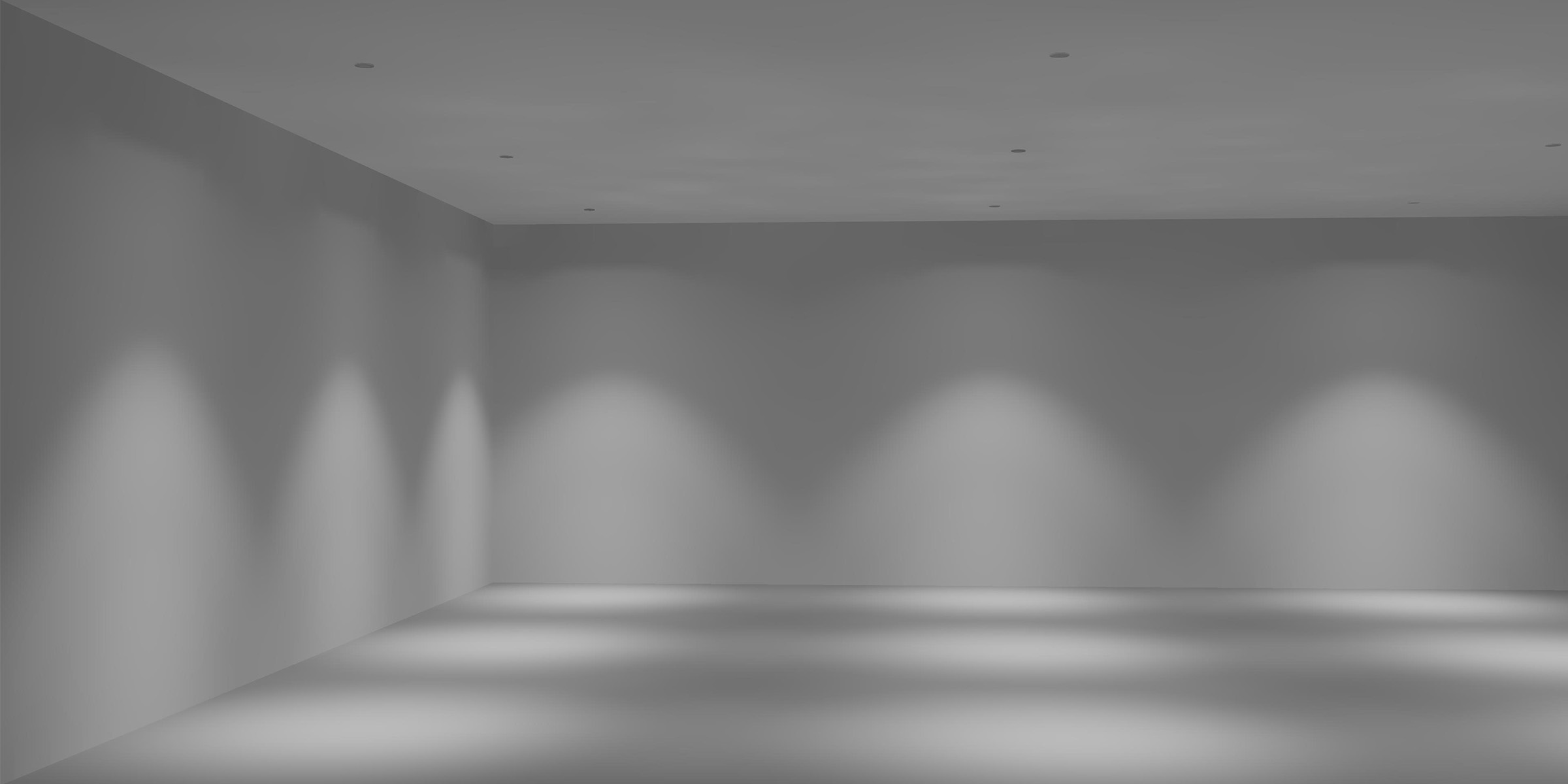

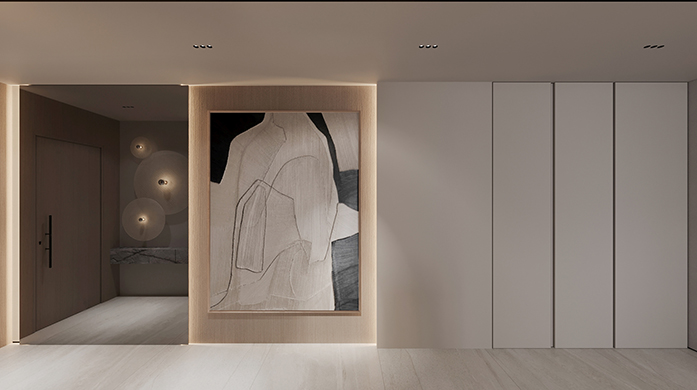

Scenes

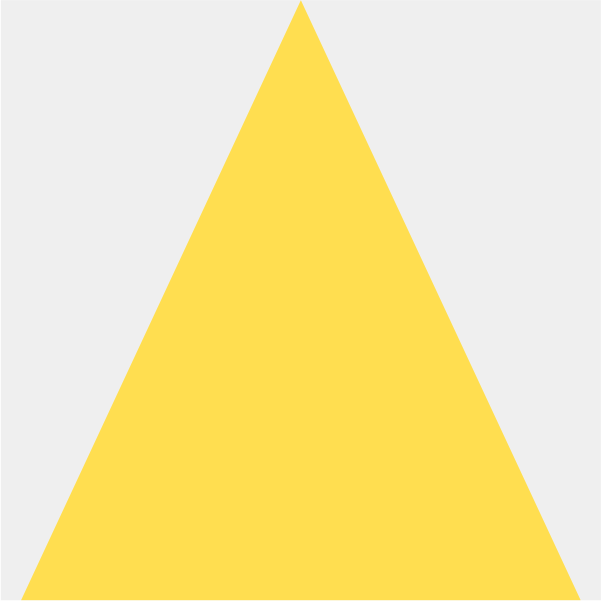

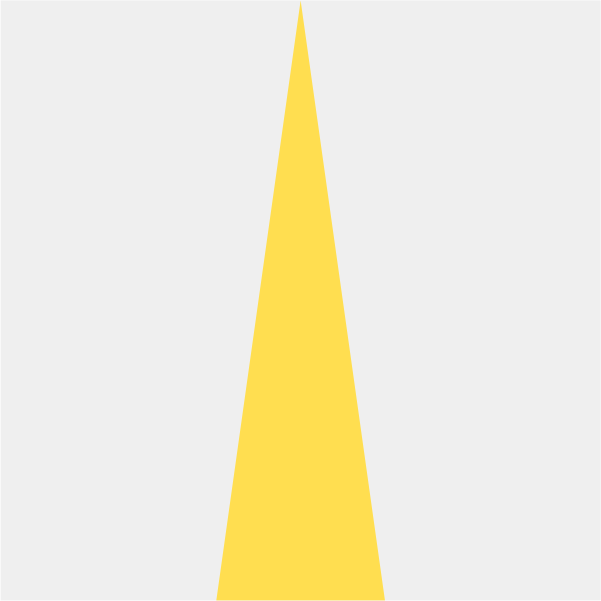

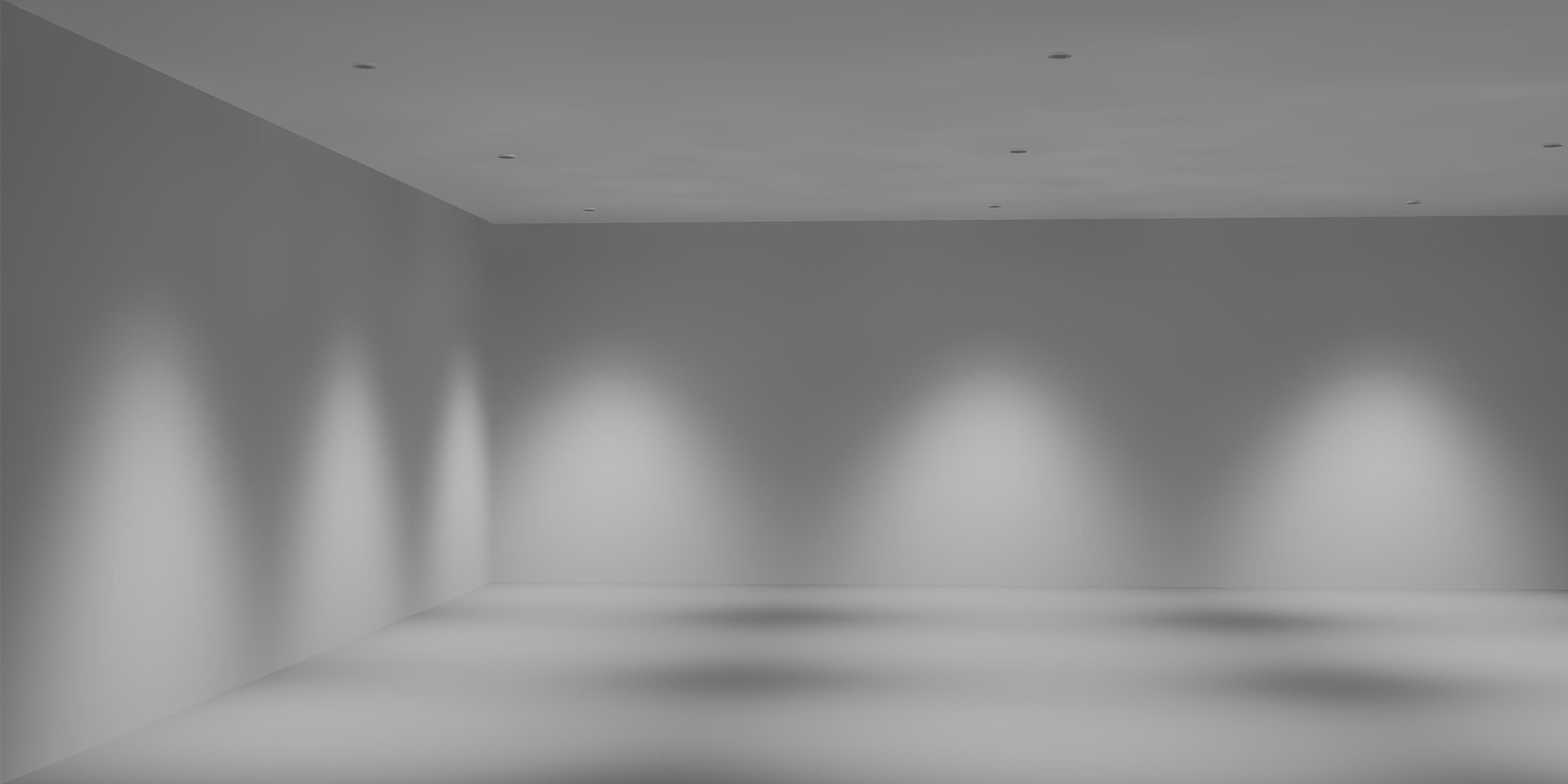

Beam angle

16°

25°

33°

50°

Applicable Instructions for 16° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 25° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 33° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 50° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products

Lattice01.01A03R

Black

grown

blue

red

gray

This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.

Specification

Power

56W

Installation method

Built-in/surface mounted

Frequency

50/60Hz

CCT

2700K

CRI

>90

SDCM

LED

COB

lP65

LED life Time

>50,000h - L80 - B10 (Ta 25°C)

Lunmen

549LM

Beam angle

15°

Adjustibility

>NO

Dimmable

Non-DIM

Material

Aluminum

Accessories

Track rail

Voltage：48V-256V

Size：1000*19*10

10.M19A10000

Track rail

Voltage：48V-256V

Size：1000*19*10

10.M19A10000
Download

Installation Notes Technical data 3D/DWG IES LTD

PRODUCT FEATURES

- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
