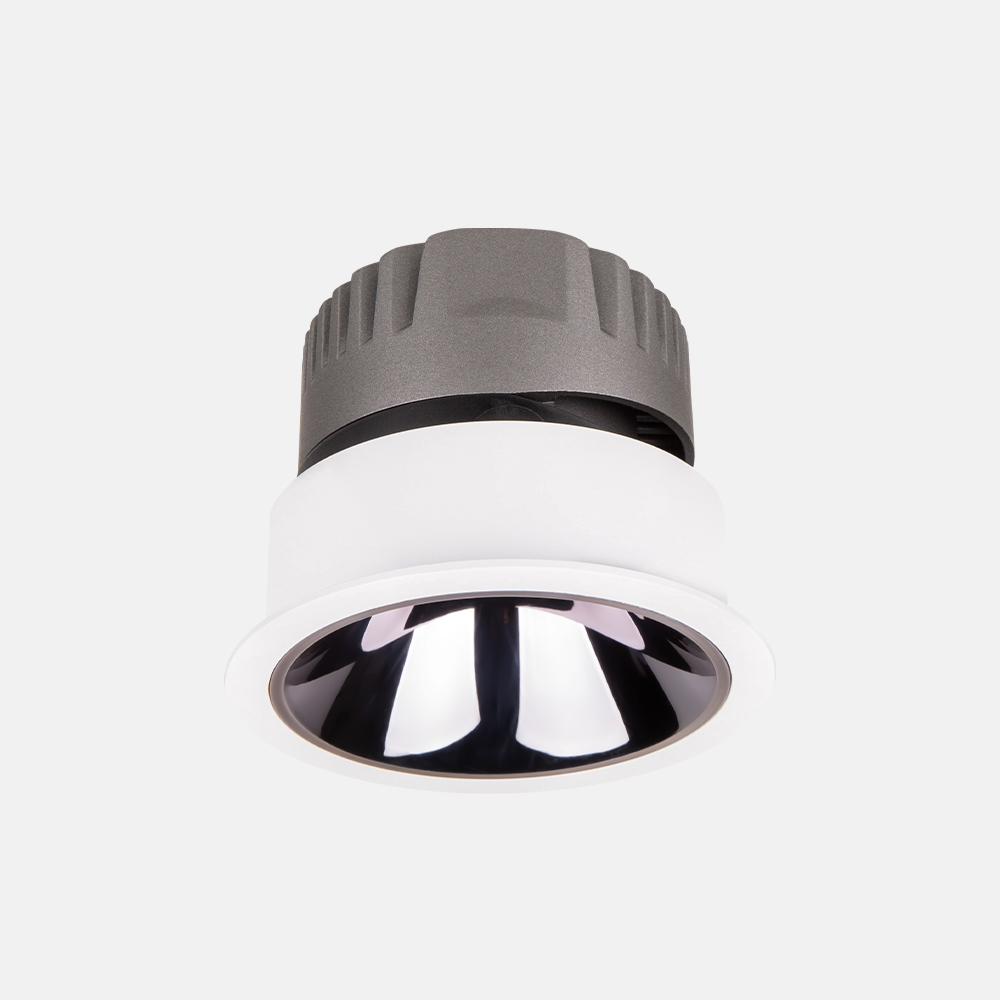

A02_Boost_Recessed ceiling light_Products

/ Products / Recessed ceiling light / Boost

Specification

01.210A02R00

Power：6W/8W/10W

Installation method：Recessed

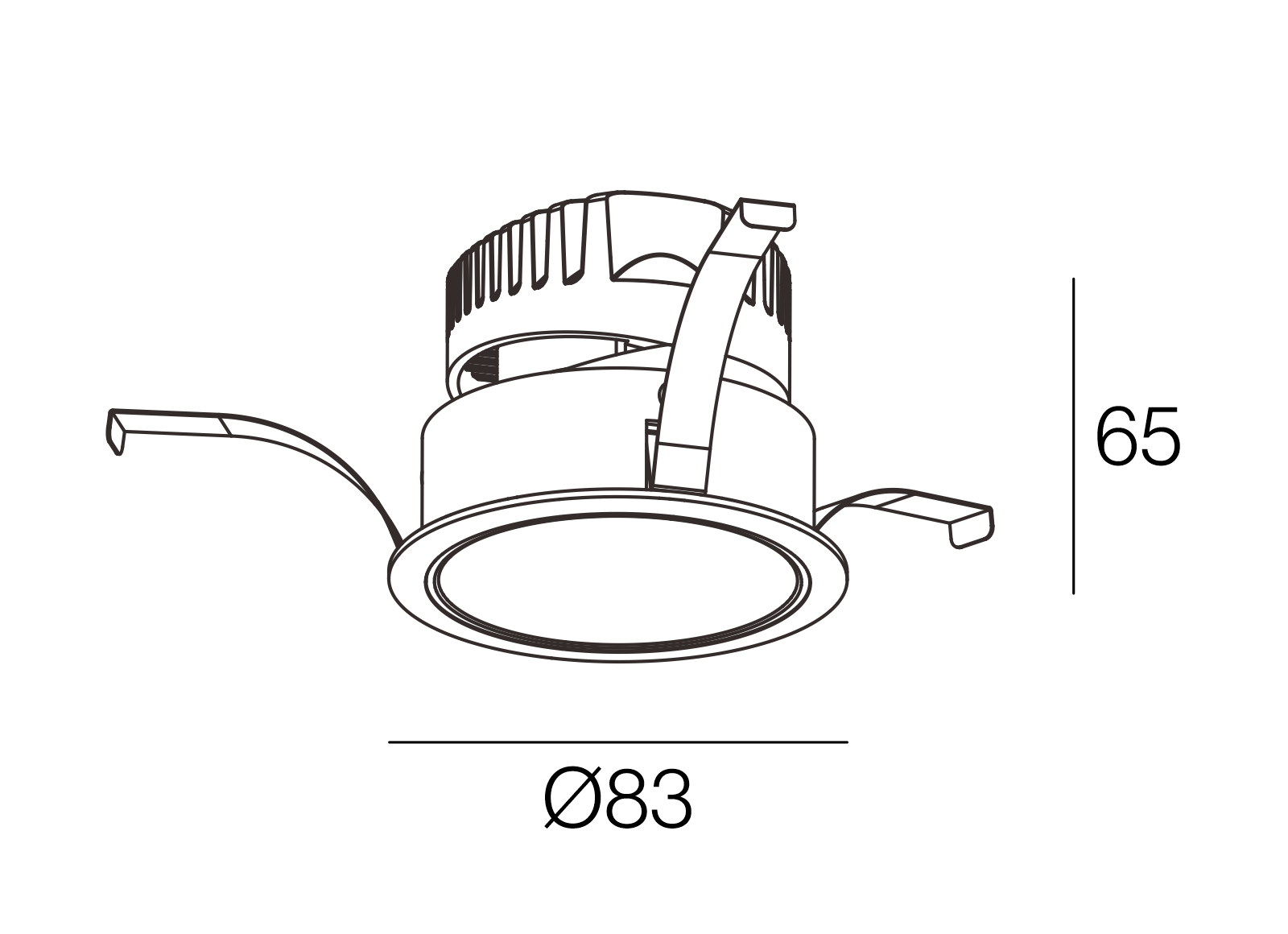

Cut out：φ75mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：74 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：＞90

SDCM：＜3

Adjustibility：355° Rotation | 20° Tilting

Light distribution：Direct

UGR：＜10

Beam angle：20°/26°/31°/50°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

White+Bright Silver

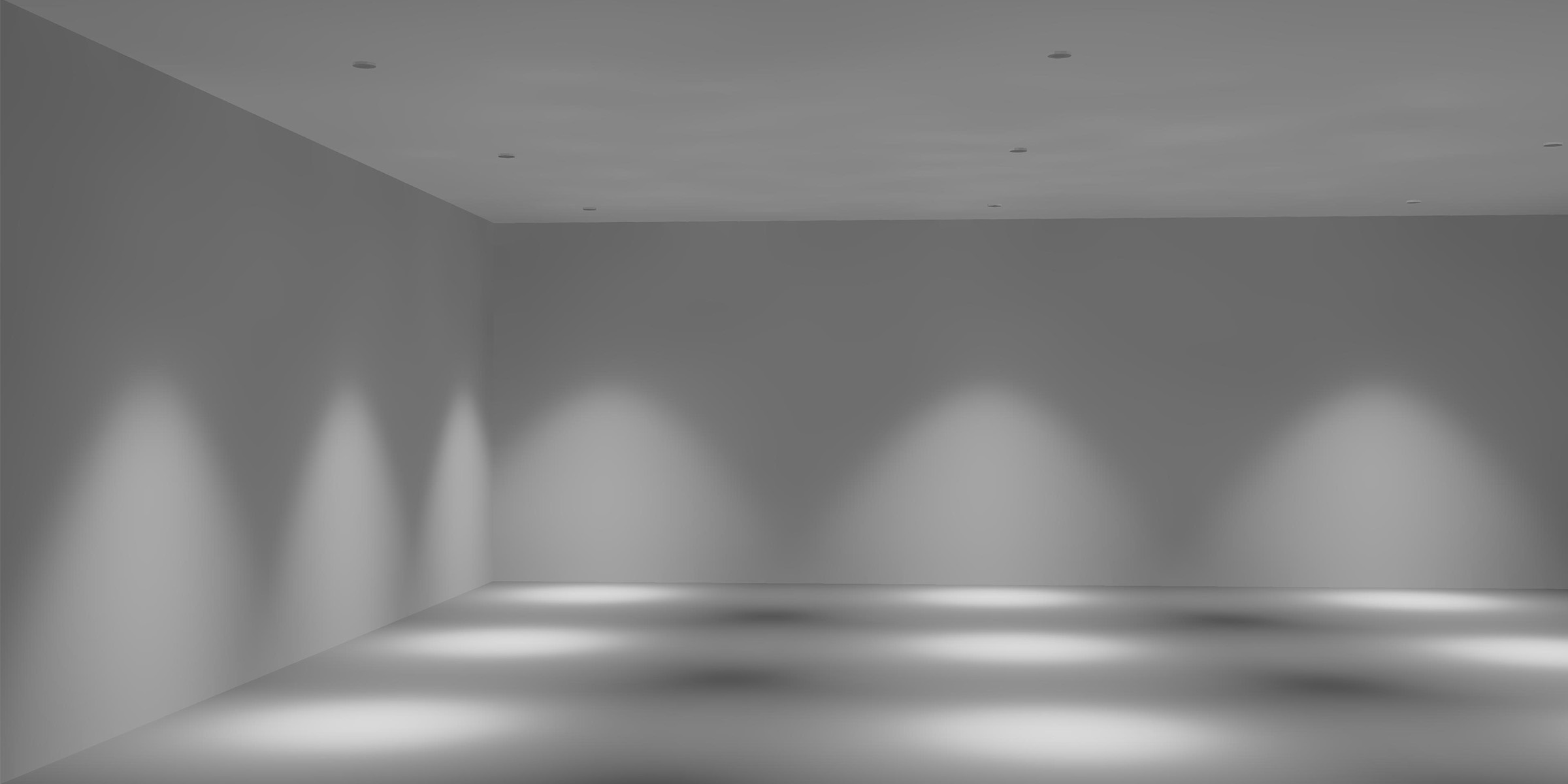

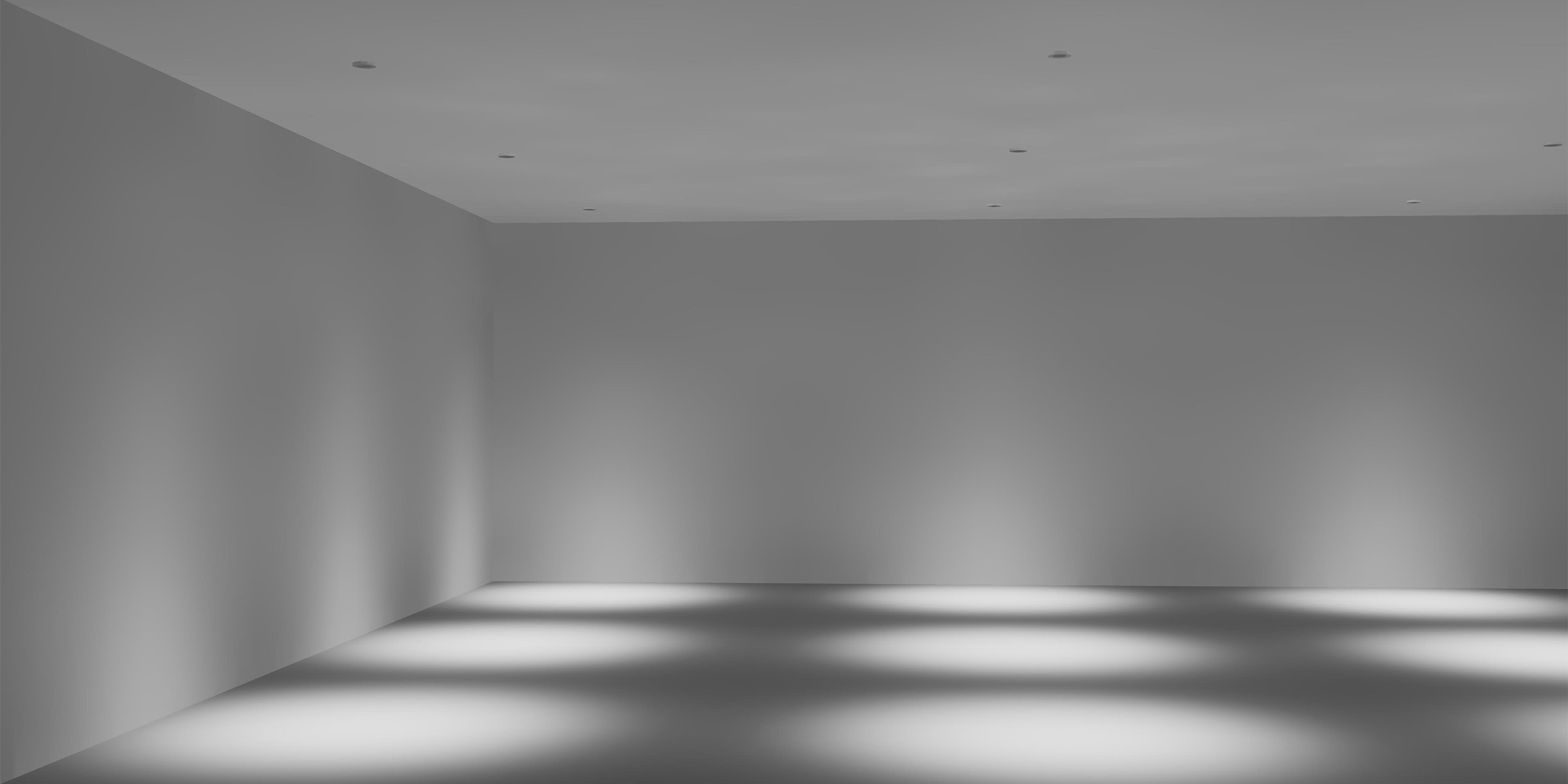

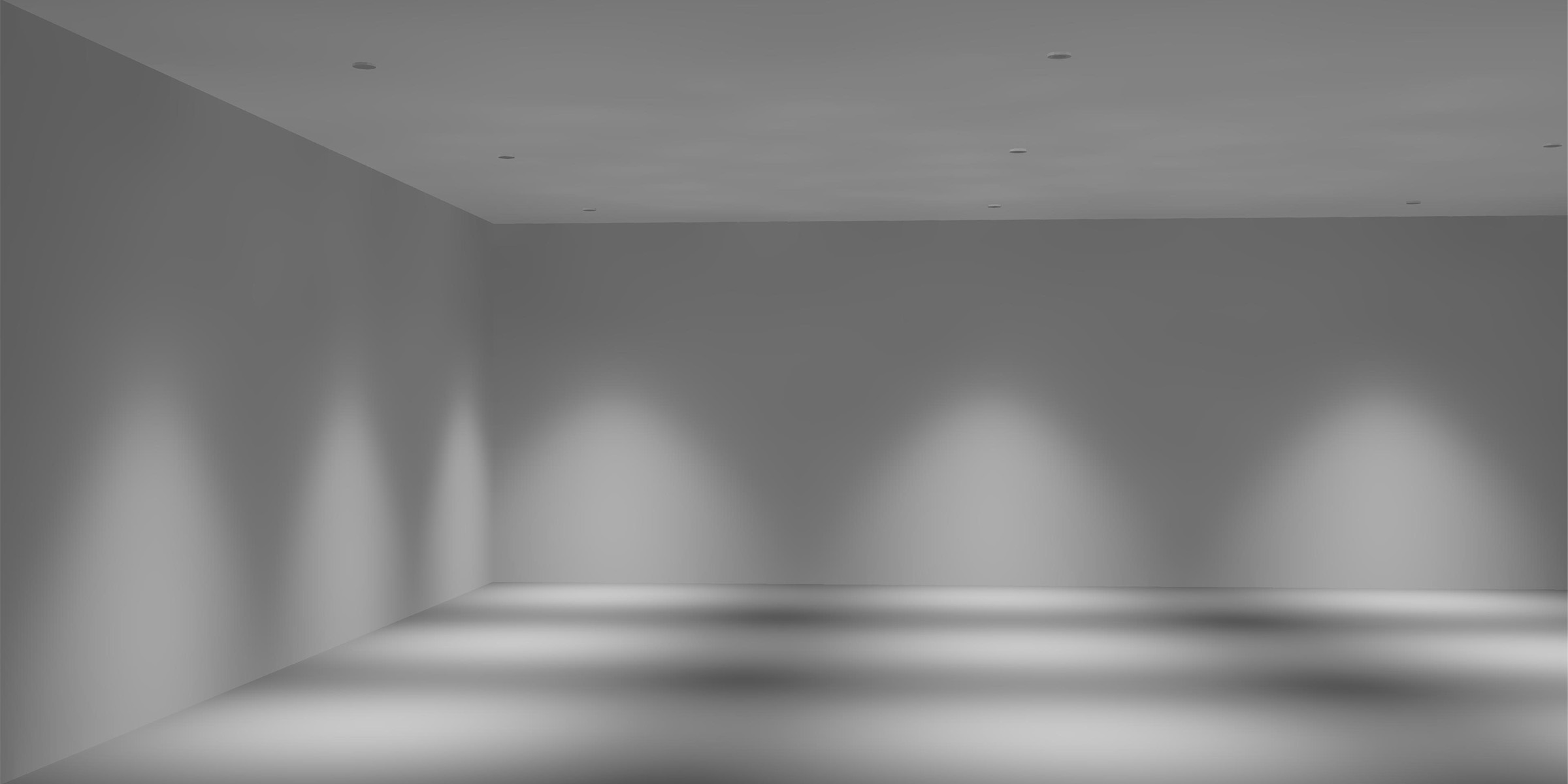

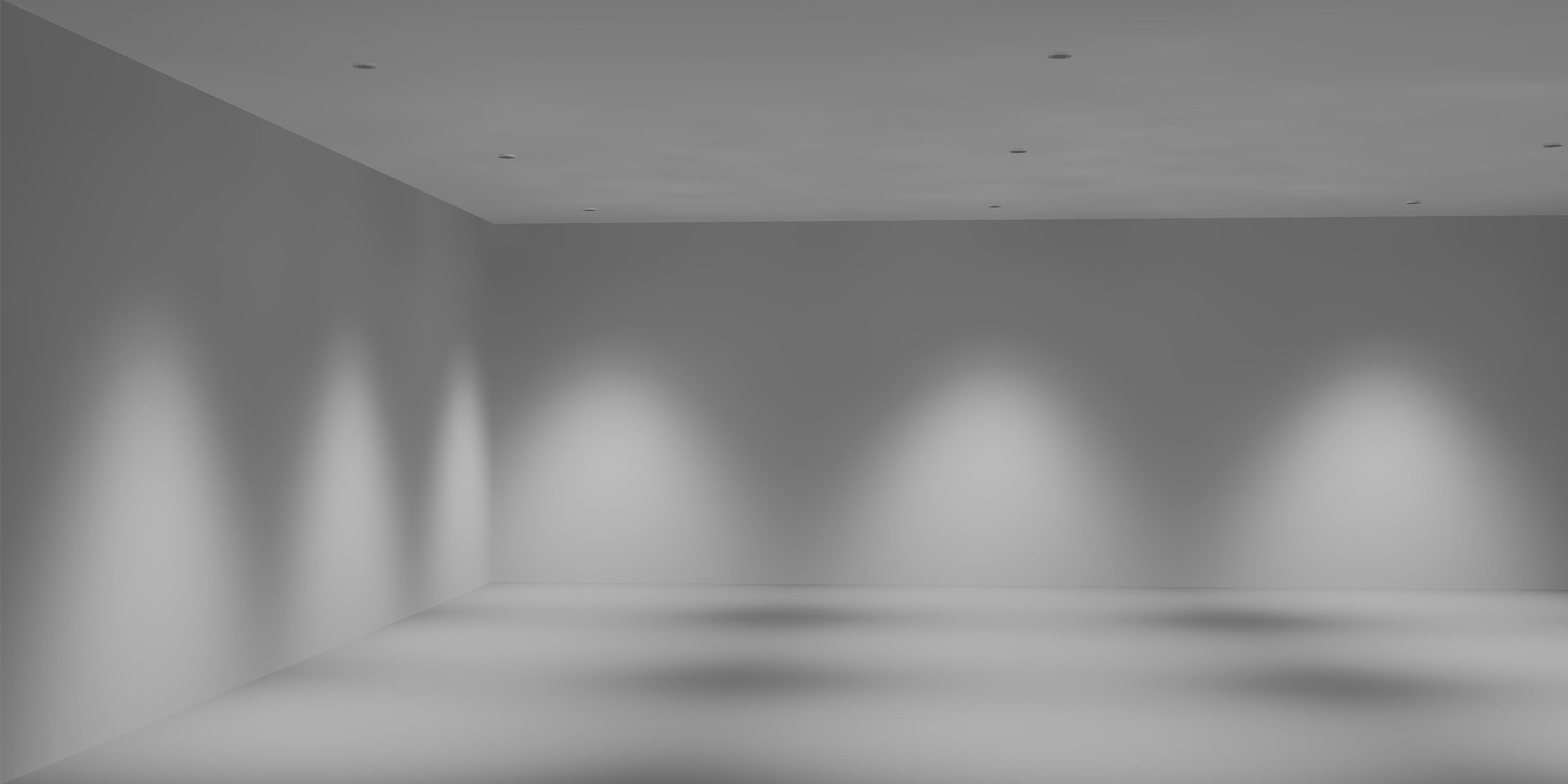

Scenes

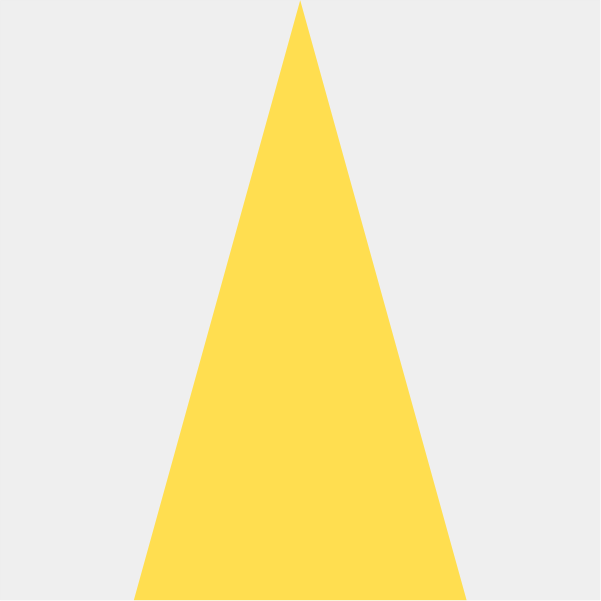

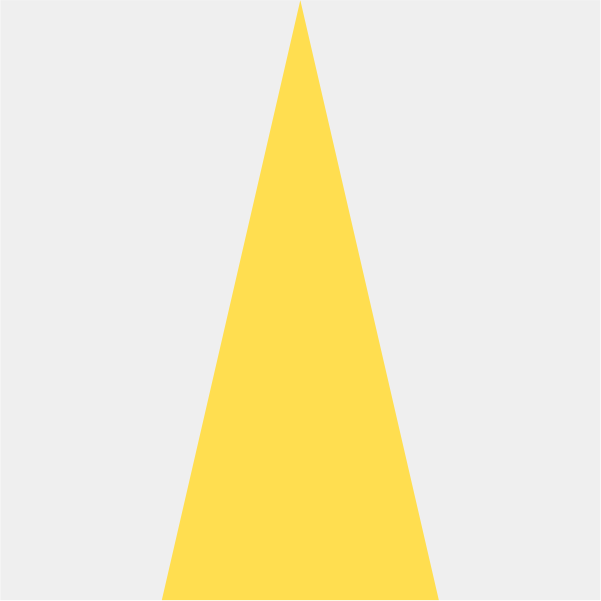

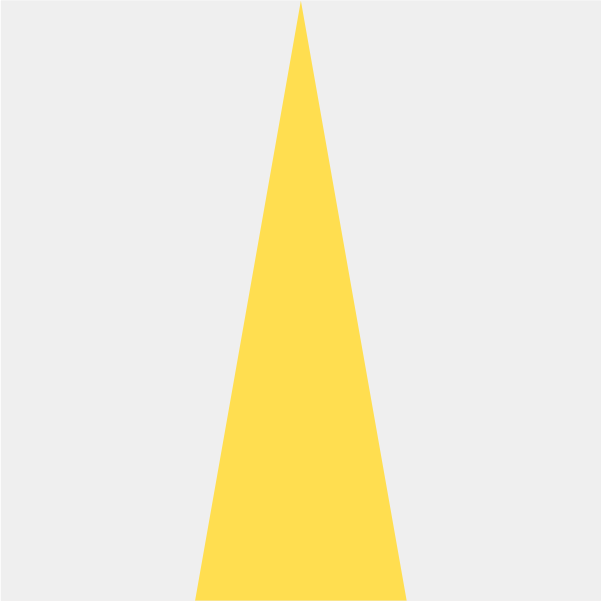

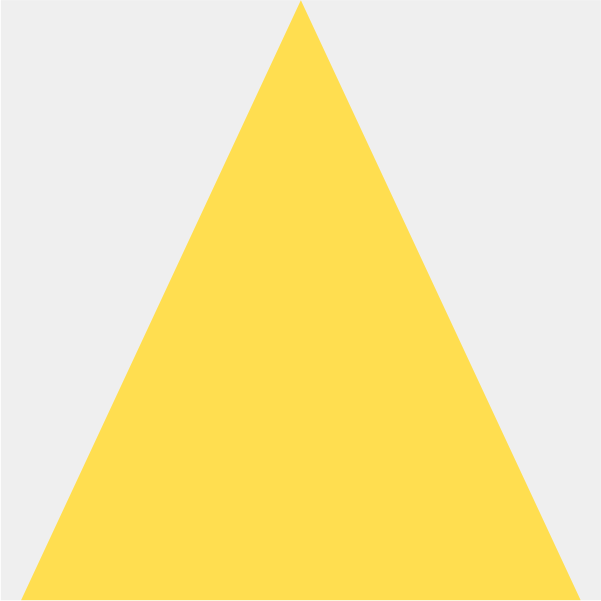

Beam angle

20°

26°

31°

50°

Applicable Instructions for 20° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 26° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 31° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 50° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
