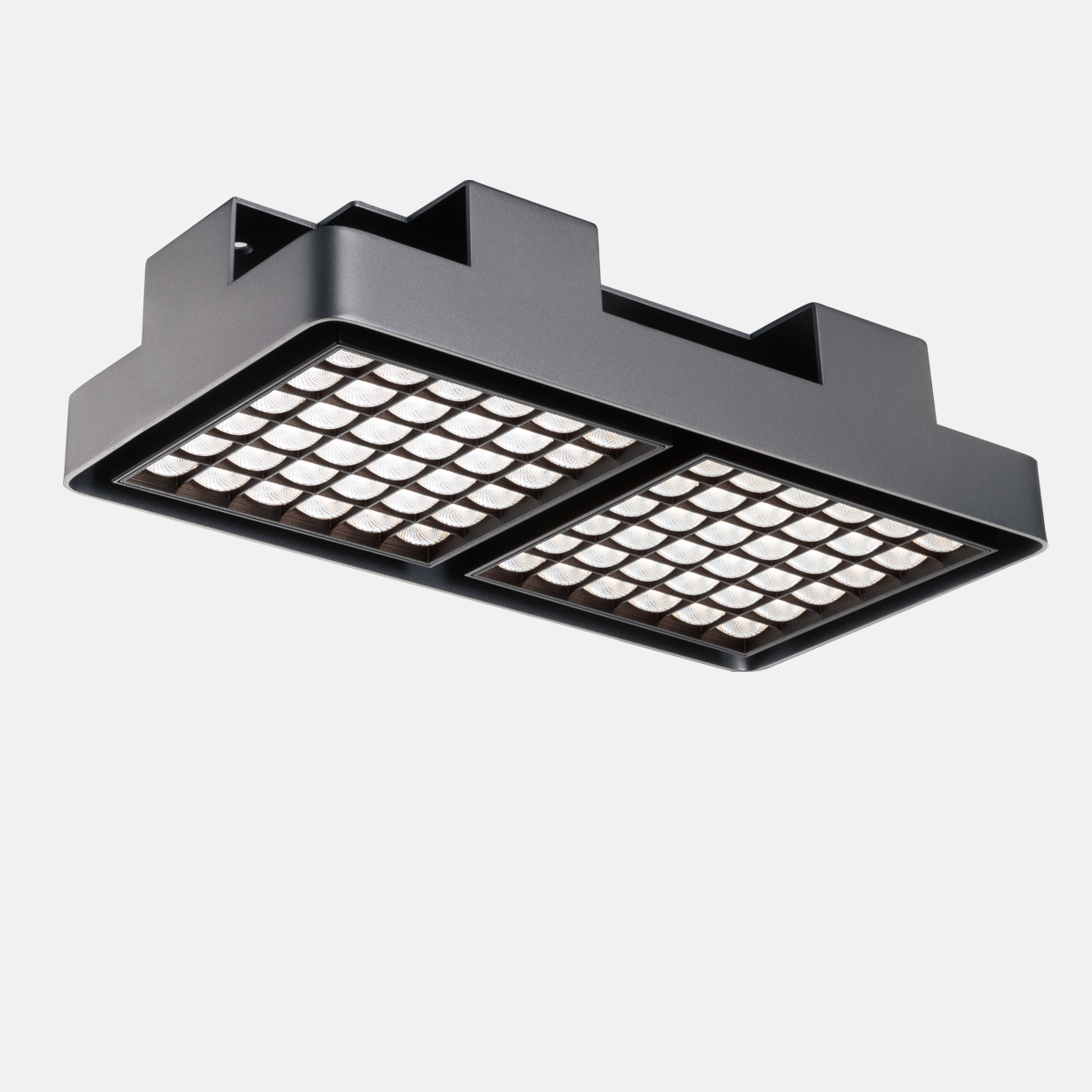

Matrix Pro
MT1120

A refined lighting solution designed to enhance commercial spaces with

precision and style. Available in configurations from one to three heads in various

shapes, this fixture offers a versatile approach to meet diverse lighting needs.

With an exceptionally low Unified Glare Rating (UGR) and deep anti-glare design,

Matrix Pro ensures a comfortable visual environment by reducing direct glare,

ideal for settings like clothing stores. Its adaptable mounting options allow for

either surface or recessed installation, seamlessly integrating into any space.

Thanks to its six-axis adjustability, Matrix Pro can be oriented with remarkable

flexibility to highlight specific areas or displays, delivering targeted illumination

that truly enhances the visual appeal of any retail environment.

Specification

MT1120

03.207A02000

Power:2*20W

Installation method:Ceiling

Cut out:φ55mm*2

Options:Non-dim,  Phase dim,  0/1-10V,  DALI,  Bluetooth,  ZigBee

Frequency:50/60Hz

LED chip:SMD

Light efficiency:98 lm/W

CCT:2700K/3000K/3500K/4000K

CRI:≥90

SDCM:<3

Adjustibility:25° Tilting

Light distribution:Direct

Beam angle:20°/36°

Ingress protection:IP20

Material:Aluminum

Operating temperature:-25°C~50°C

Rated life hours:35,000h~50,000h  LM80

Scenes
Beam angle
Filter products
Lattice01.01A03R
This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
