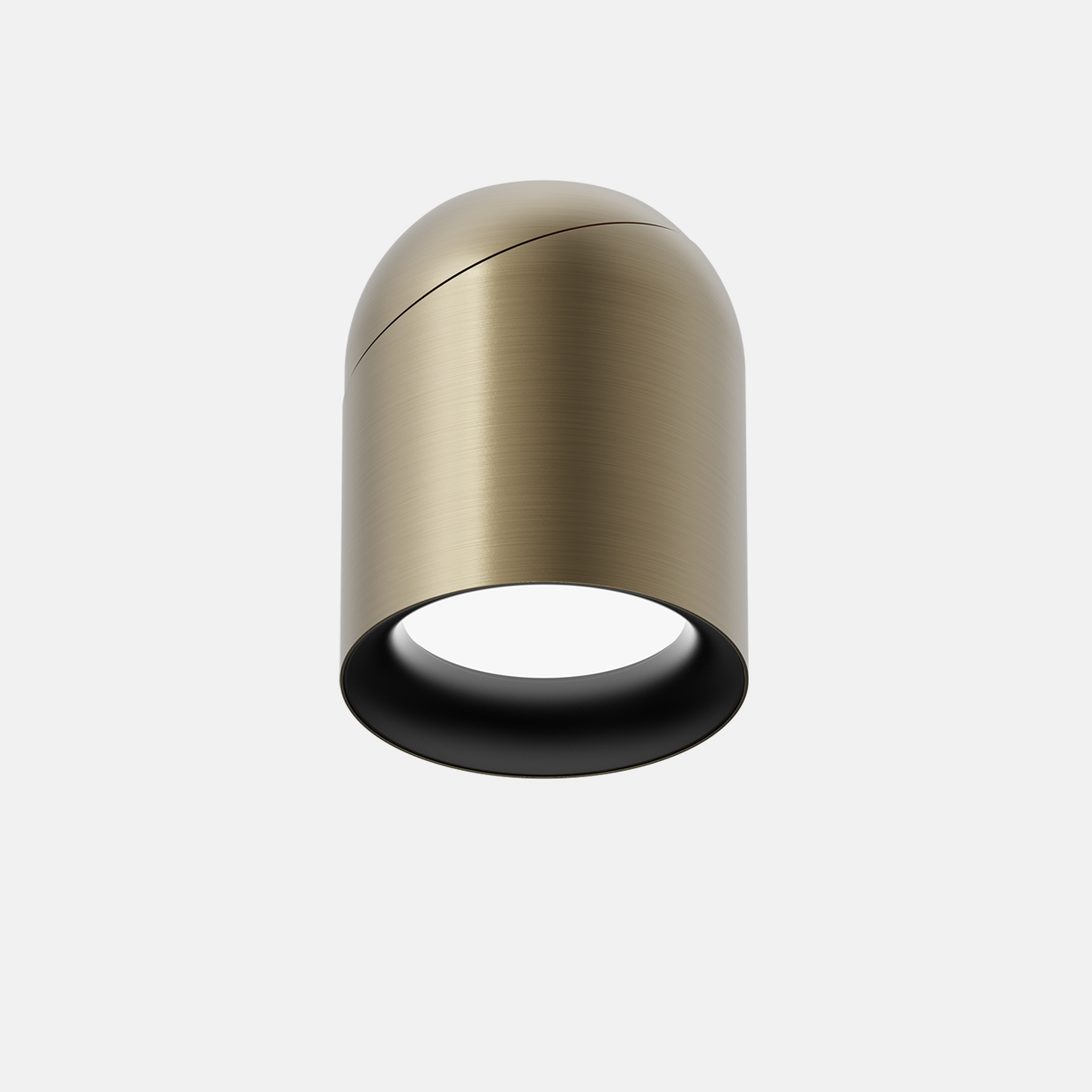

Orbit

RB0115

Unveiling Orbit—where cutting-edge design meets ultimate versatility.

This surface-mounted marvel redefines lighting control, allowing you to shape light

with precision for dramatic accents or soft, ambient layers that transform any room.

Crafted from premium materials and available in a range of luxurious finishes,

Orbit is not just a fixture; it's a statement in sophistication and innovation.

Step into the future of architectural lighting and elevate your space with unparalleled

style and function.

/ Products / Surface mounted ceiling light / Orbit

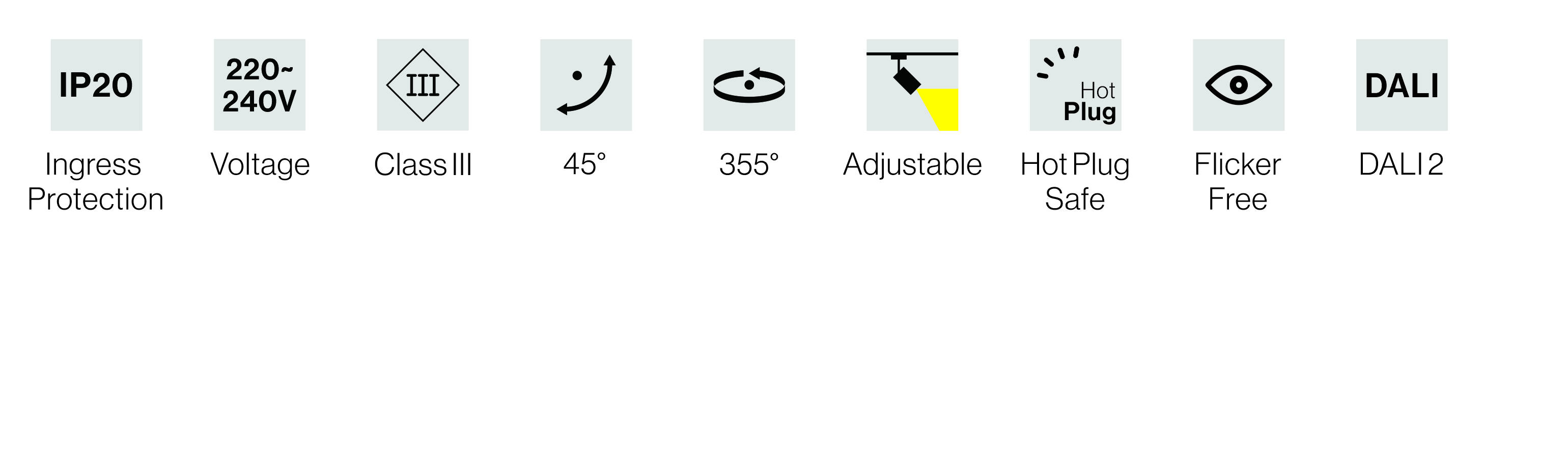

Specification

RB0115

03.208A02000

Power：15W

Installation method：Ceiling

Cut out：No

Options：Non-dim, Phase dim, 0/1-10V, DALI2

Frequency：50/60Hz

LED chip：COB

Light efficiency：100 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：45° Tilting

Light distribution：Direct

Beam angle：15°/22°/36°/54°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

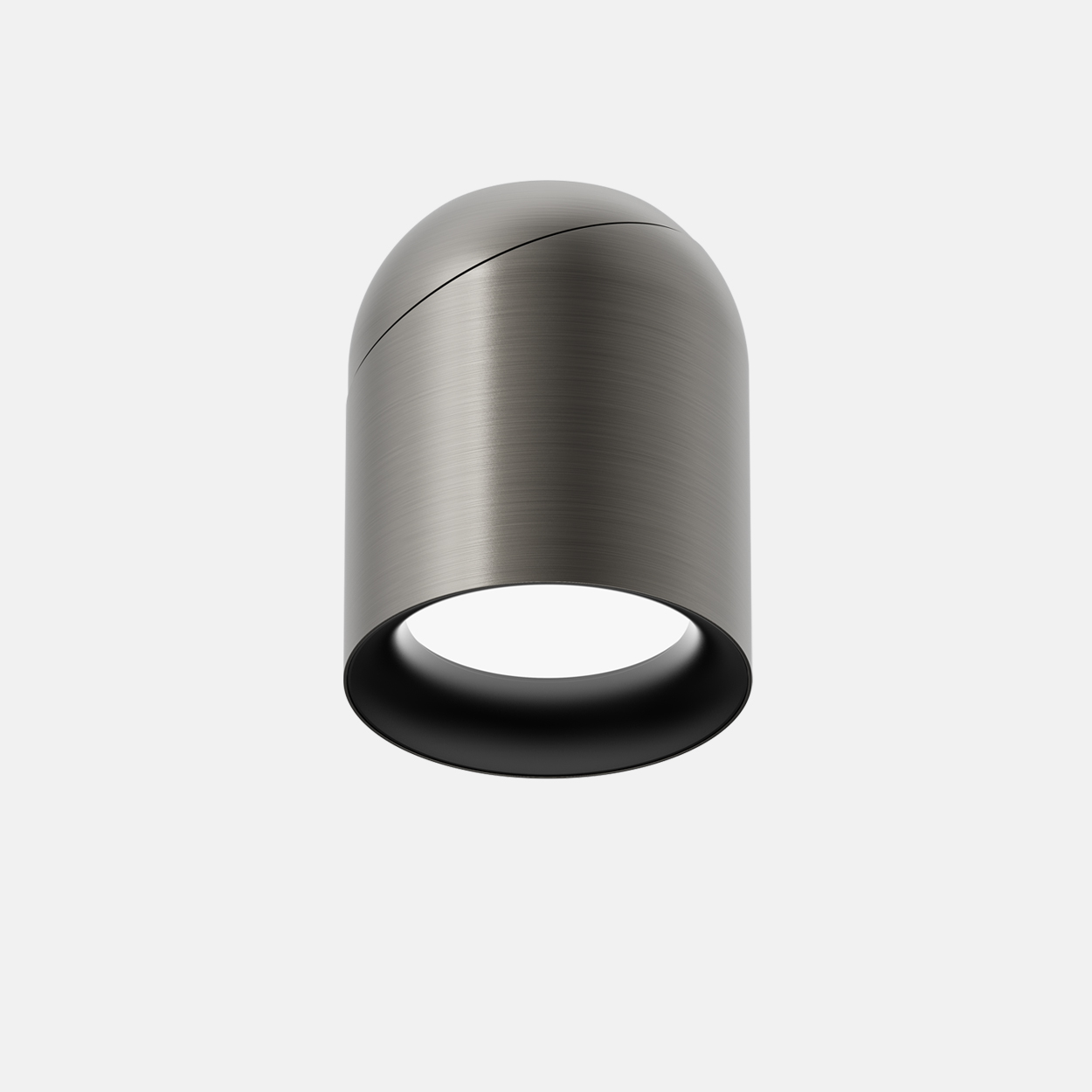

Brushed steel

Brushed bronze

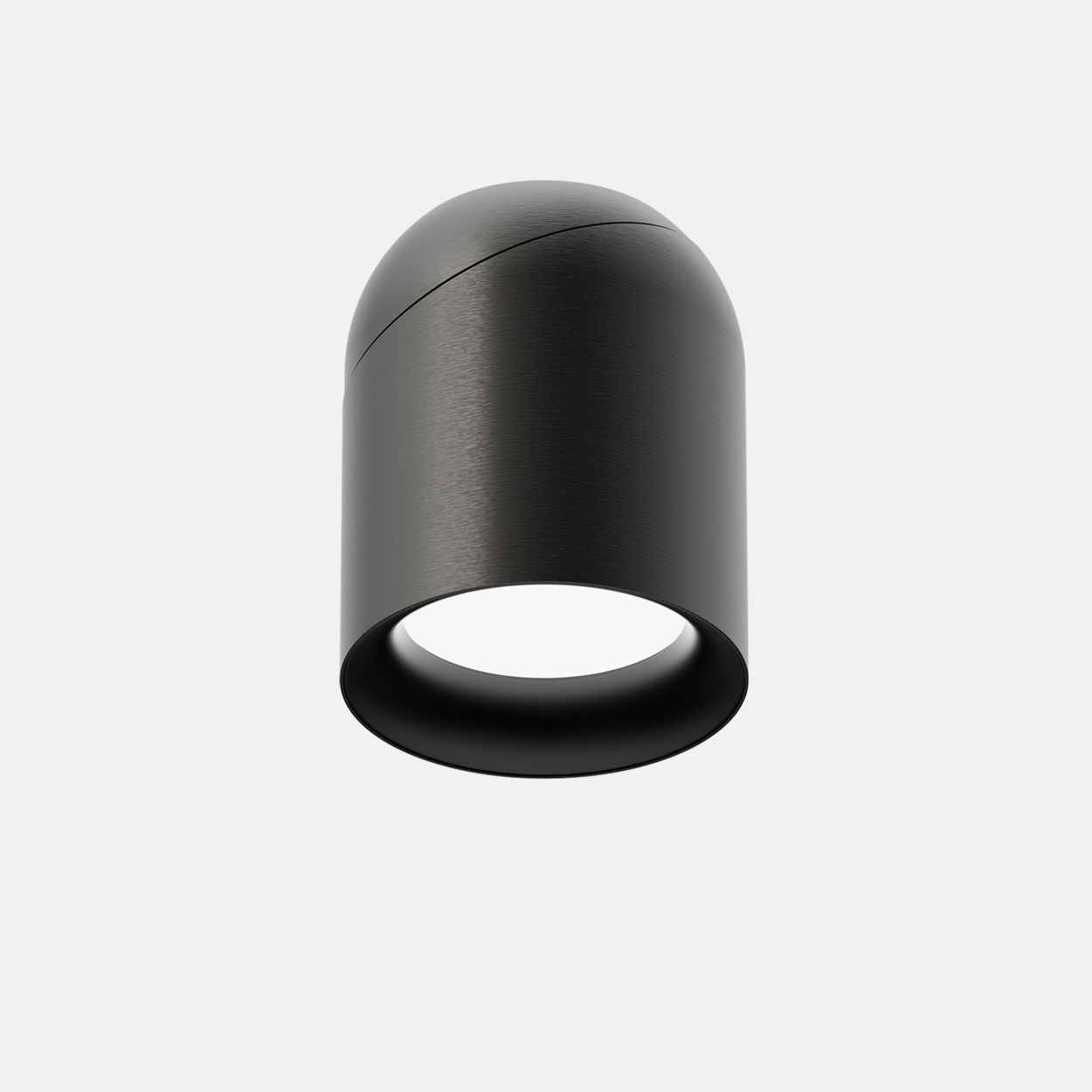

Brushed anthracite

Brushed copper

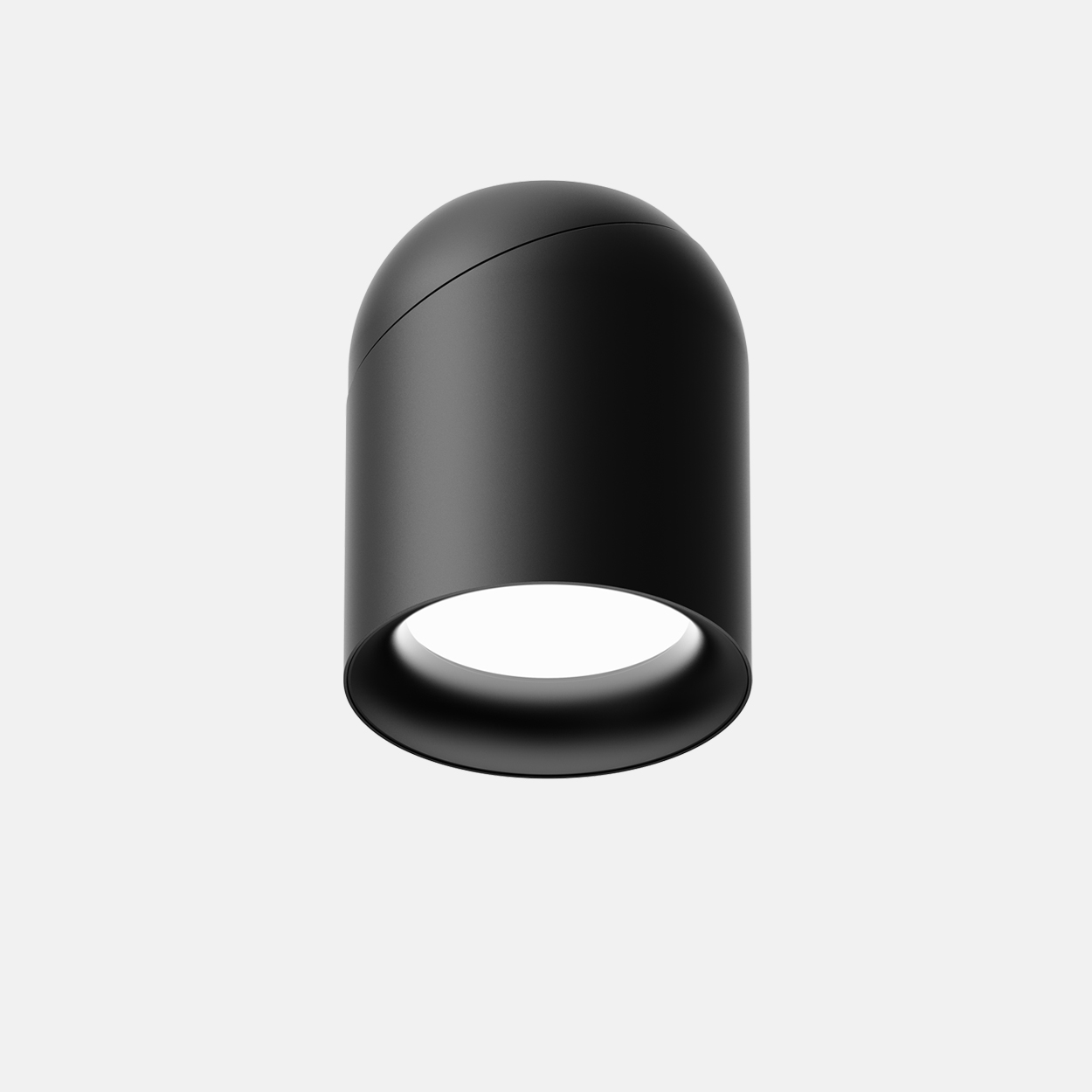

Black

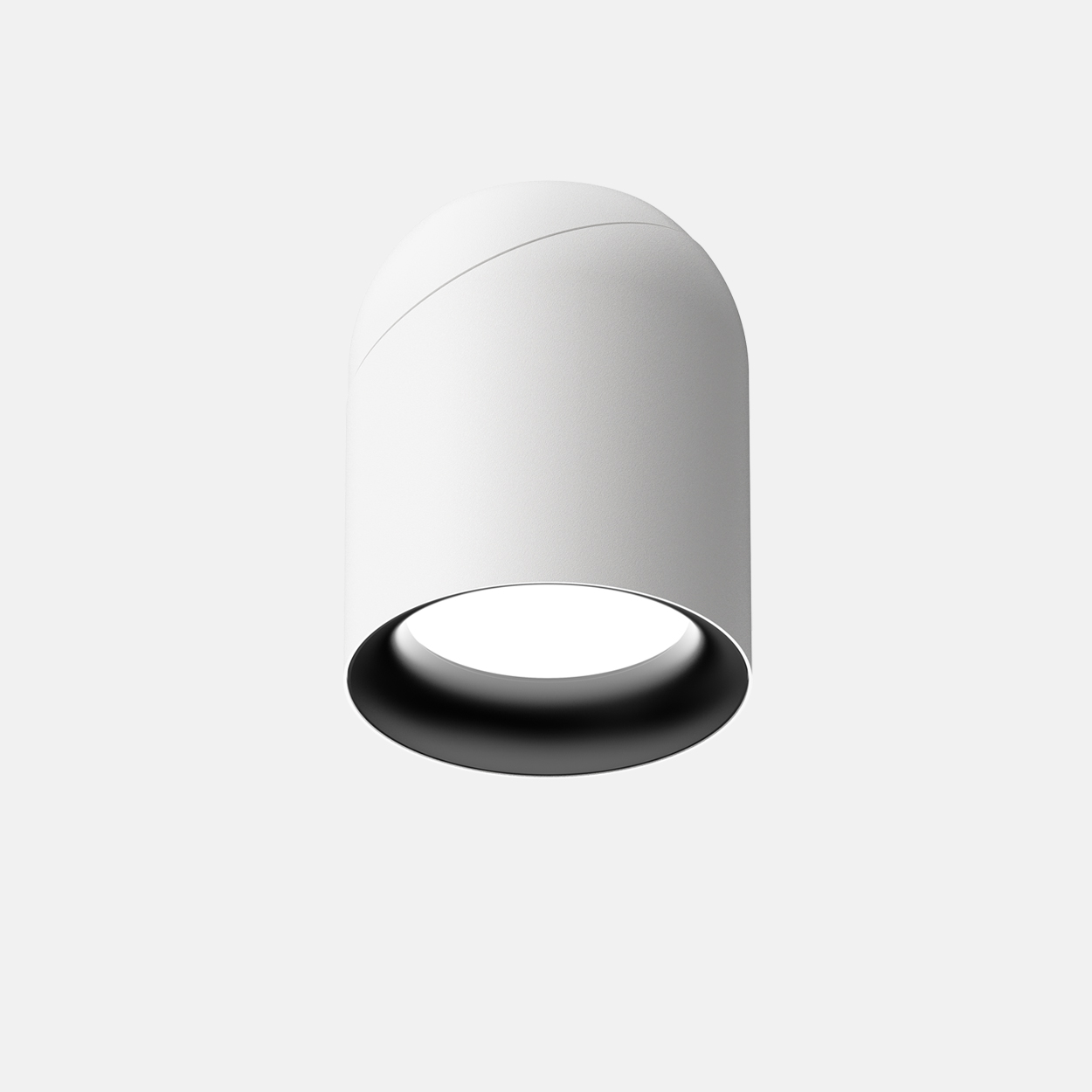

White

Accessories
Download

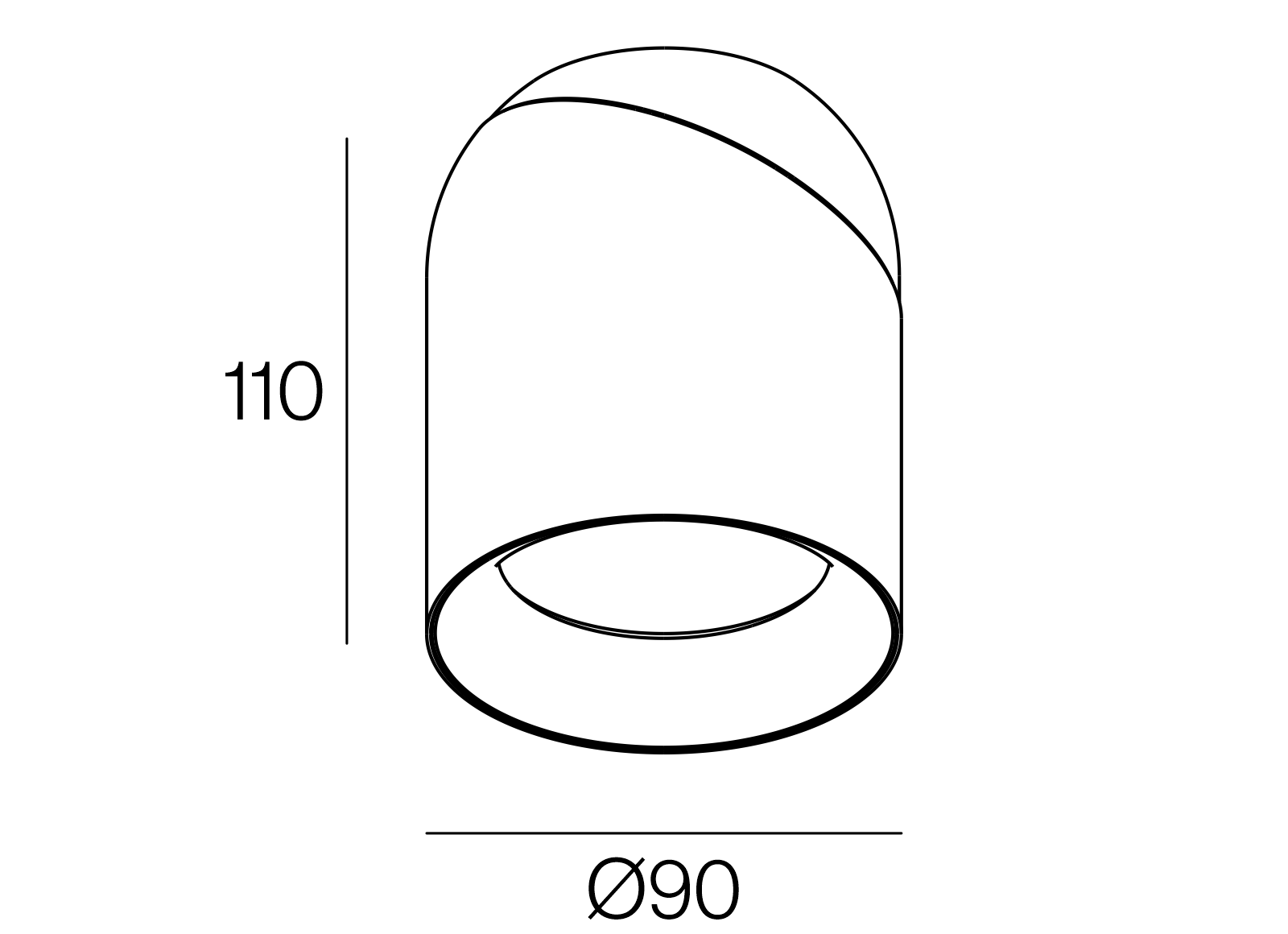

Drawings Installation instructions Specifications

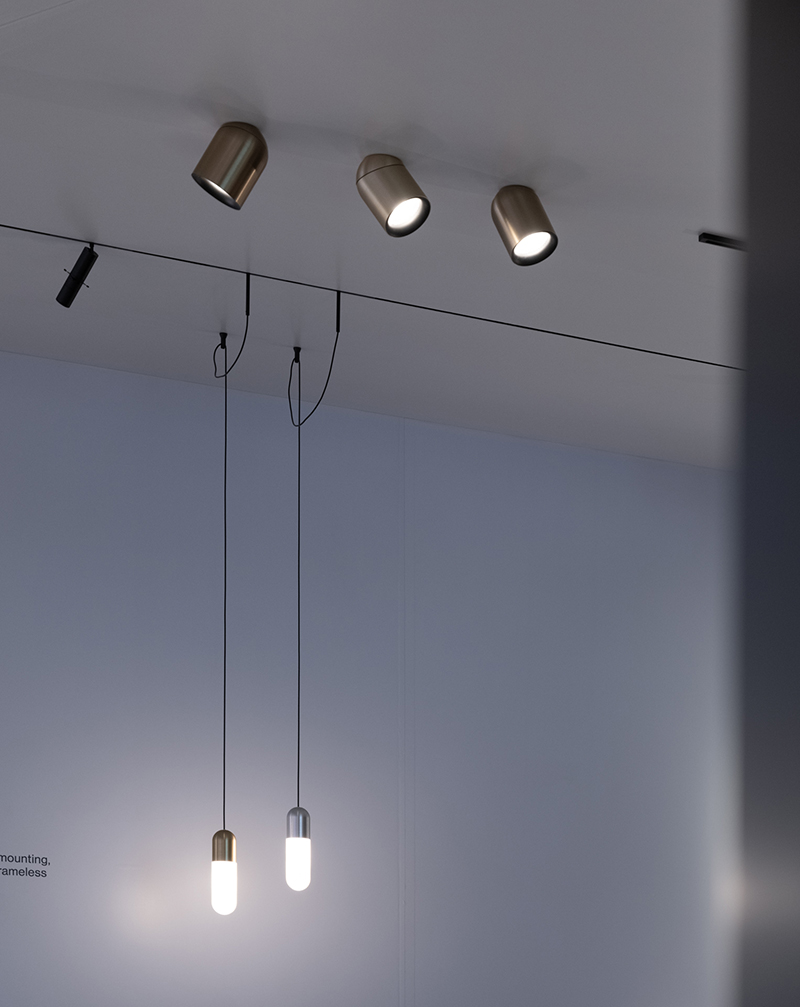

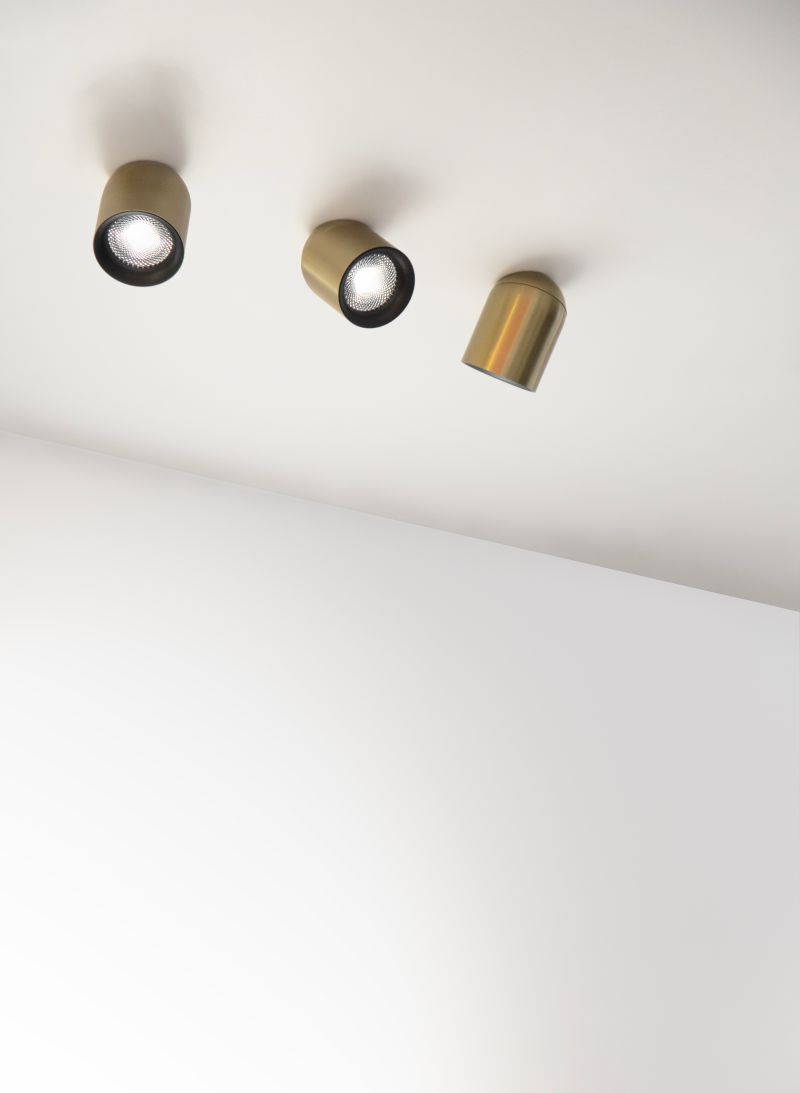

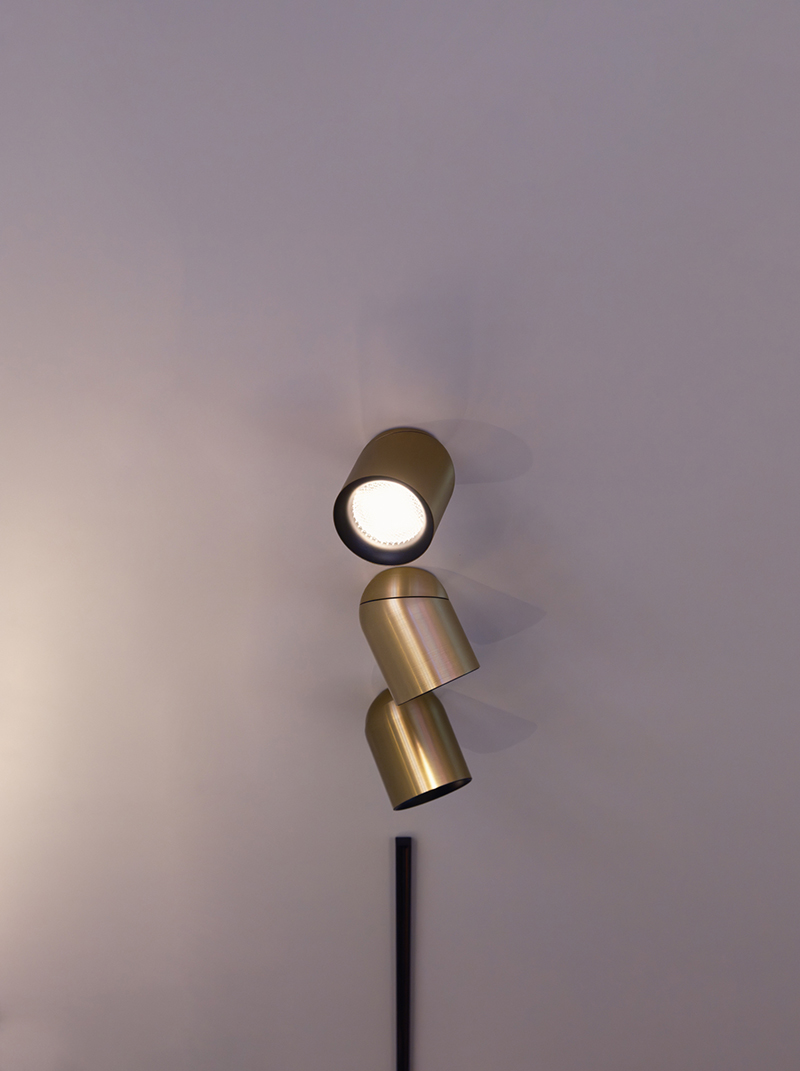

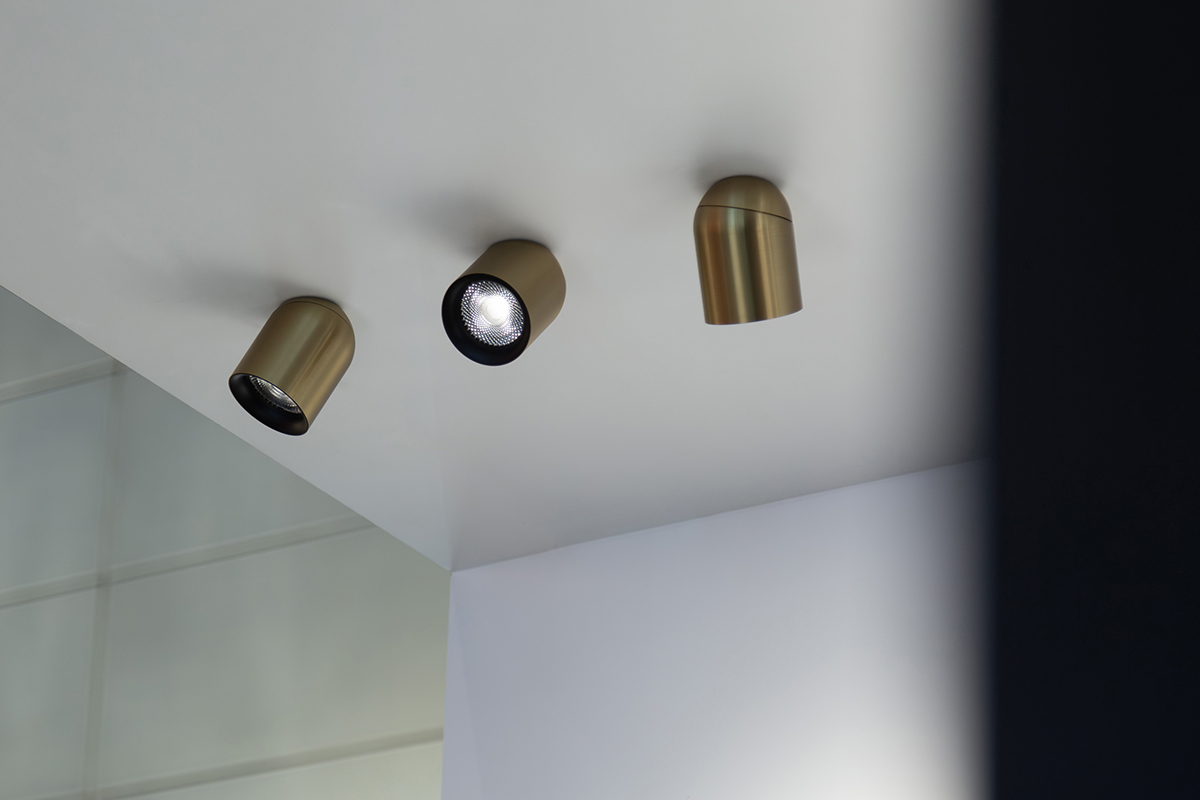

Scenes
