Elara
EL0008

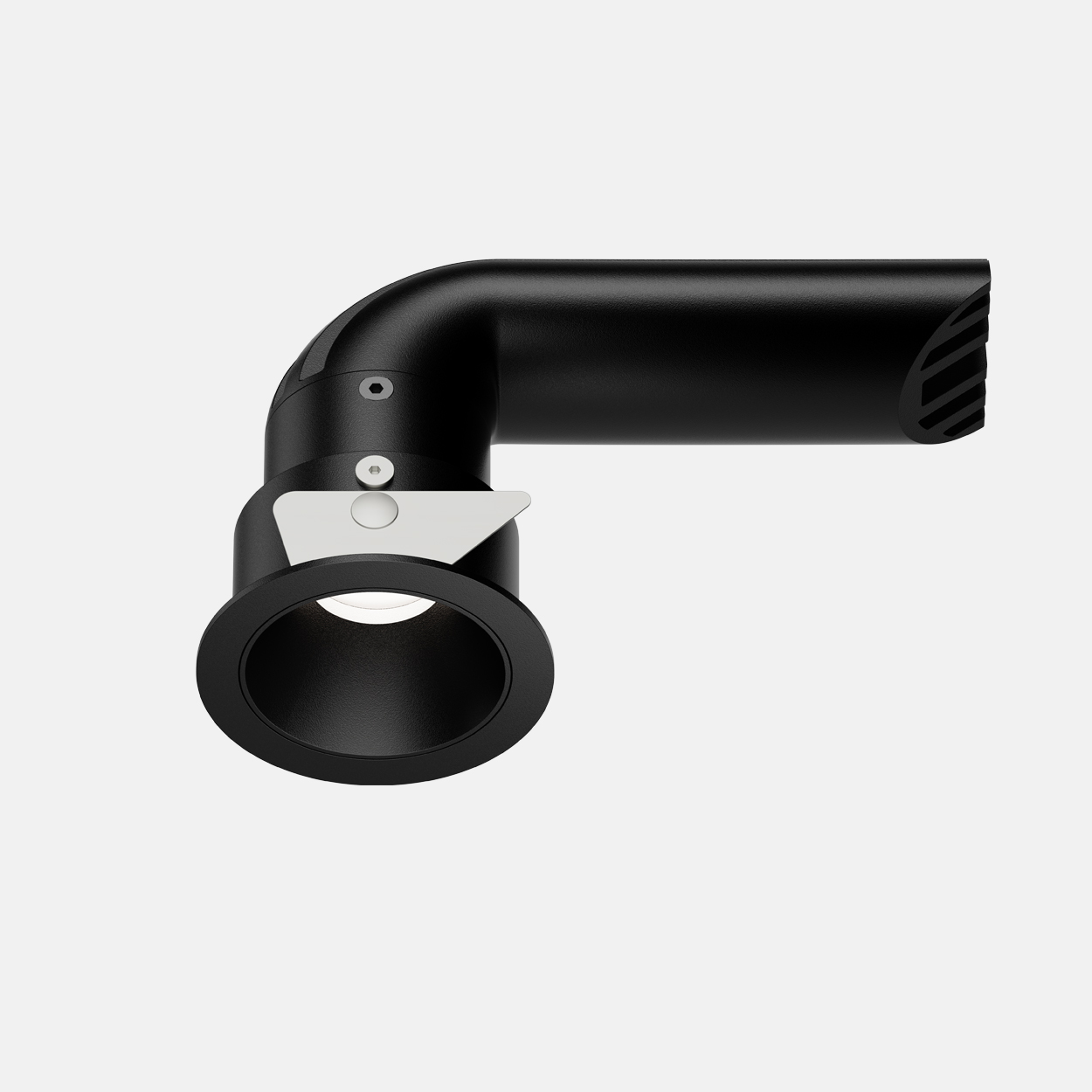

Elara is a recessed downlight designed for spaces with limited ceiling depth,

ideal for offices, administrative areas, public, and technical facilities. Its unique,pipe-shaped

curved heat sink provides efficient cooling, allowing the use of high-power LEDs

without requiring large vertical space. The compact design minimizes structural challenges

during installation, reducing construction complexity, time, and costs.

Elara offers powerful illumination and reliable performance, making it the perfect

choice for areas needing strong lighting within constrained ceiling gaps.

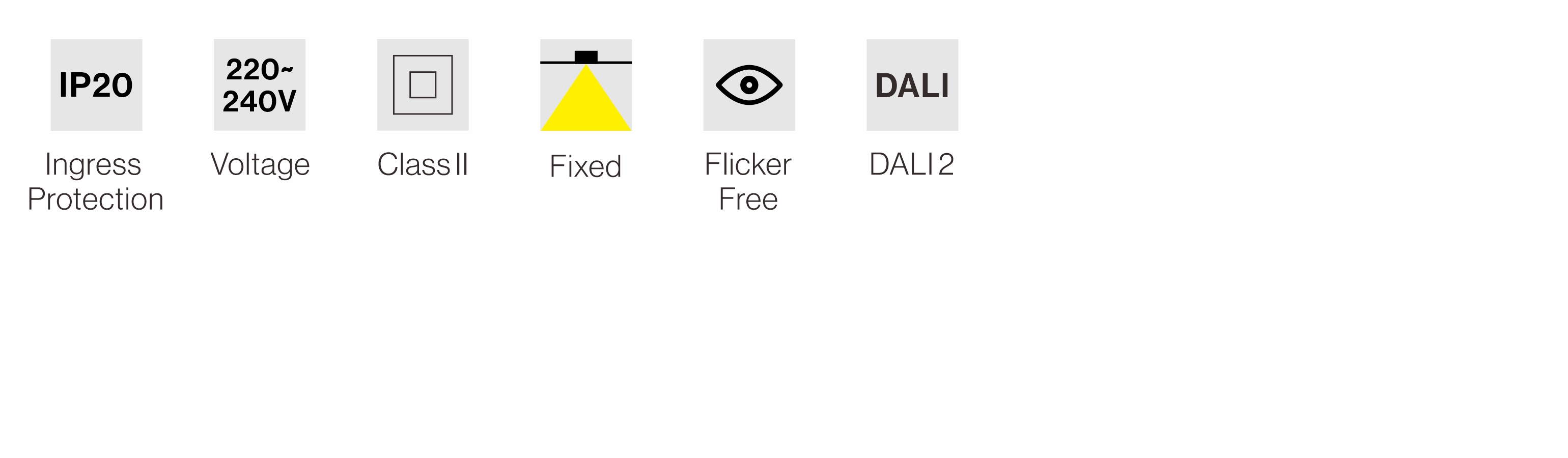

Specification

EL0008

01.240A01000

Power:  8W

Installation method:Recessed

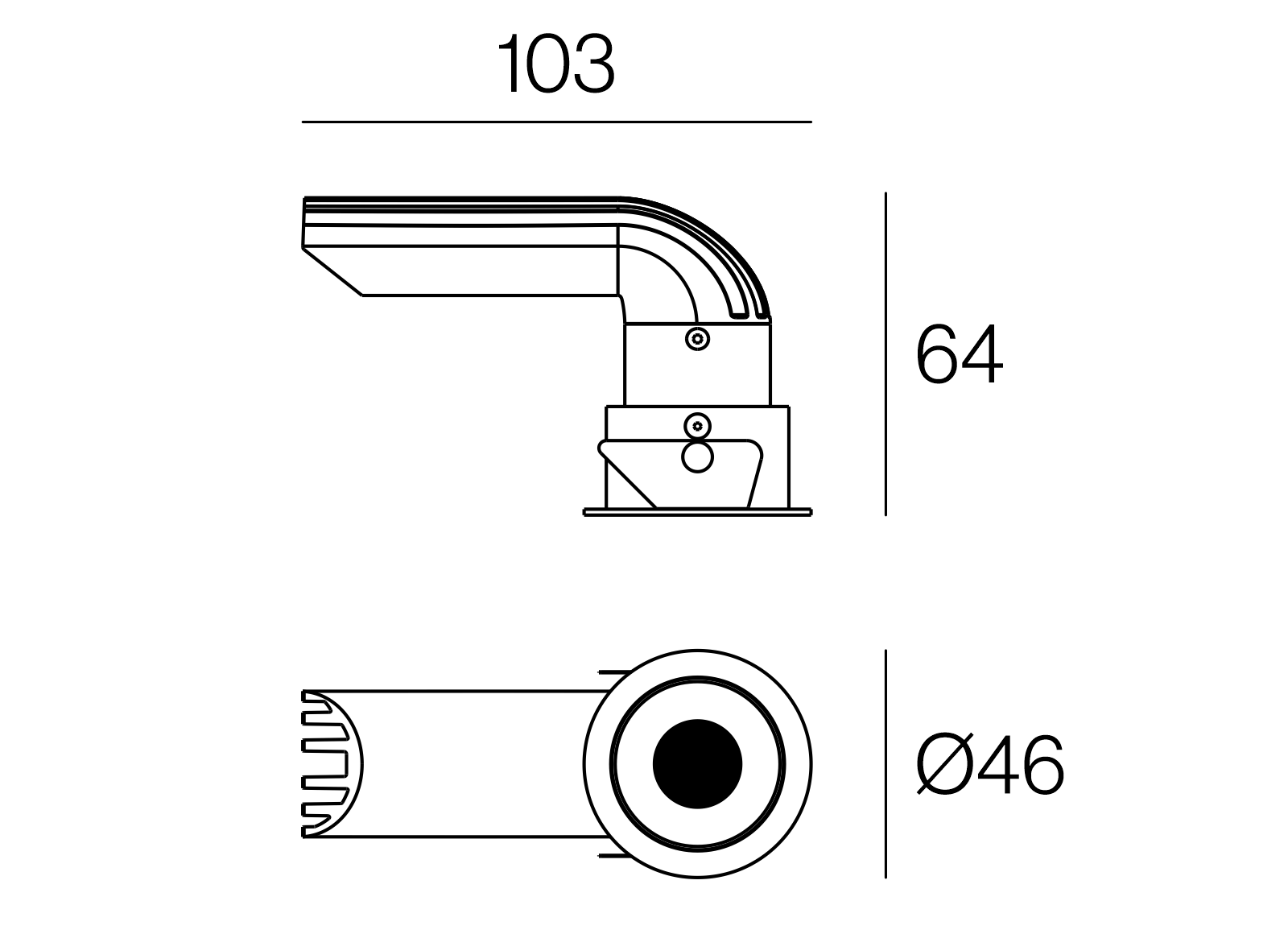

Cut out:φ40mm

Options:Non-dim,  Phase dim,  0/1-10V,  DALI2

Frequency:50/60Hz

LED chip:COB

Light efficiency:66 lm/W

CCT:2700K/3000K/3500K/4000K

CRI:≥90

SDCM:<3

Adjustibility:No

Light distribution:Direct

UGR:<19

Beam angle:25°/33°/38°/48°

Ingress protection:IP20

Material:Aluminum

Operating temperature:-25°C~50°C

Rated life hours:35,000h~50,000h  LM80

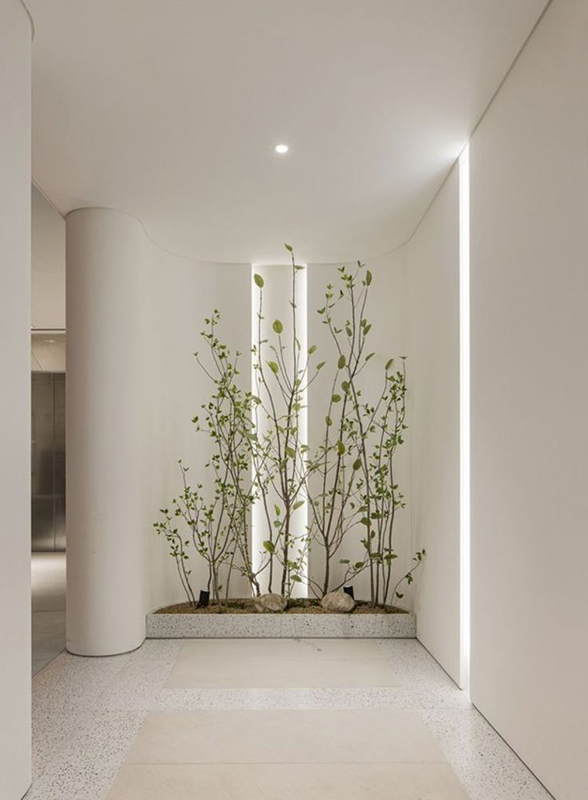

Scenes
