Specification

01.209A03R00

Power：20W/25W

Installation method：Recessed

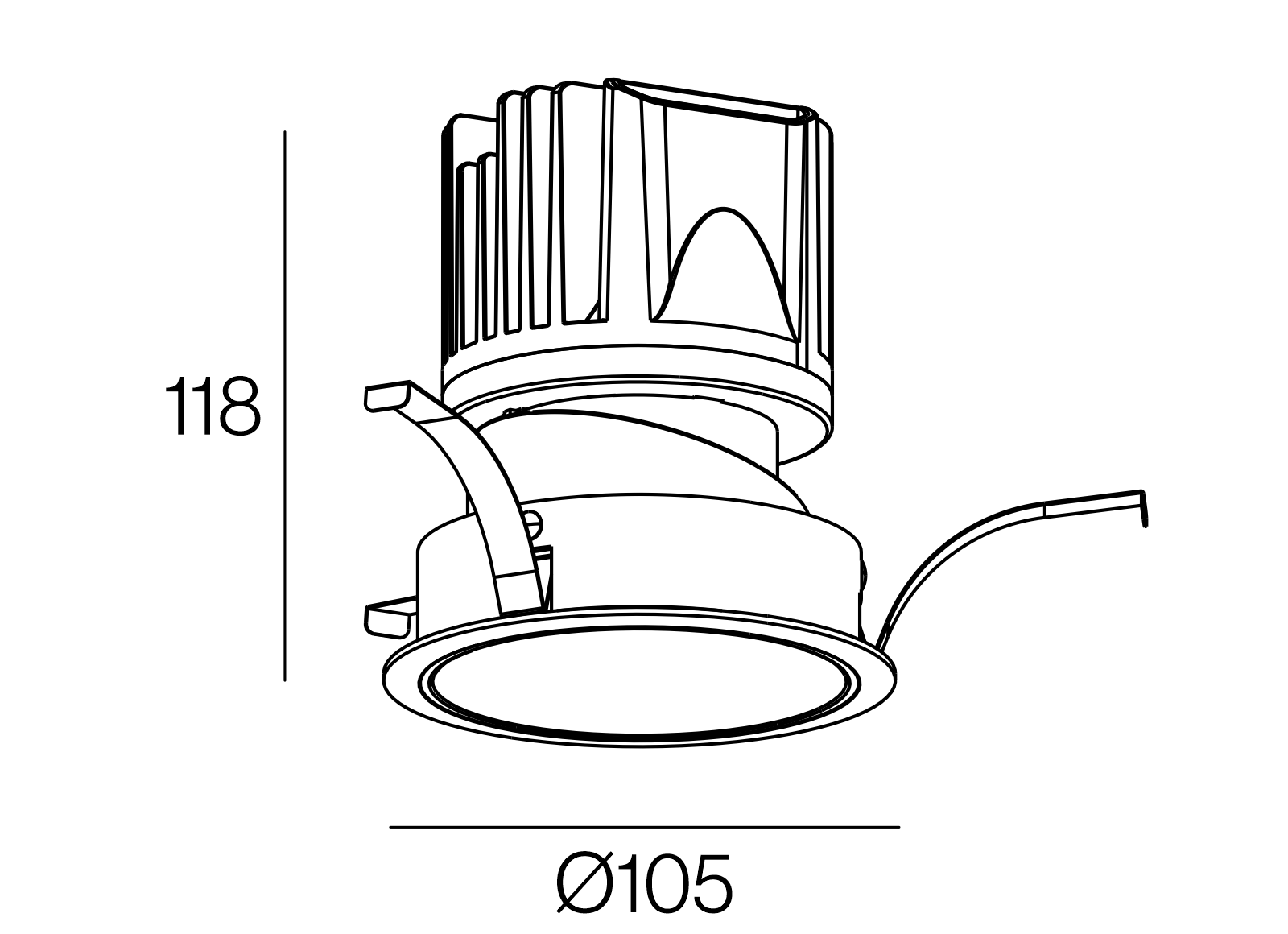

Cut out：φ95mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：78 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：＞90

SDCM：＜3

Adjustibility：355° Rotation | 30° Tilting

Light distribution：Direct

UGR：＜10

Beam angle：21°/29°/40°/53°

Ingress protection：IP20 / IP65

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

White+Black

White+Bright Silver

White + Gun Black

White

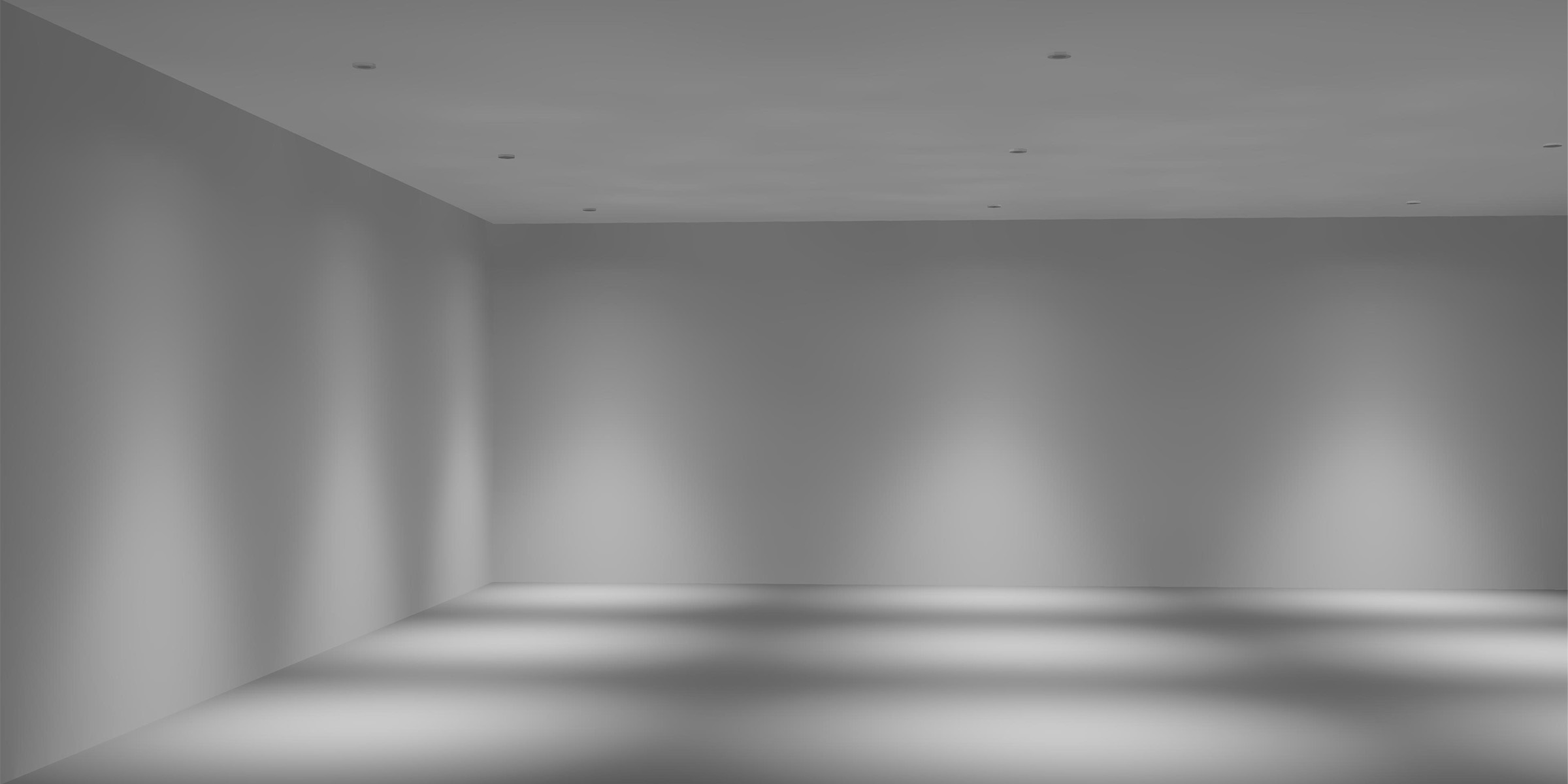

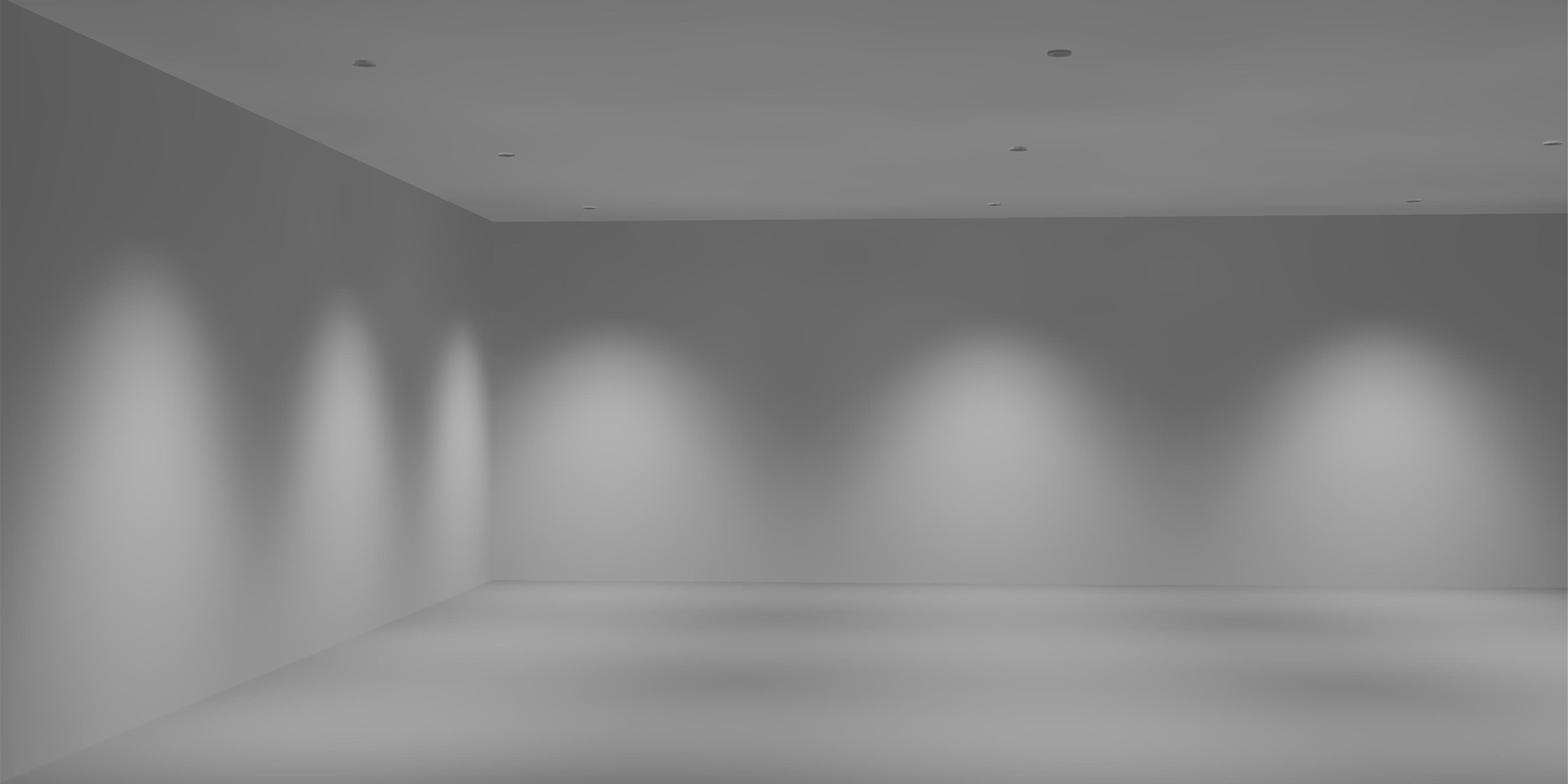

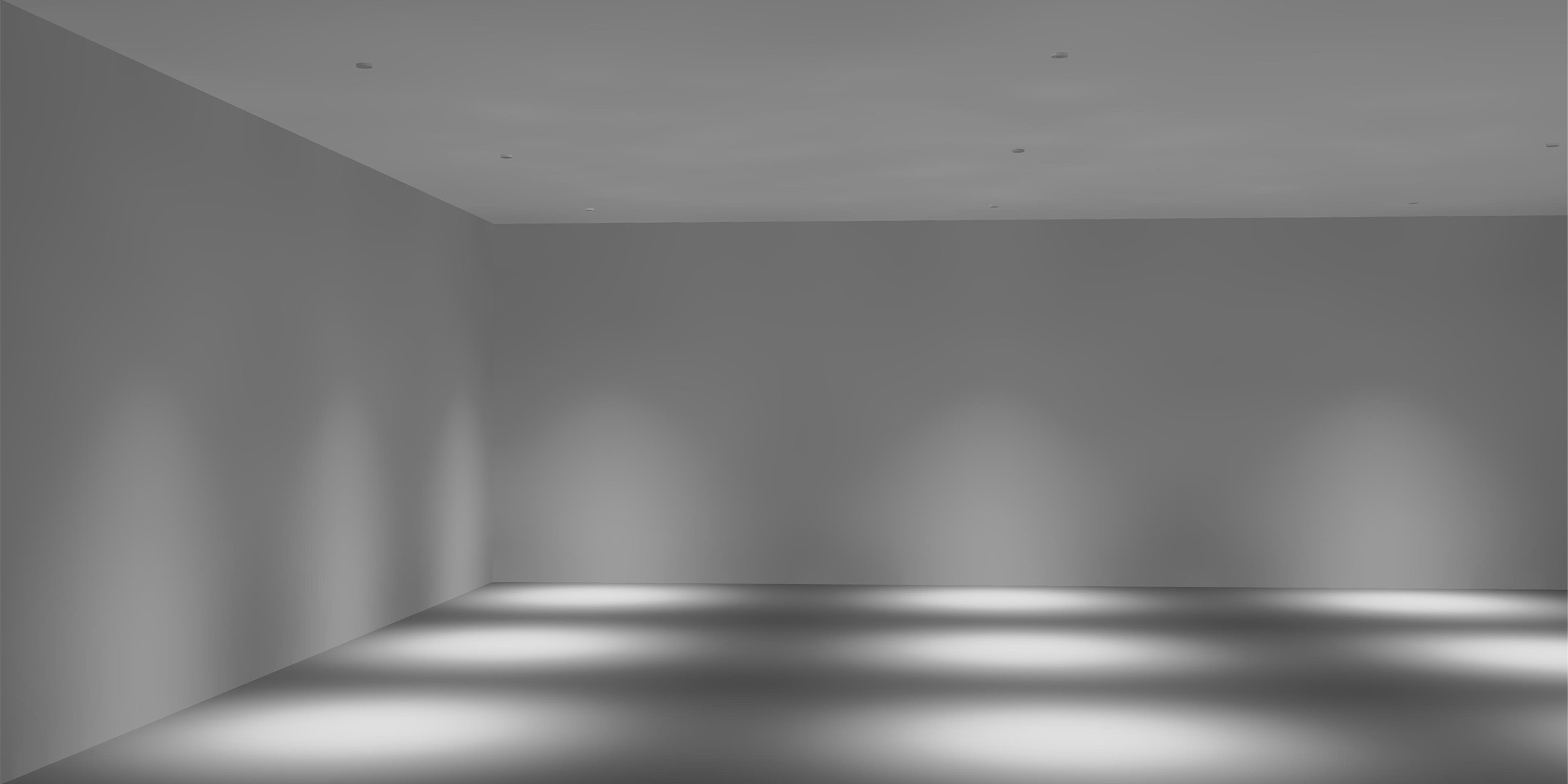

Scenes

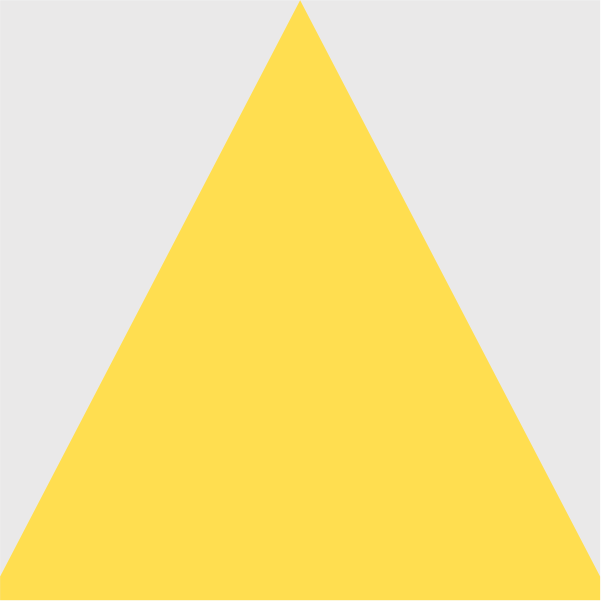

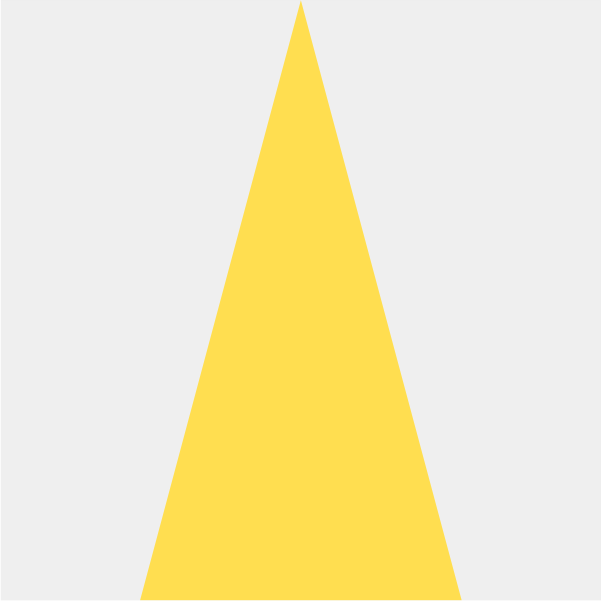

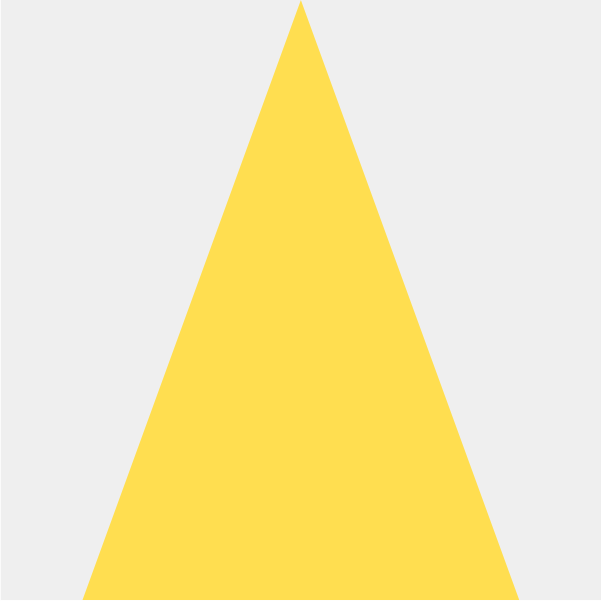

Beam angle

21°

29°

40°

53°

Applicable Instructions for 21° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 29° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 40° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 53° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
