02.119A50000
Power：30W
Installation method：Track Mounted
Track system：3-circuit DALI, 1-circuit DALI, 3-circuits, 1-circuit
Options：Non-dim, Phase dim, 0/1-10V, DALI
Frequency：50/60Hz
LED chip：COB
Light efficiency：73 lm/W
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility：355° Rotation | 320° Tilting
Light distribution：Direct
Beam angle：23°/58°/72°/55*75°
Ingress protection：IP20
Material：Aluminum
Operating temperature：-25°C~50°C
Rated life hours：35,000h~50,000h LM80
Black

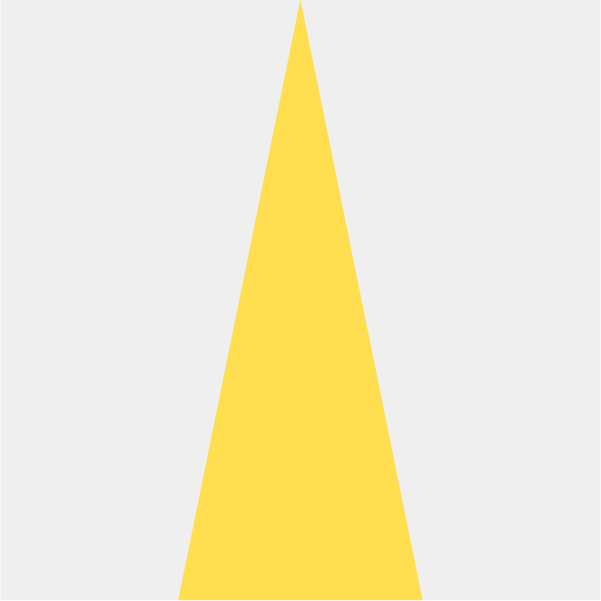

23°

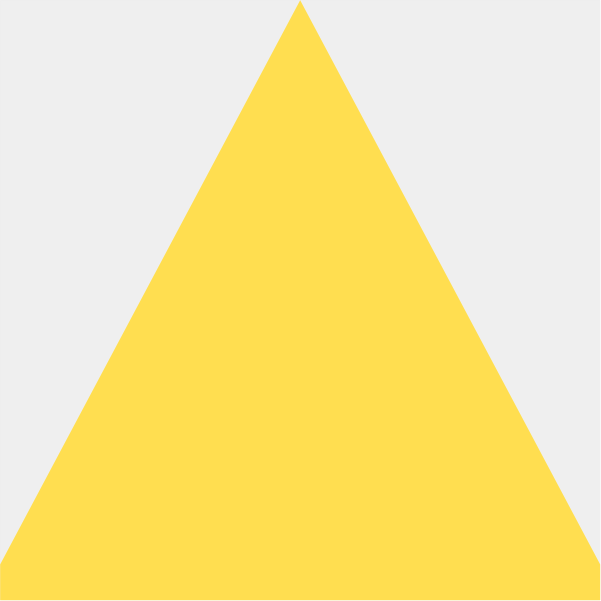

58°

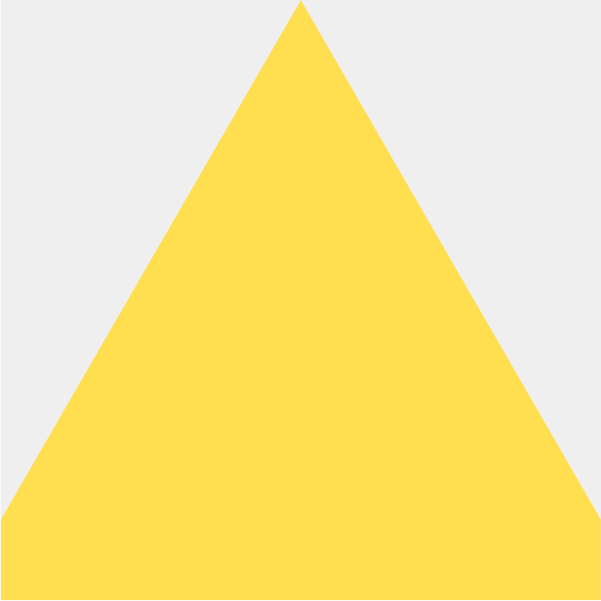

72°

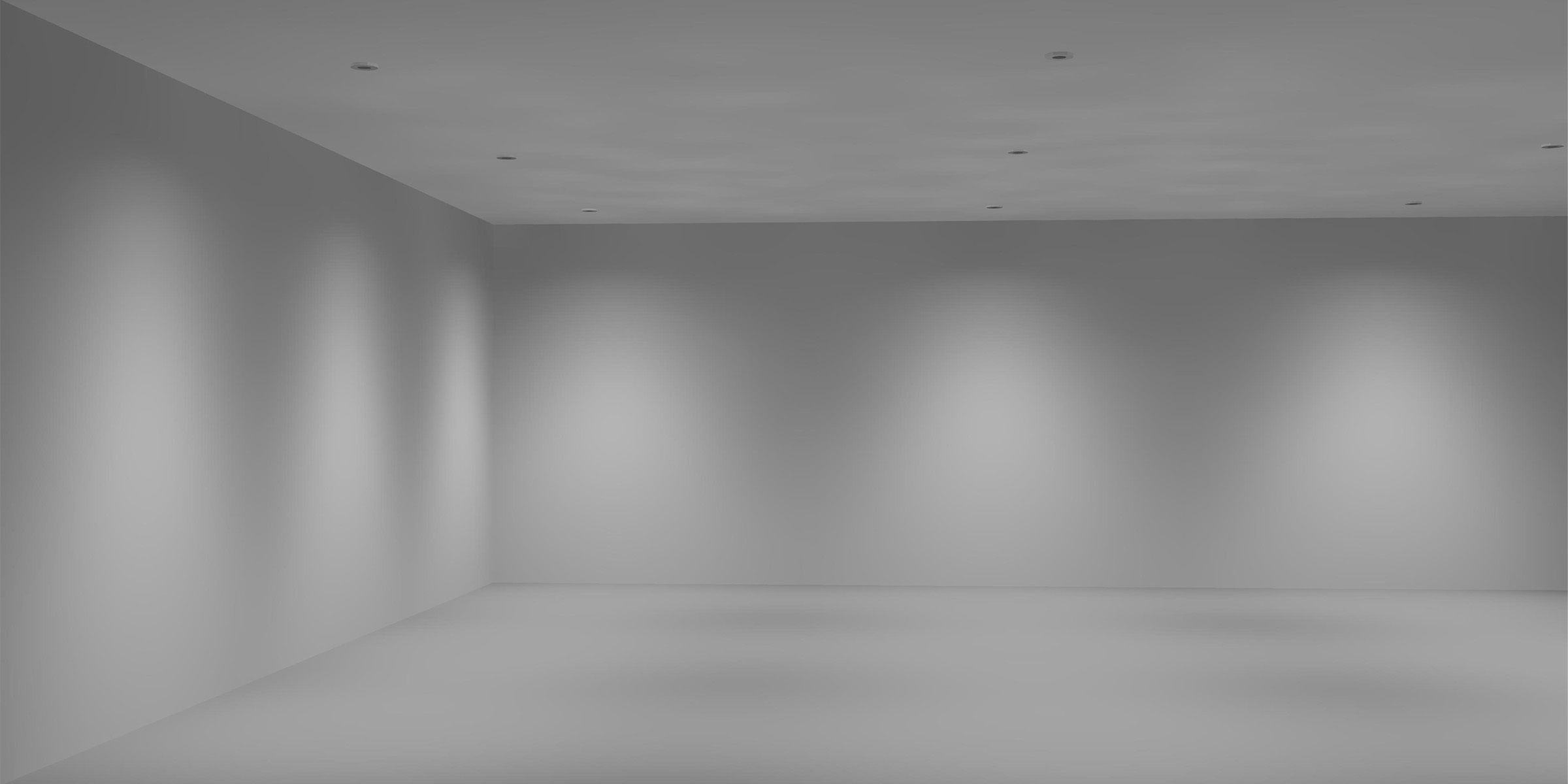

Applicable Instructions for 17-36° Illumination
This is an angle suitable for basic lighting，

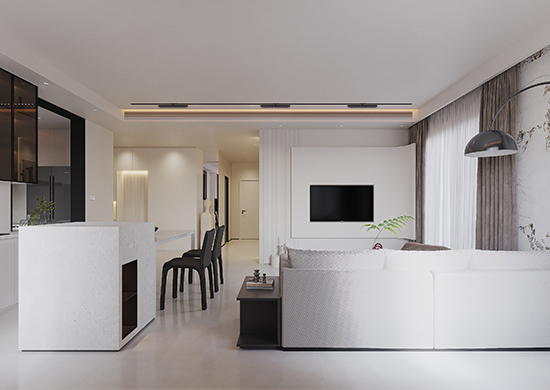

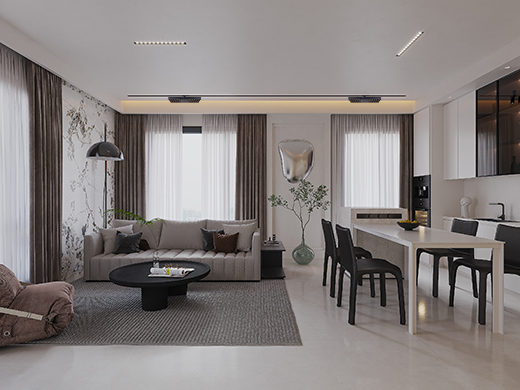

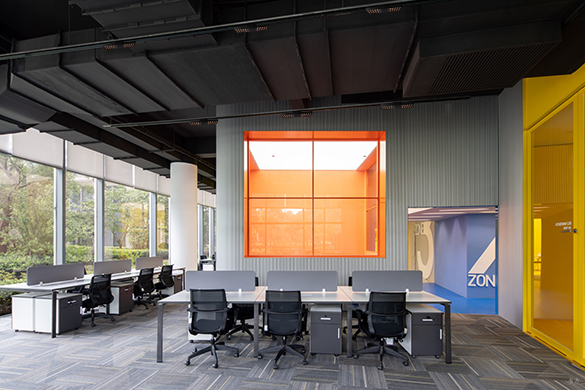

It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
Factory Add:
No.13 Lianbao Road,Shengfeng Community,
Xiaolan Town, Zhongshan City.
Tel:
+8676022389158
+86760 22382108
Black
grown
blue
red
gray
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
