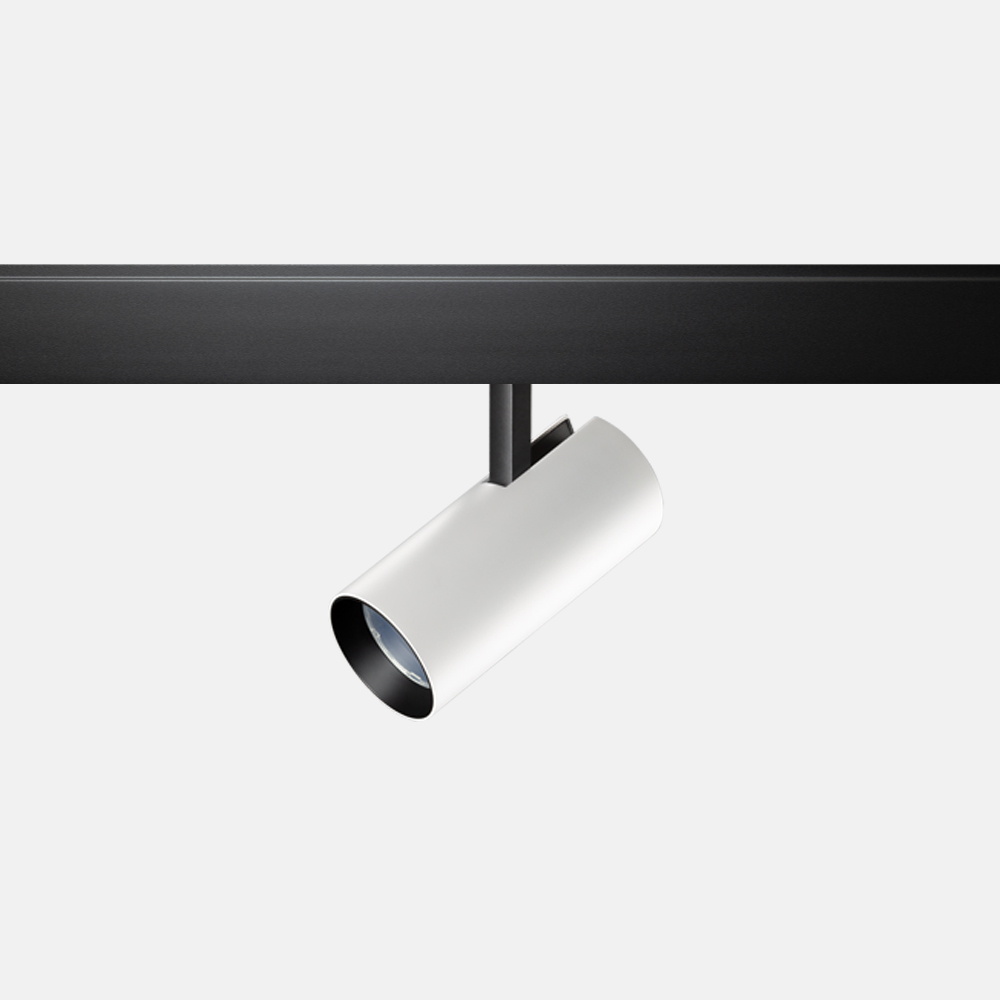

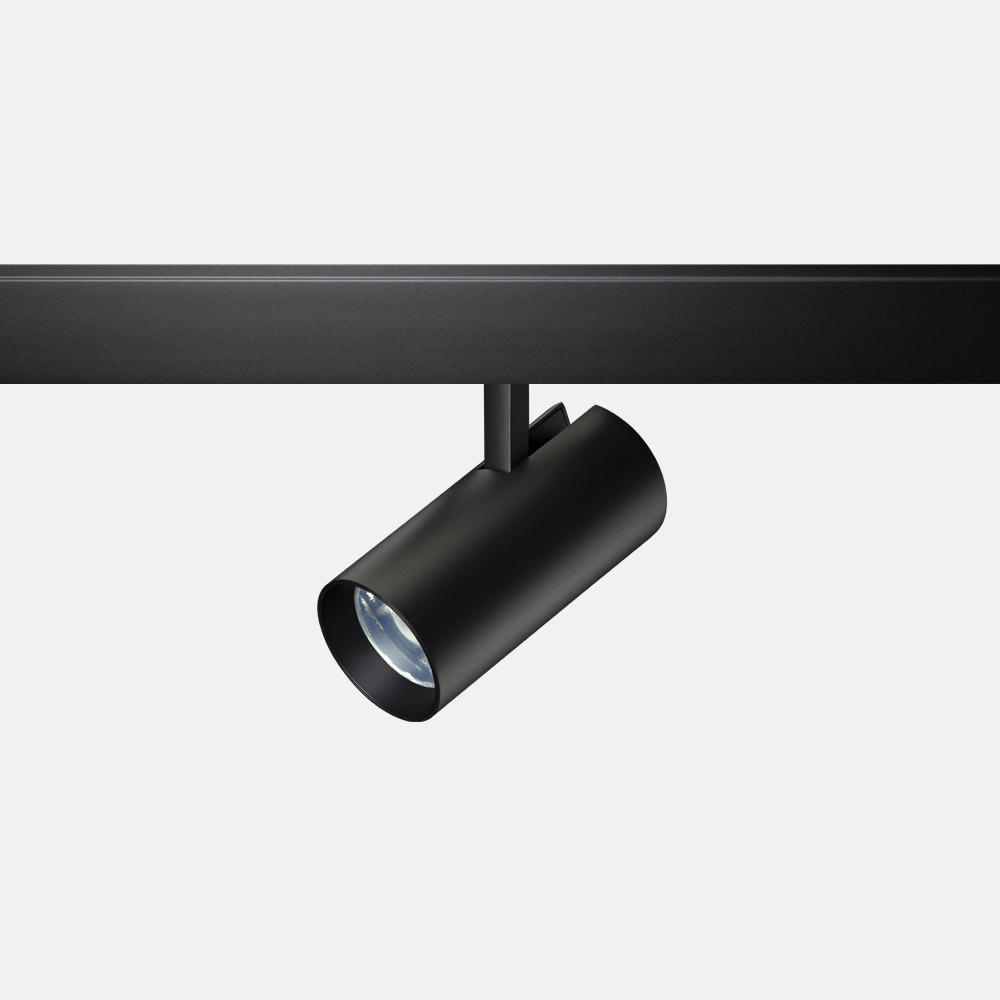

Armada
13.001A01000

Revolutionary product that allows movement management

in the three axes: rotation, tilting and active linear motion

(ALM)-allowing full spectrum repositioning options.

Specification

13.001A01000

Power:30W

Installation method:Motorized Track

Options:CASAMBI

Frequency:50/60Hz

LED chip:COB

Light efficiency:53 lm/W

CCT:2700K-6000K

CRI:≥90

SDCM:<3

Adjustibility:365° Rotation | 90° Tilting

Light distribution:Direct

Beam angle:13-50°

Ingress protection:IP20

Material:Aluminum

Operating temperature:-25°C~50°C

Rated life hours:35,000h~50,000h  LM80

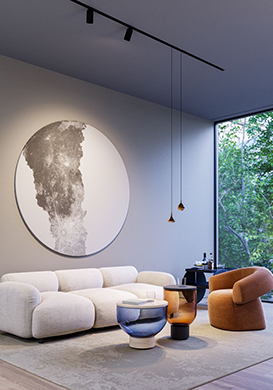

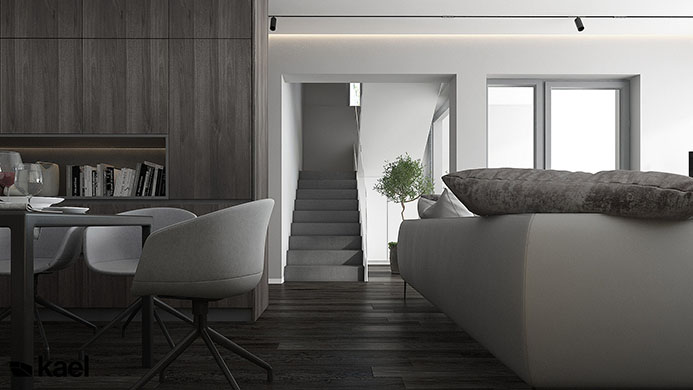

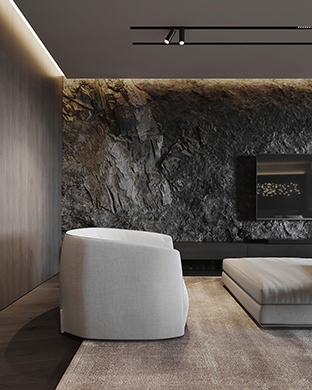

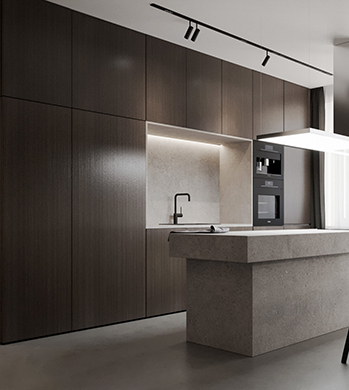

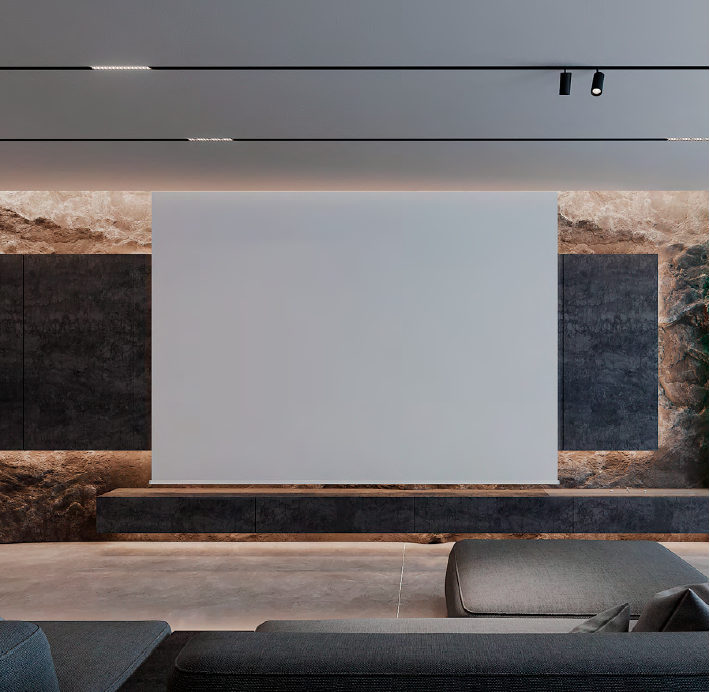

Scenes
Beam angle

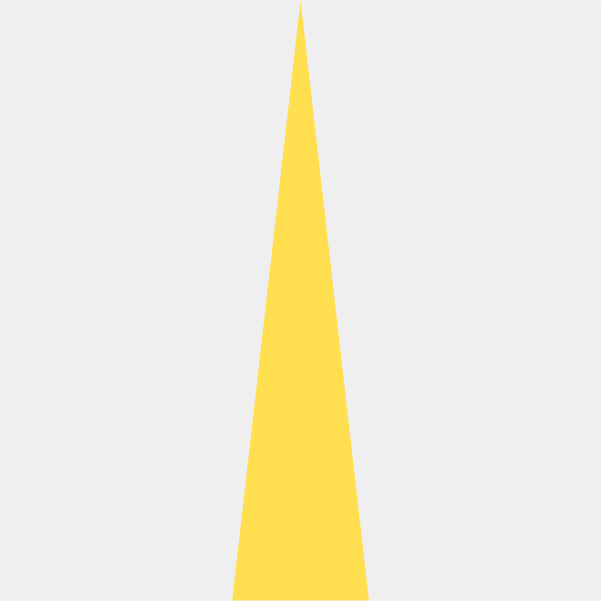

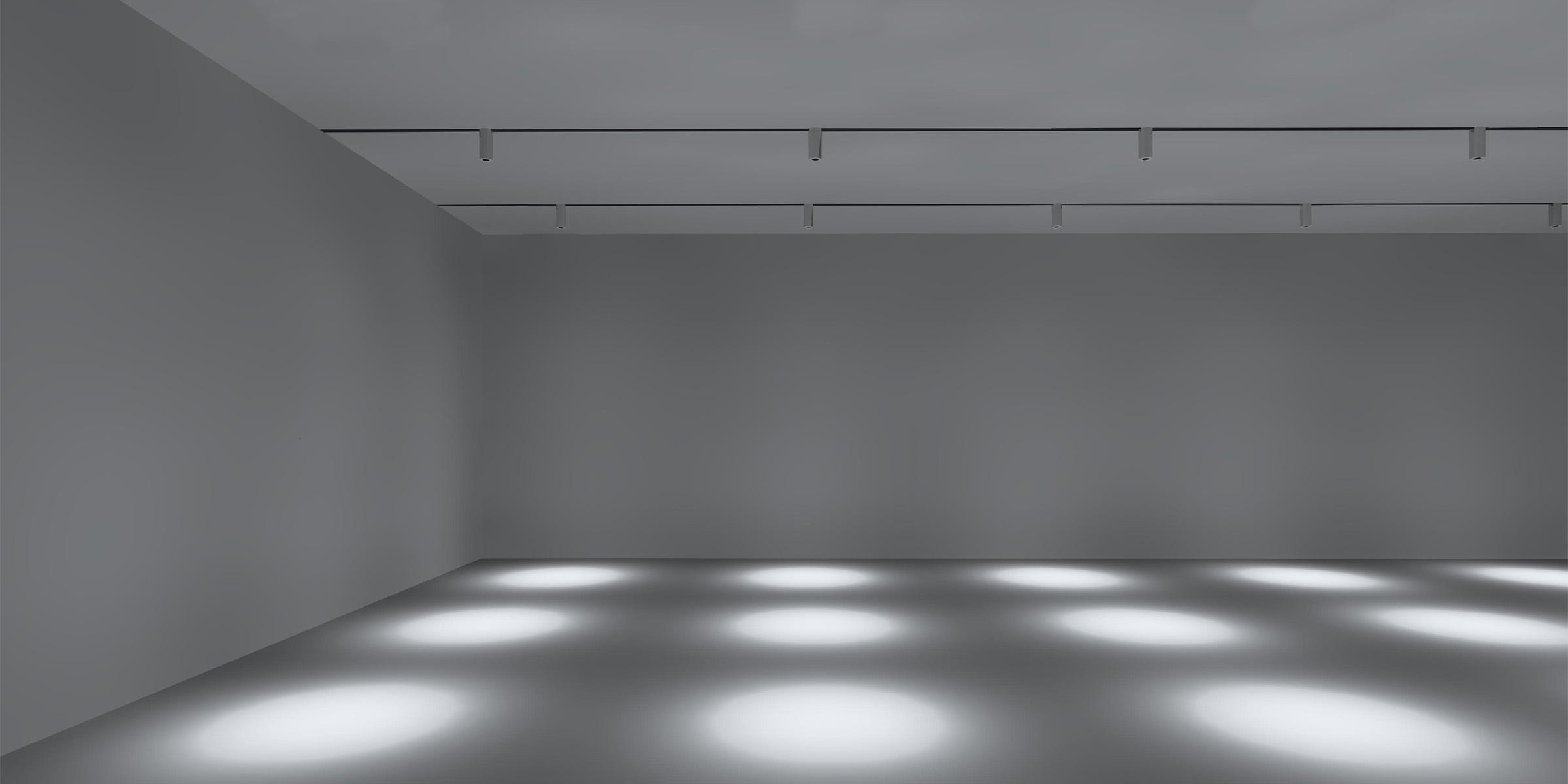

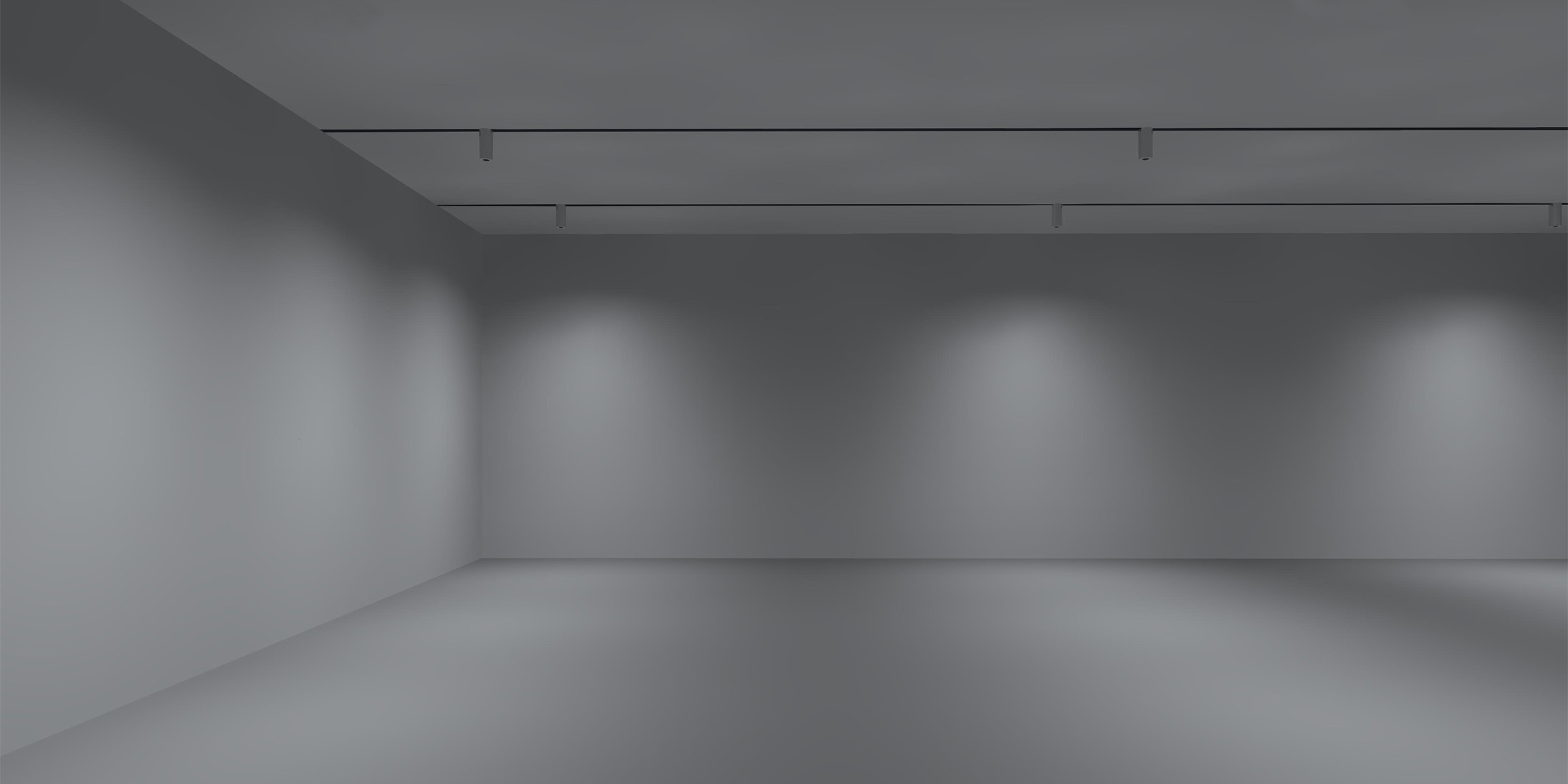

Applicable Instructions for 13° Illumination



This is an angle suitable for basic lighting,
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
