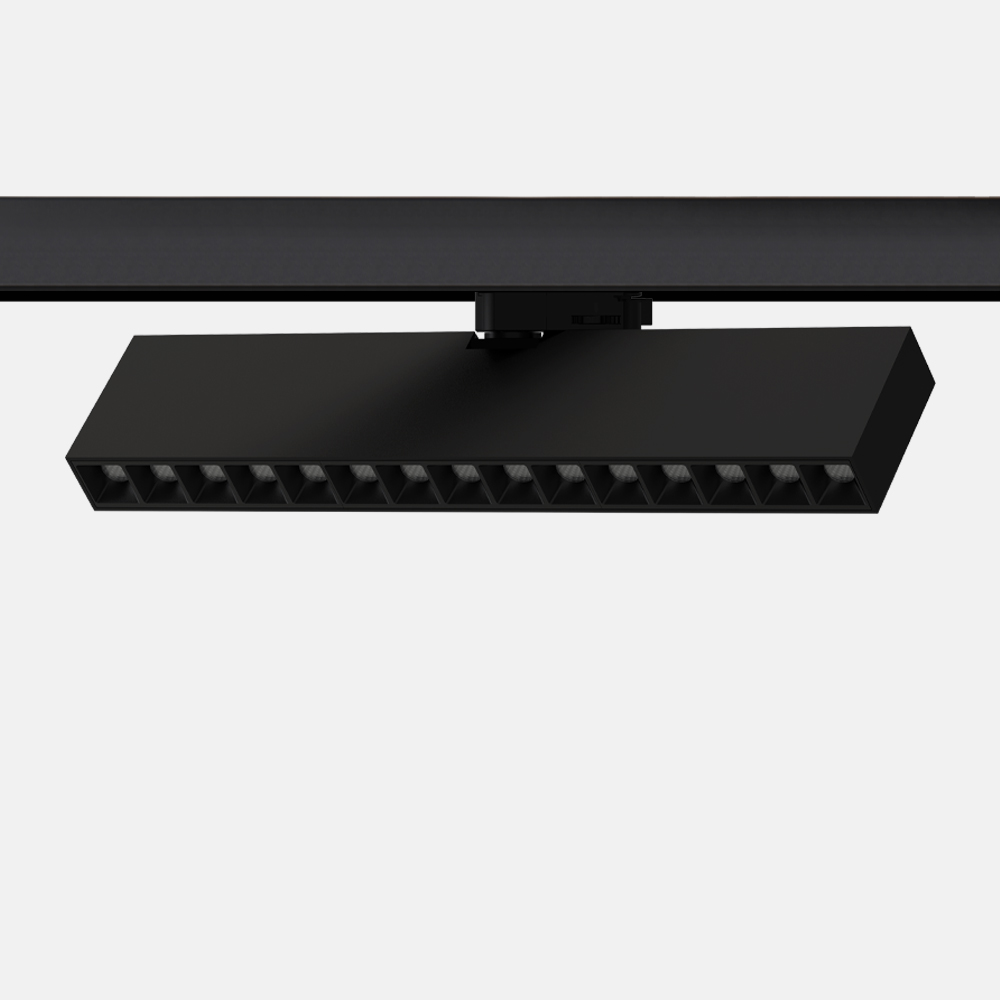

LATTICE

02.180E

Lattice delivers high performance and outstanding visual comfort.

This is because of the special anti-glare lenses and the low glare value UGA<16 and color rendering RA>90 of the product itself.

Lattice is usually used for basic lighting and important lighting in exhibition venues.

It can meet the lighting needs of various projects.

It has three beam angles and multiple wireless adjustment methods such

As BLE,TRIAC and DALI.

/ Products / Track light / Lattice

Specification

Power：30W

Installation method：Track Mounted

Cut out：NO

Dimming：Non-DIM 、TRIAC 、0/1-10V、DALI 、BLE 、ZIGBEE

Frequency：50/60HZ

LED：SMD

Lumen：78lm/w

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：345° Rotation | 60° Tilting

Light distribution：Direct

Beam angle：22°/36°/45°

Protection class：IP20

Material：Aluminum

Environment temperature：-20°C~40°C

LED life Time： 35,000h~ 50,000h - L80

Black

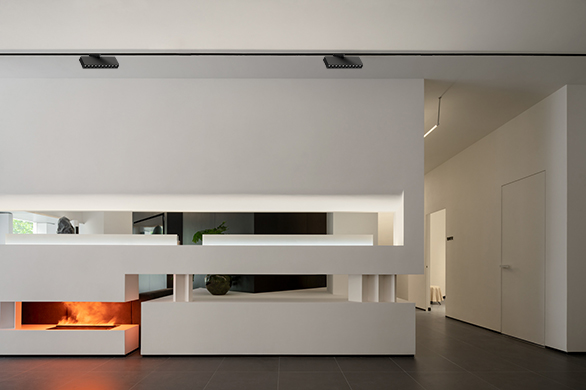

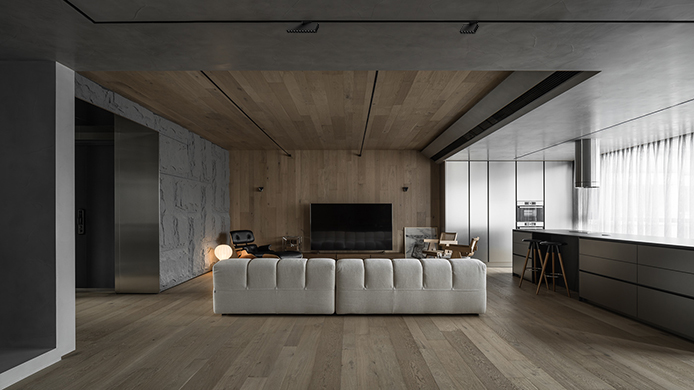

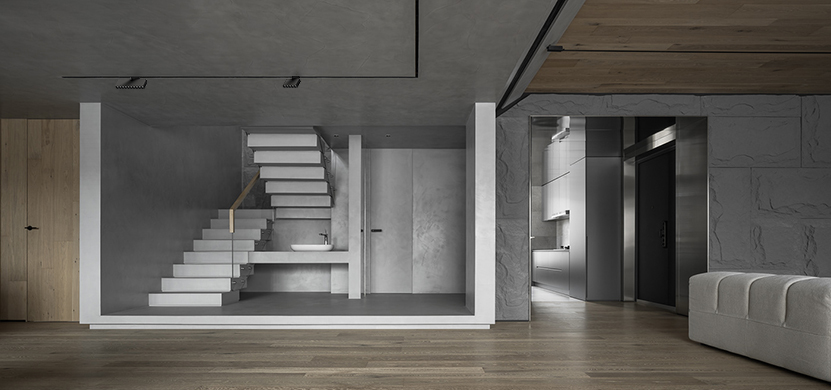

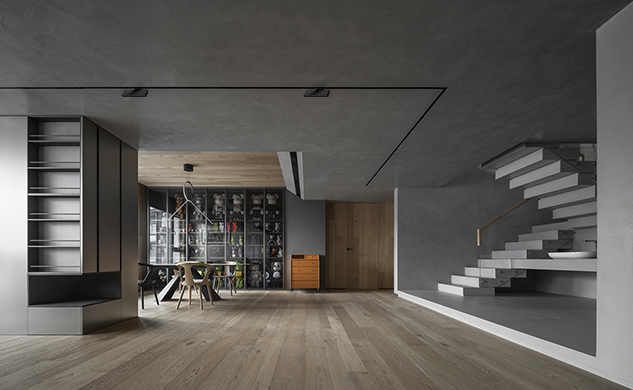

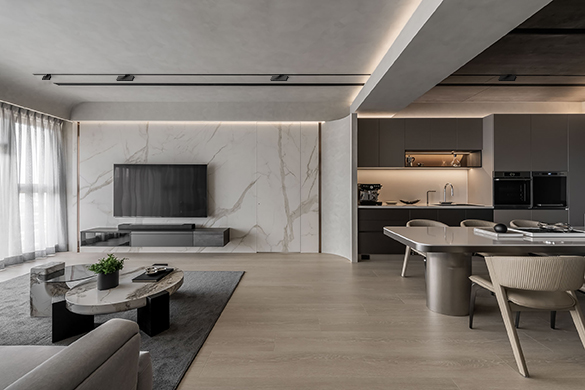

Scenes

Beam angle

22°

36°

45°

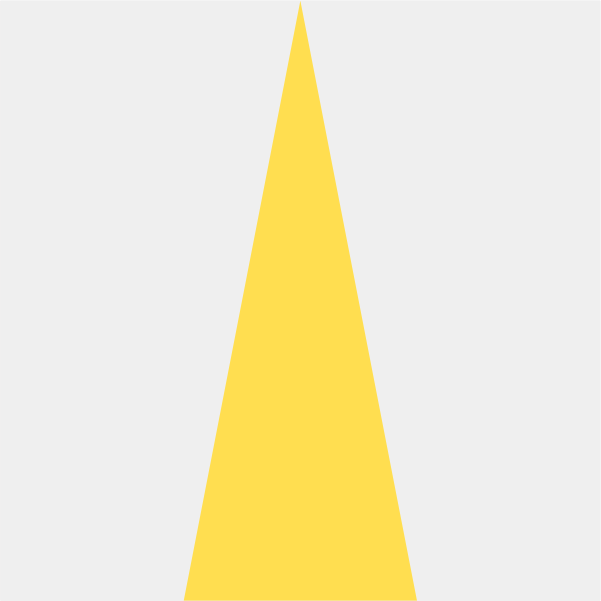

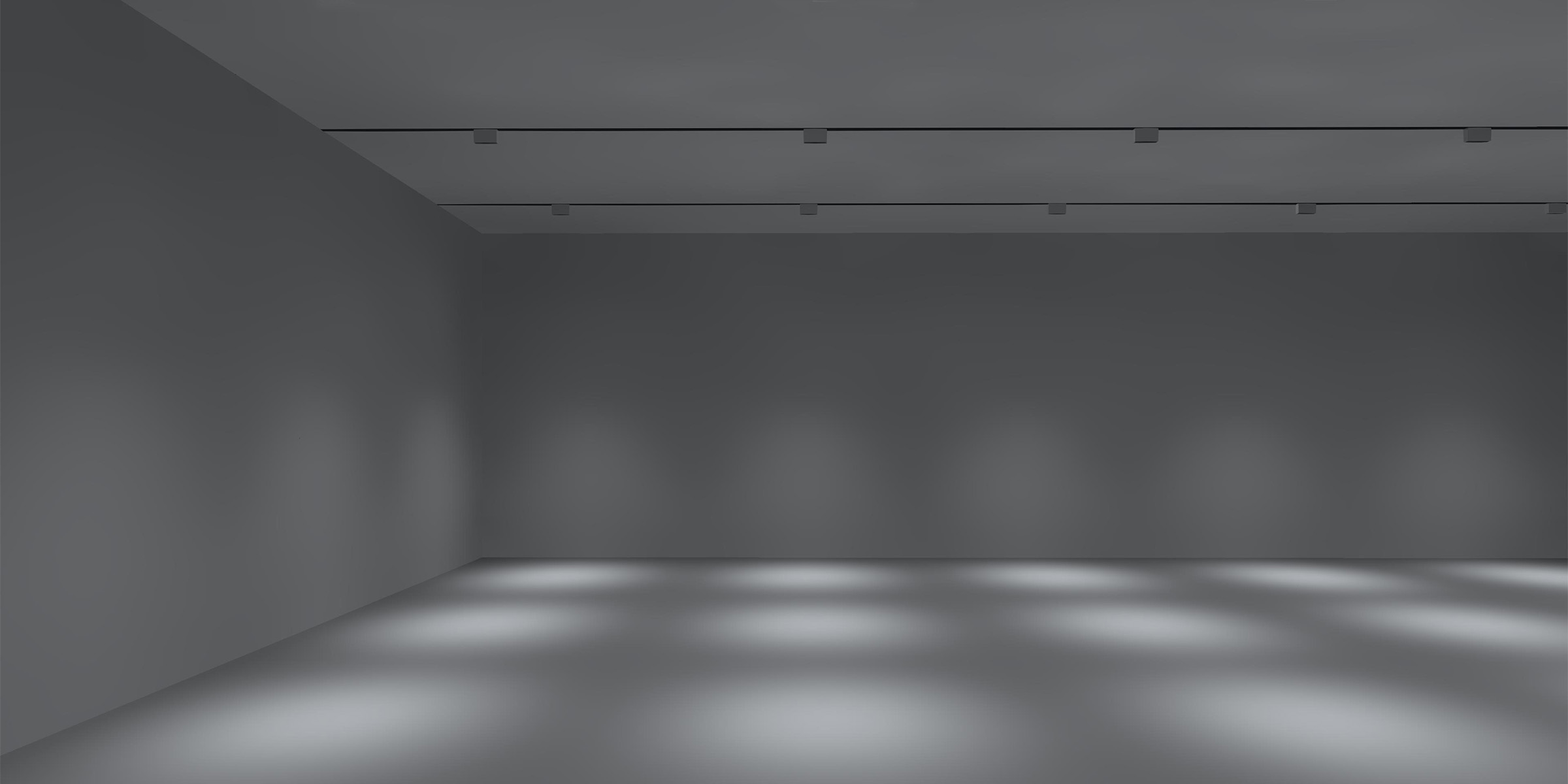

Applicable Instructions for 22° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

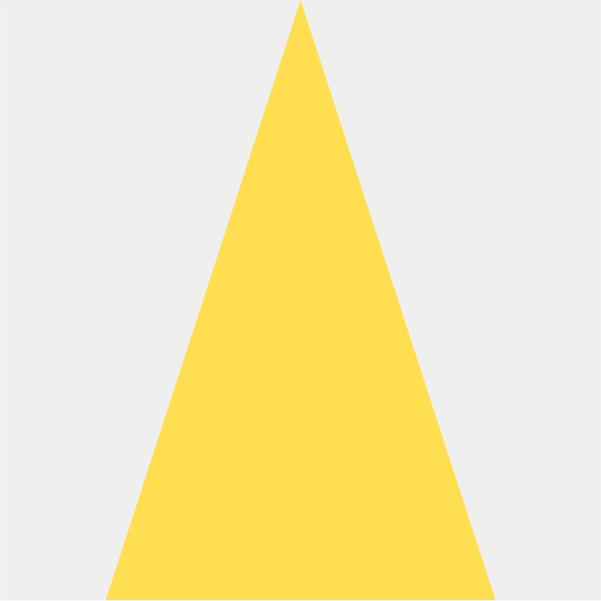

Applicable Instructions for 36° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

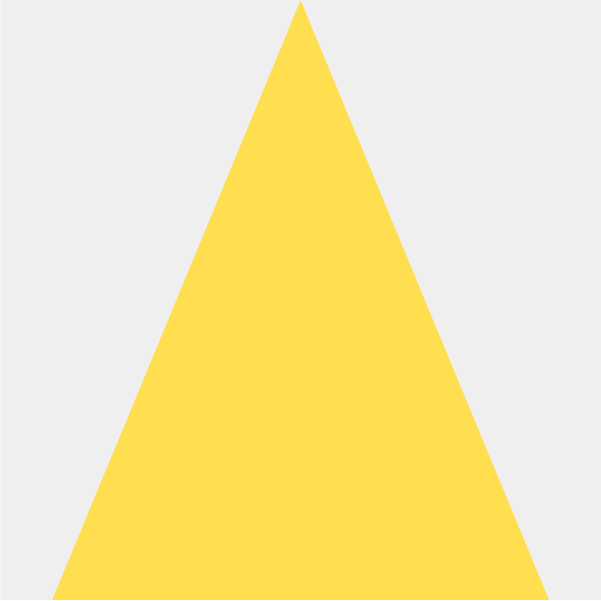

Applicable Instructions for 45° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

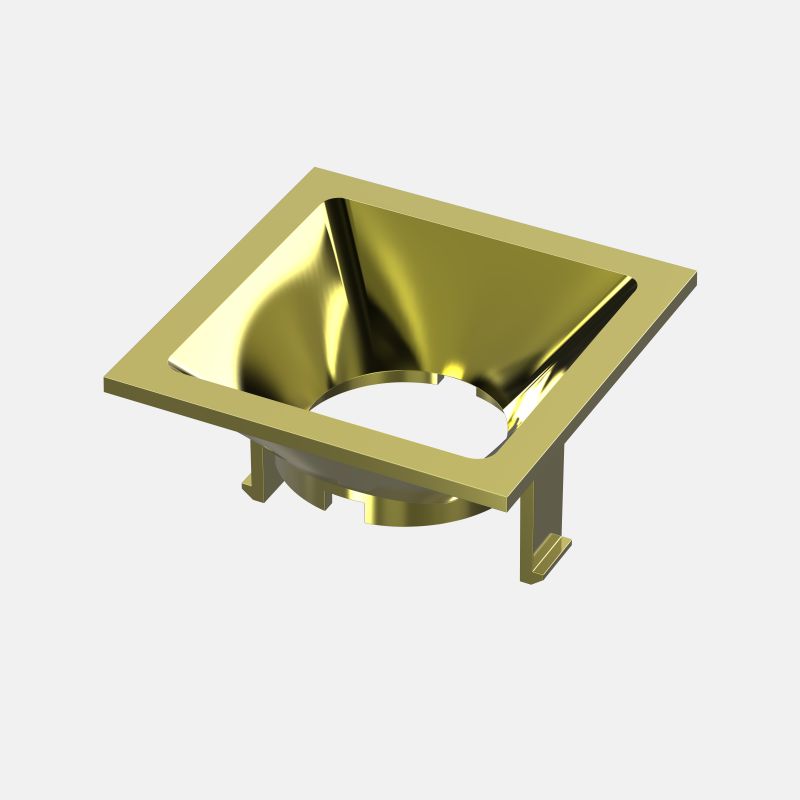

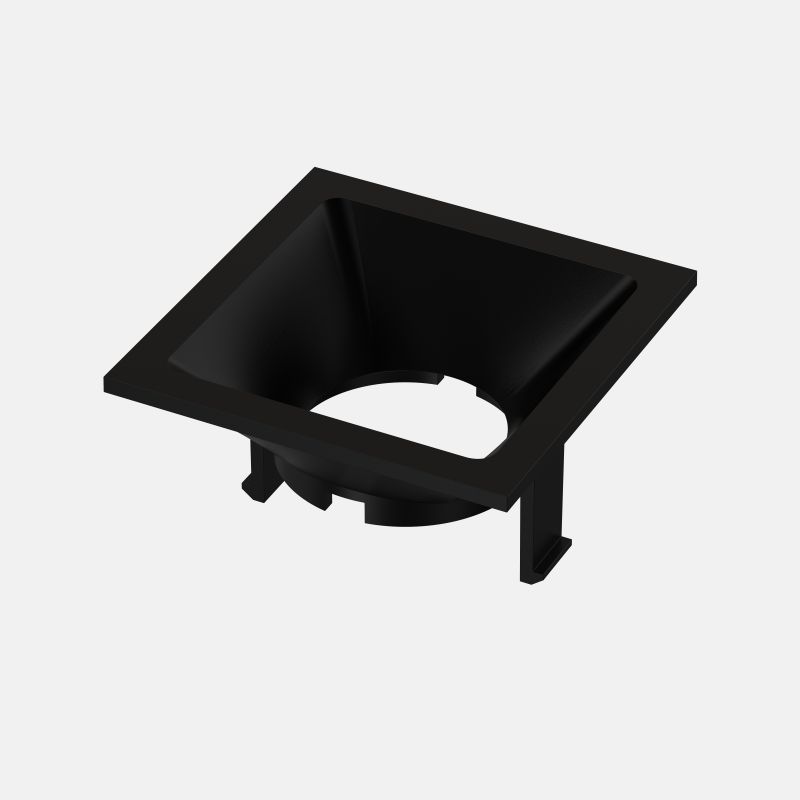

Filter products

Lattice01.01A03R

Black

grown

blue

red

gray

This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.

Specification

Power

56W

Installation method

Built-in/surface mounted

Frequency

50/60Hz

CCT

2700K

CRI

>90

SDCM

LED

COB

lP65

LED life Time

>50,000h - L80 - B10 (Ta 25°C)

Lunmen

549LM

Beam angle

15°

Adjustibility

>NO

Dimmable

Non-DIM

Material

Aluminum

Accessories

Track rail

Voltage：48V-256V

Size：1000*19*10

10.M19A10000

Track rail

Voltage：48V-256V

Size：1000*19*10

10.M19A10000
Download

Installation Notes Technical data 3D/DWG IES LTD

PRODUCT FEATURES

- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
