A03_Reflex III_Recessed ceiling light_Products

/ Products / Recessed ceiling light / Reflex III

Specification

RF0215/RF0220 (01.222A03000)

Power：15W/20W

Installation method：Recessed

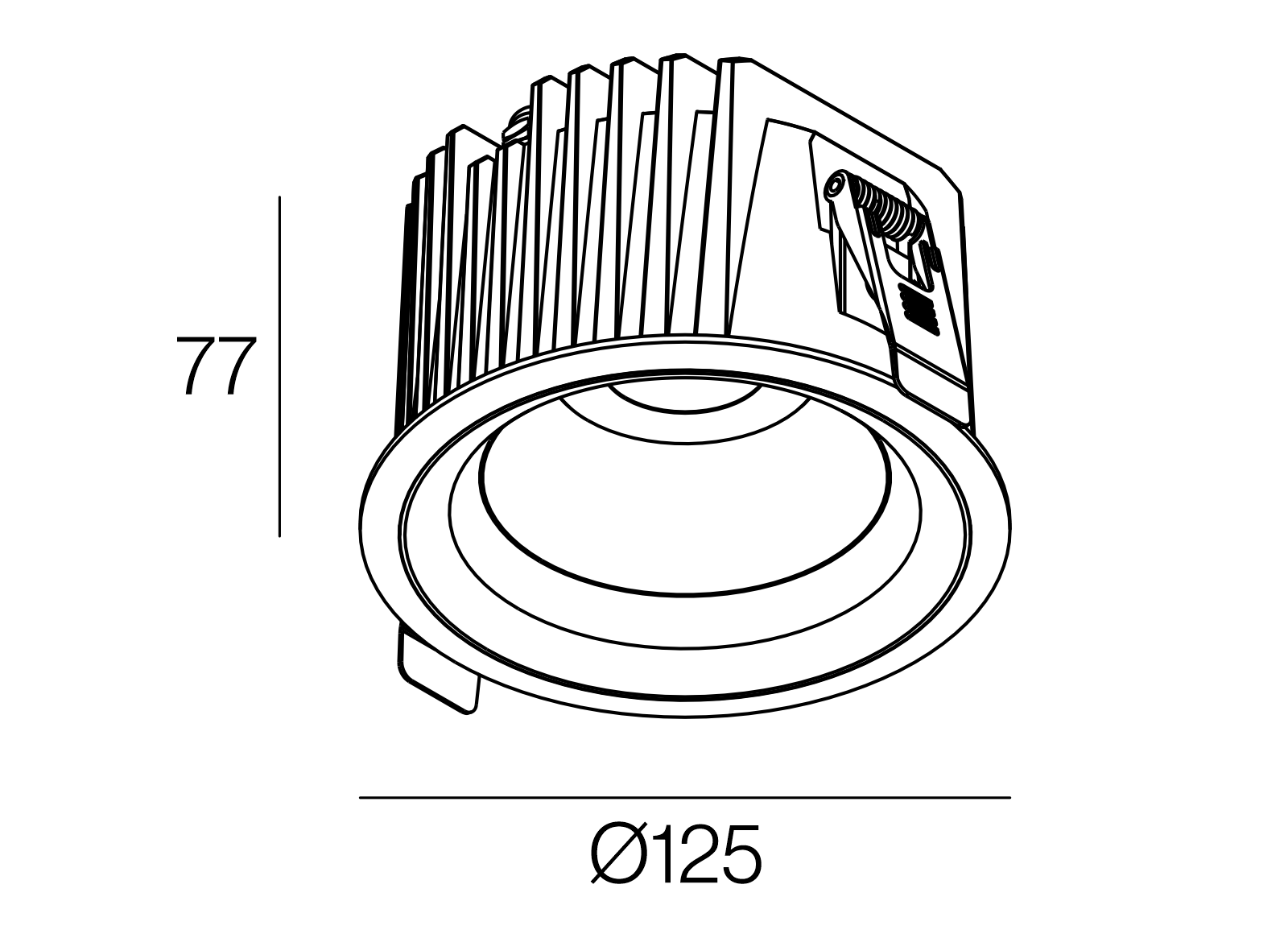

Cut out：φ115mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：86 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：NO

Light distribution：Direct

Beam angle：18°/25°/39°/50°

Ingress protection：IP65

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

White+Bright Silver

White + Gun Black

White

Gold

Accessories
Download

IES LDT Specifications Drawings Installation instructions

Scenes

Beam angle

18°

25°

39°

50°

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 25° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 39° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 50° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
