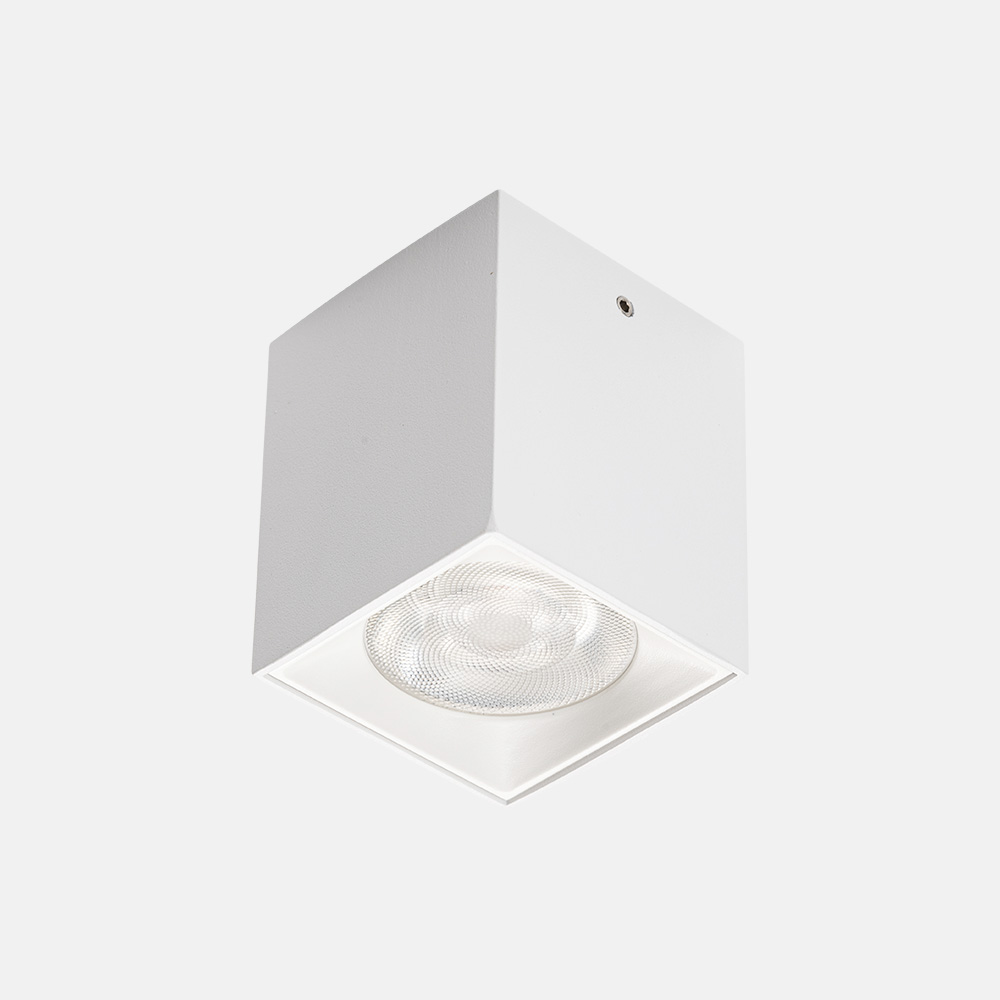

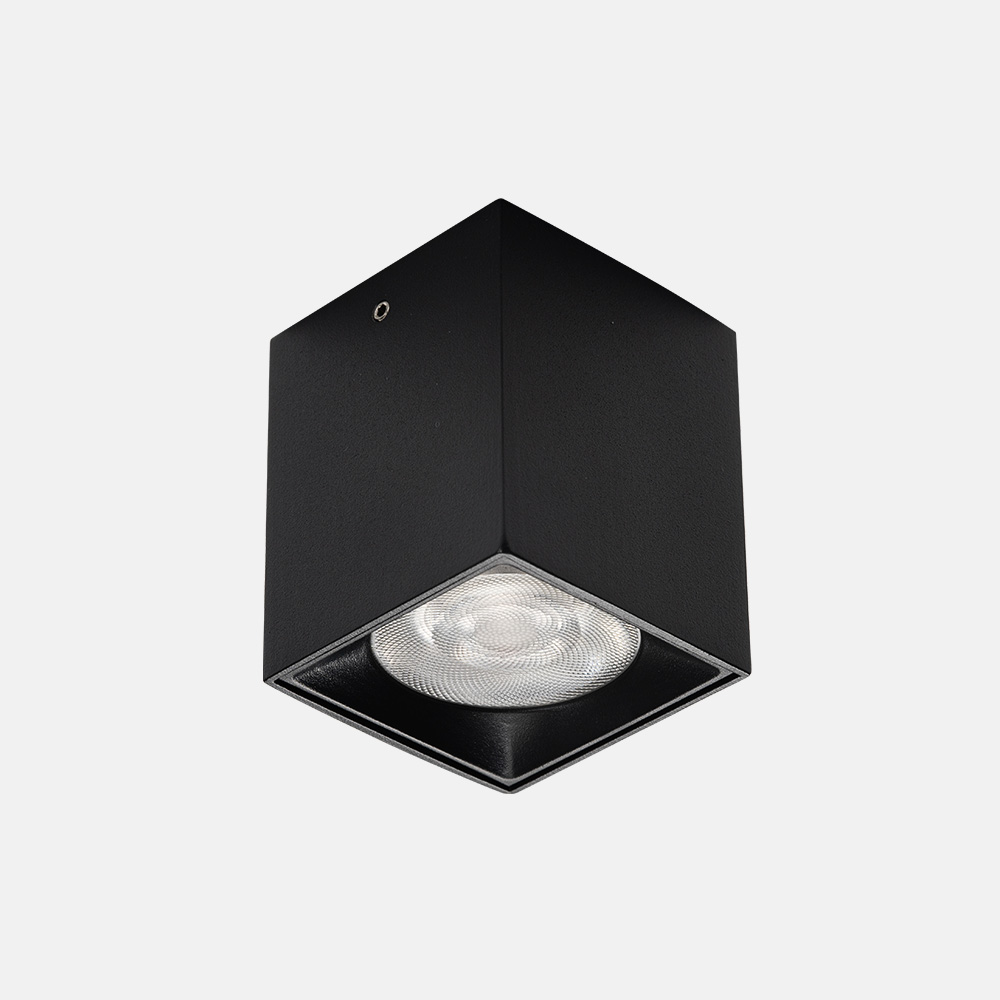

Cube
03.204B01000

The stable DOB solution can be directly connected to the AC power for use, which realizes the extremely simple structure of the lamp, the diversified selection of optical effects, and the scope of practical scenarios is improved. Different shapes can be made according to the collocation. It is small and exquisite, and can be controlled with one hand, which can realize the creation of space and show the value of space.

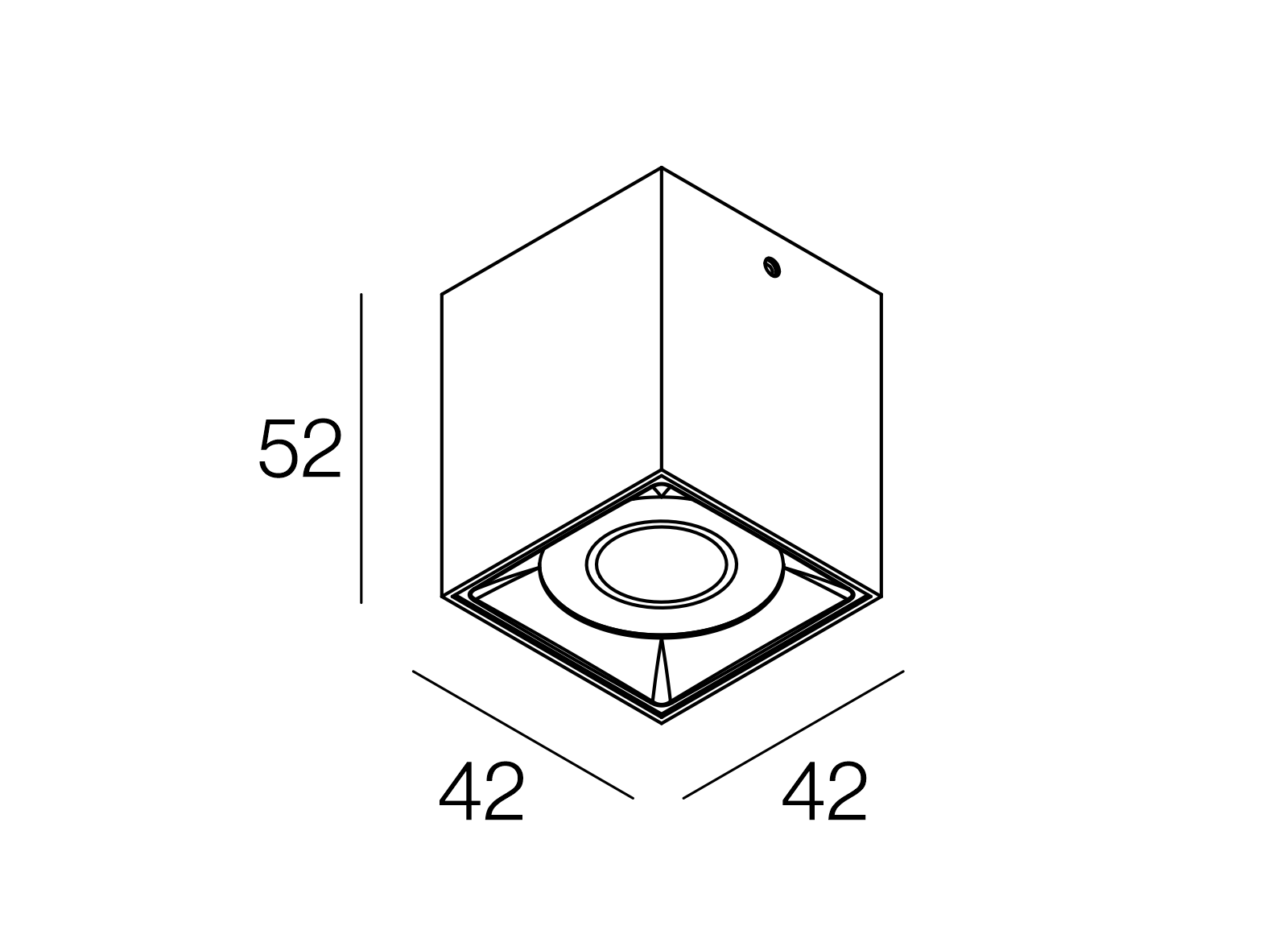

Specification

03.204B01000

Power:4W/5W

Installation method:Ceiling

Cut out:NO

Dimming: TRIAC

Frequency:50/60HZ

LED:DOB

Lumen:53lm/w

CCT:2700K/3000K/3500K/4000K

CRI:≥90

SDCM:<3

Adjustibility:NO

Light distribution:Direct

UGR:<19

Beam angle:38°/48°

Protection class:IP20

Material:Aluminum

Environment temperature:-25°C~50°C

LED life Time:  35,000h~ 50,000h - L80

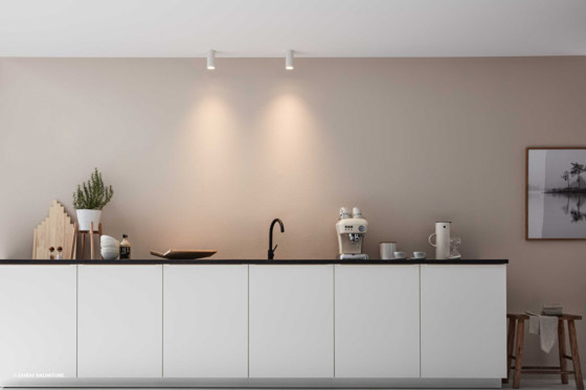

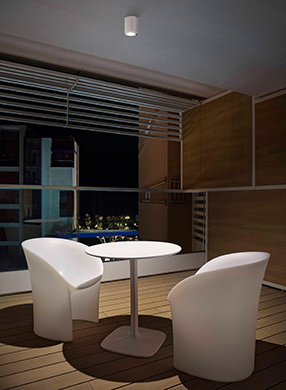

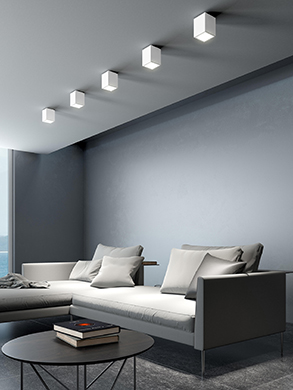

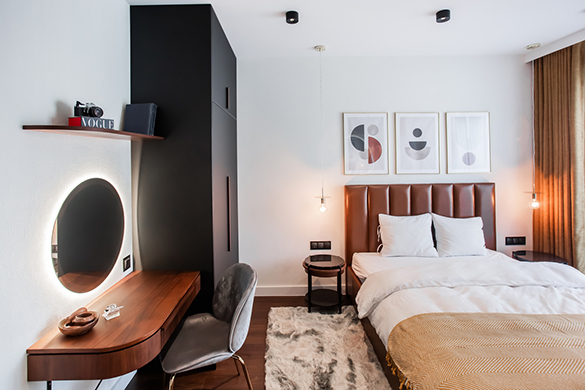

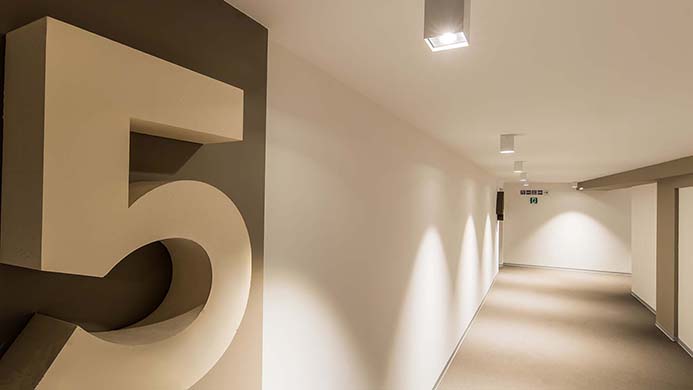

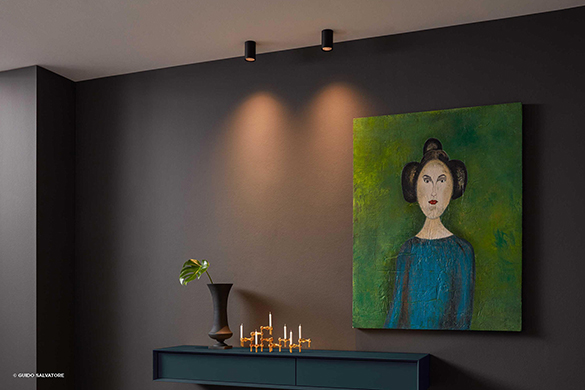

Scenes

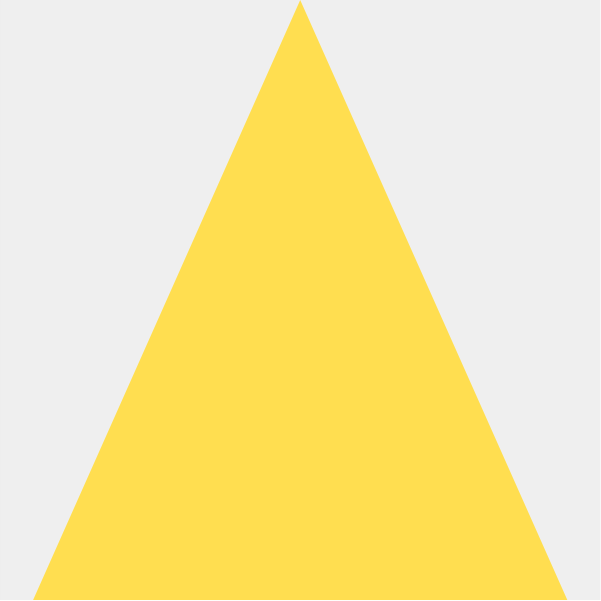

Beam angle

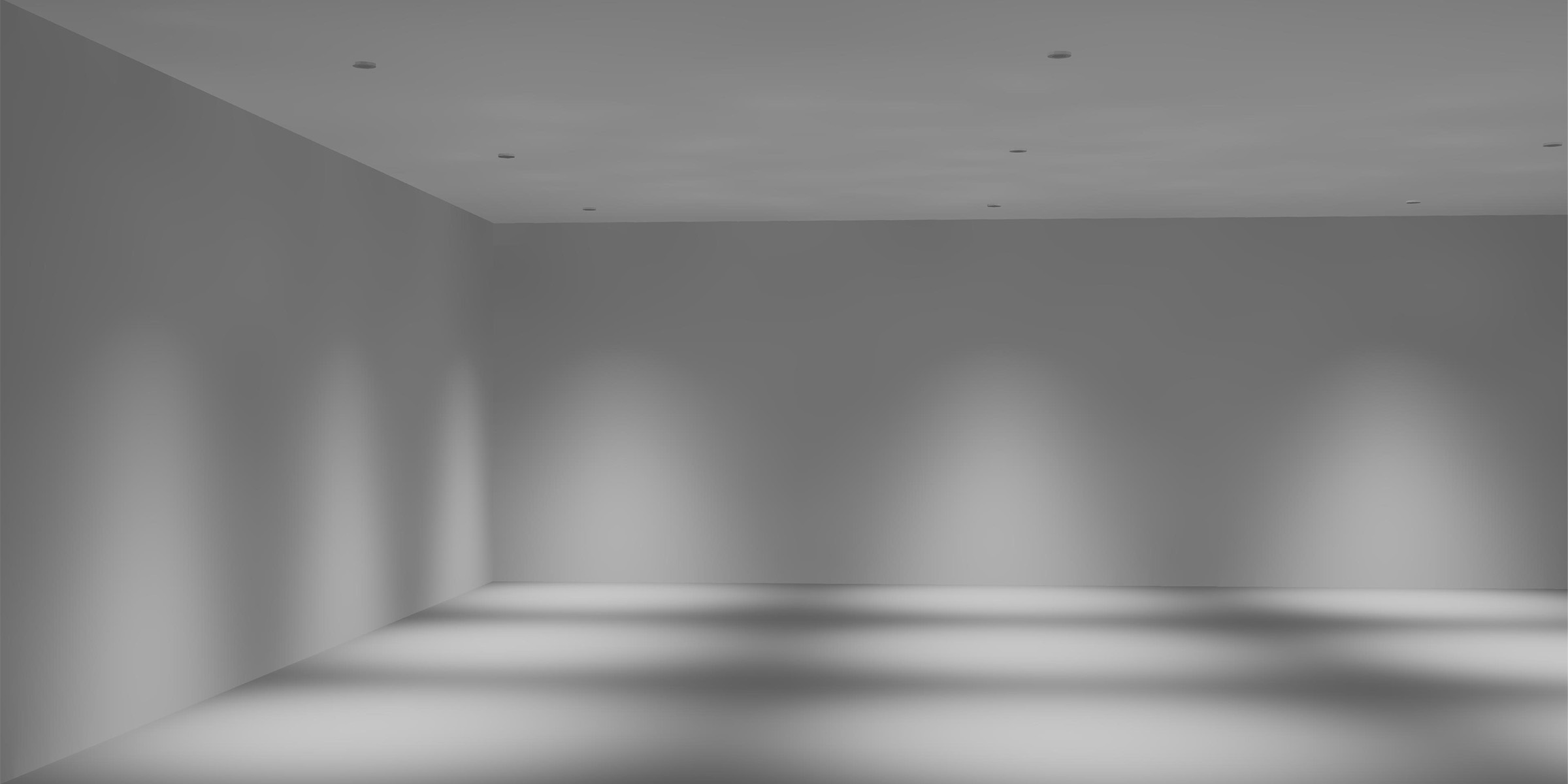

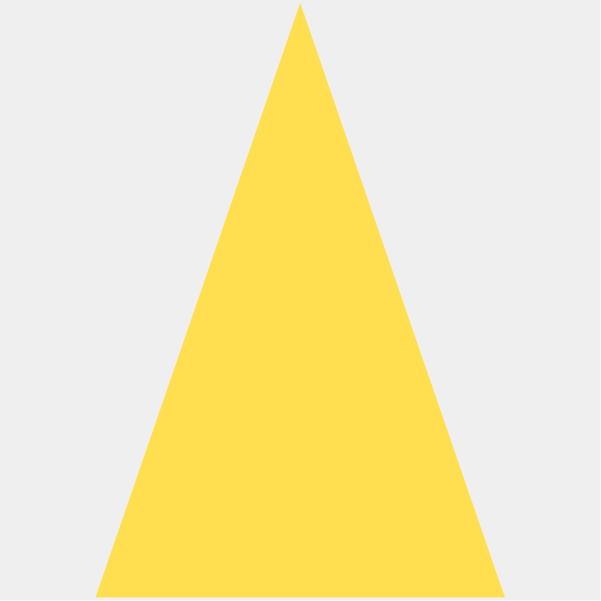

Applicable Instructions for 38° Illumination



This is an angle suitable for basic lighting,
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products
Lattice01.01A03R
This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
