Hera
03.005A01000

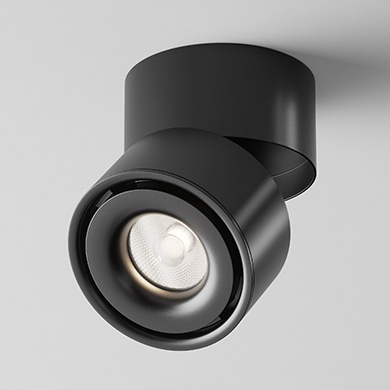

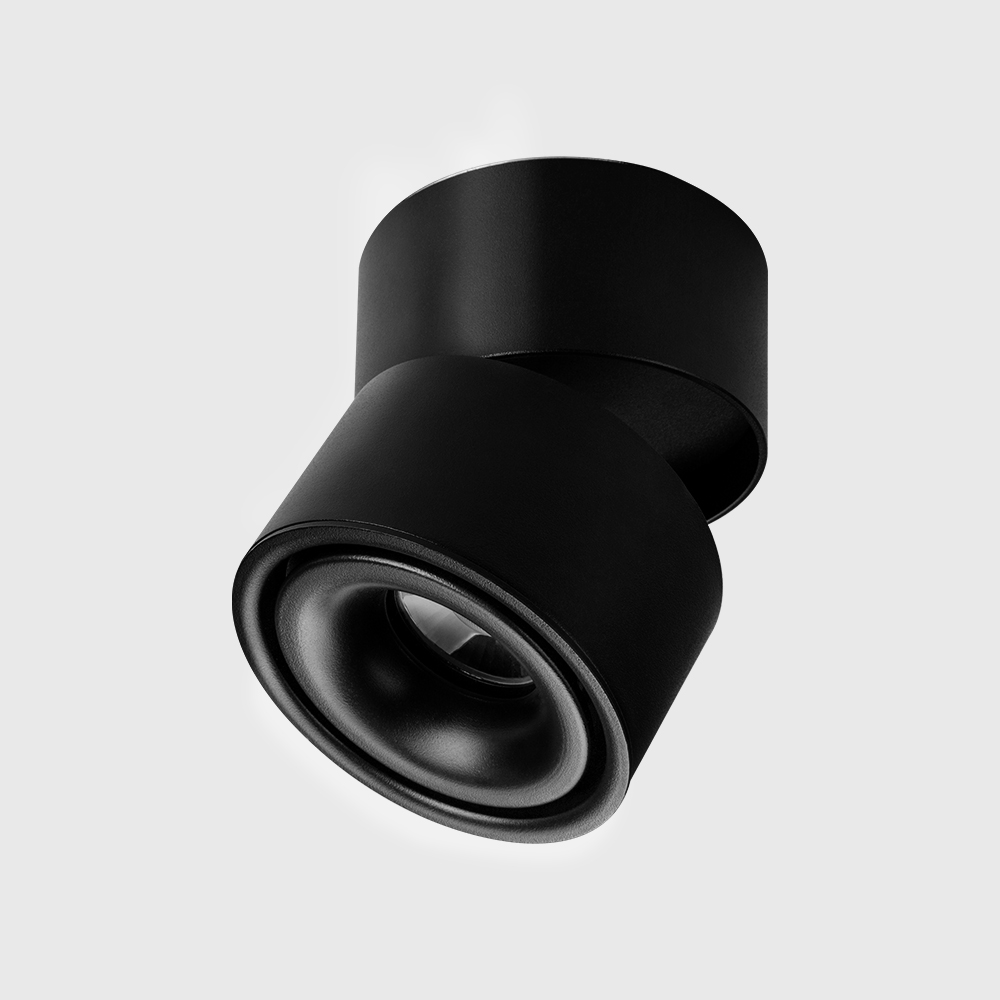

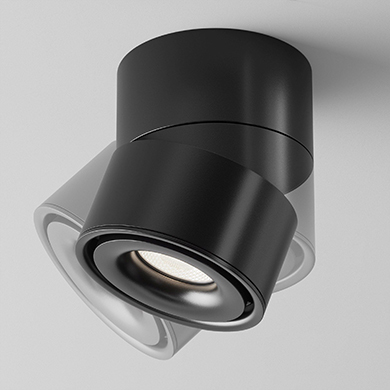

Hear is a ceiling spotlight.‎ Metal body.‎ Swivel mechanism for adjusting the light flux.‎ Some models are dimmable.‎ LED light source.‎

Specification

03.005A01000

Power:10W / 12W

Installation method:Ceiling

Cut out:NO

Dimming:Non-DIM / TRIAC

Frequency:50/60HZ

LED:COB

Lumen:79lm/w

CCT:2700K/3000K/3500K/4000K

CRI:≥90S

SDCM:<3

Adjustibility:355° Rotation | 82.5° Tilting

Light distribution:Direct

UGR:<19

Beam angle:26°

Protection class:IP20

Material:Aluminum

Environment temperature:-20°C~40°C

LED life Time:  35,000h~ 50,000h - L80

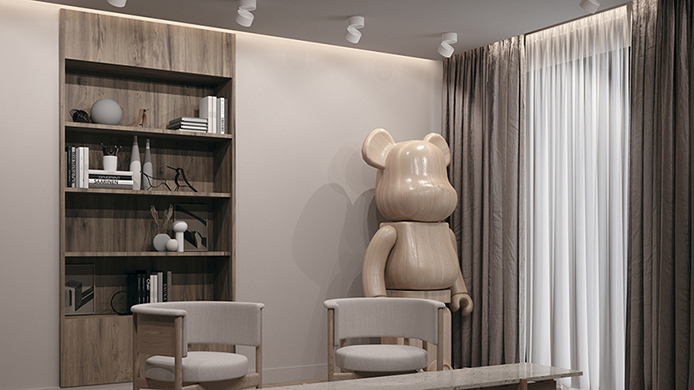

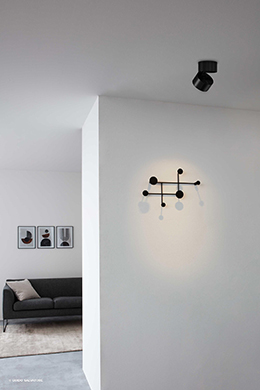

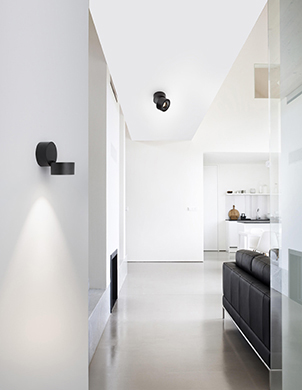

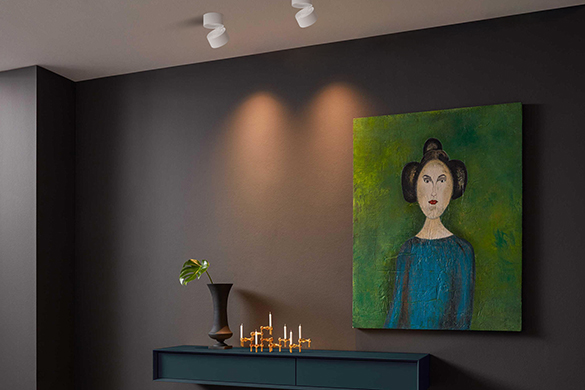

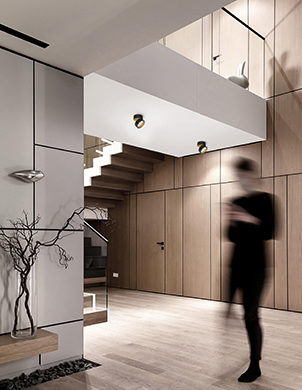

Scenes
Beam angle

Applicable Instructions for 26° Illumination



This is an angle suitable for basic lighting,
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
