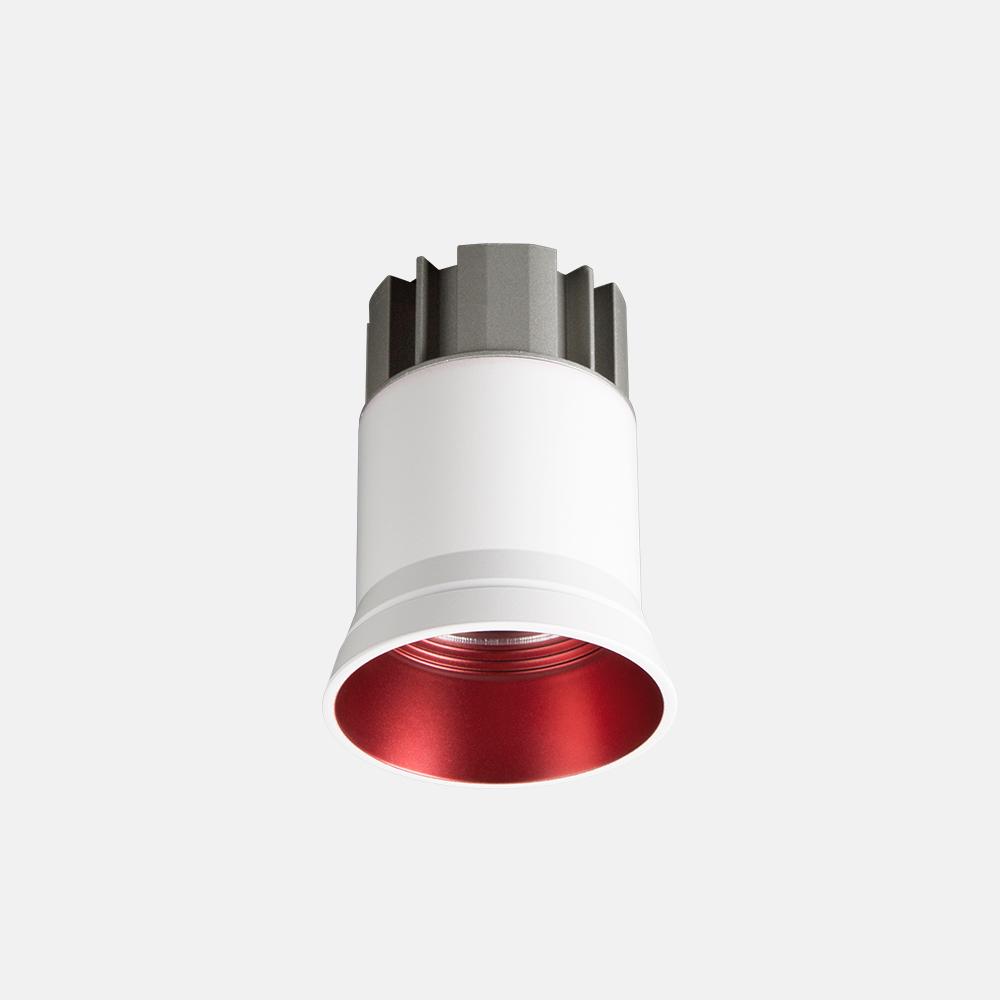

Godfish
01.176B01

The unique narrow side face ring desian breaks through the traditional way of expression . ich color matching , to meet the various theme space applications. 30° shading angle design , ugr < 10 , to provide you with more comfortable lighting space various dimming control schemes are available With dimming accuracy up to O.1 %


/ Products / Recessd ceiling light / Goldfish
Specification

01.176B01000

Power：8W /10W

Installation method：Recessed

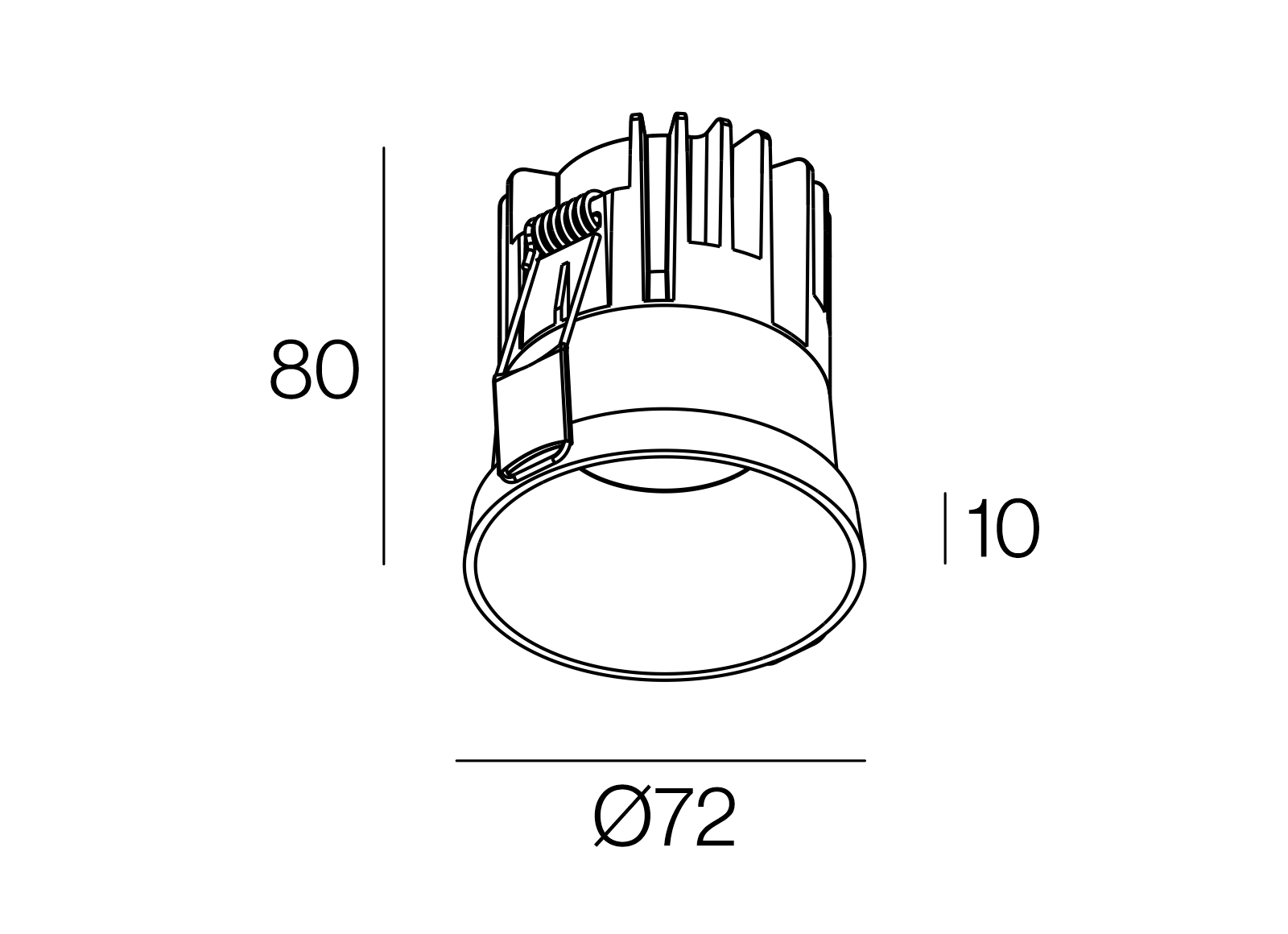

Cut out：φ65mm

Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE

Frequency：50/60HZ

LED：SMD

Lumen：80lm/w

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：NO

Light distribution：Direct

UGR：＜19

Beam angle：19°/26°/37°/55°

Protection class：IP20

Material：Aluminum

Environment temperature：-25°C~50°C

LED life Time：  35,000h~ 50,000h - L80

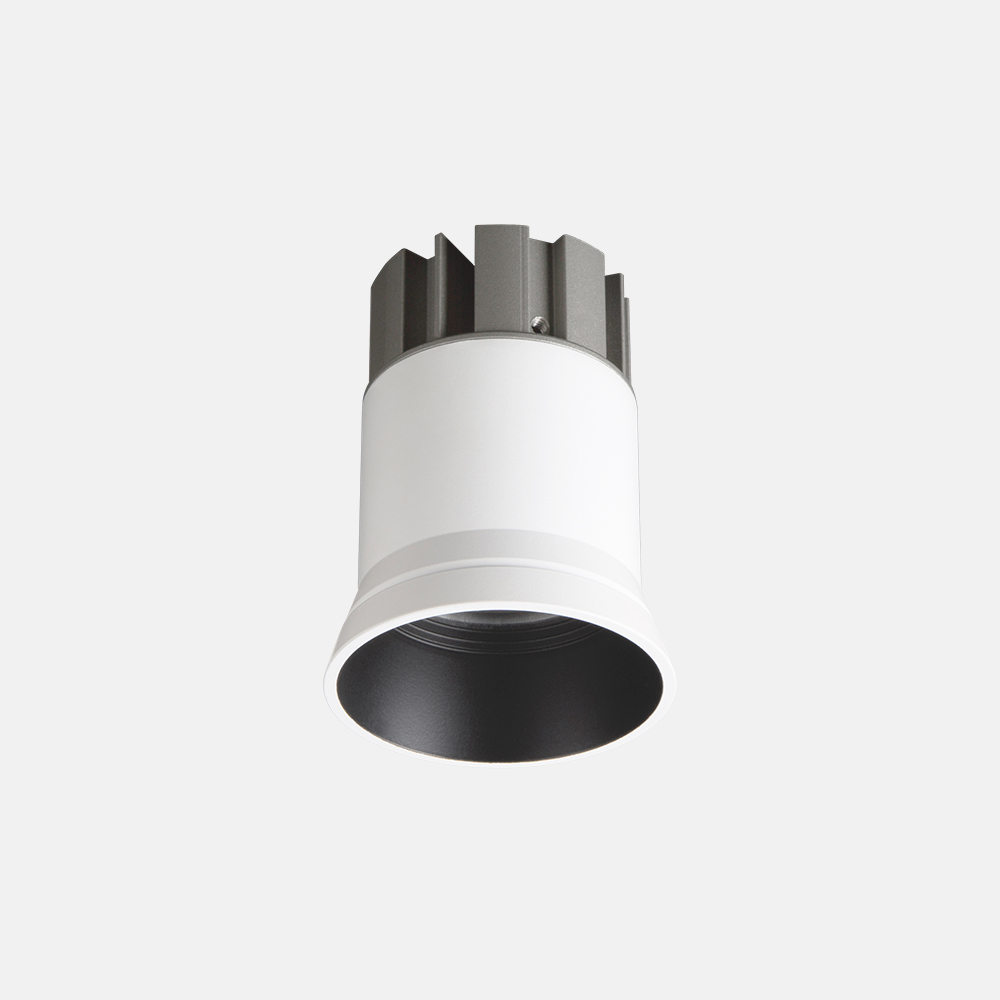

White+Black

White+Red

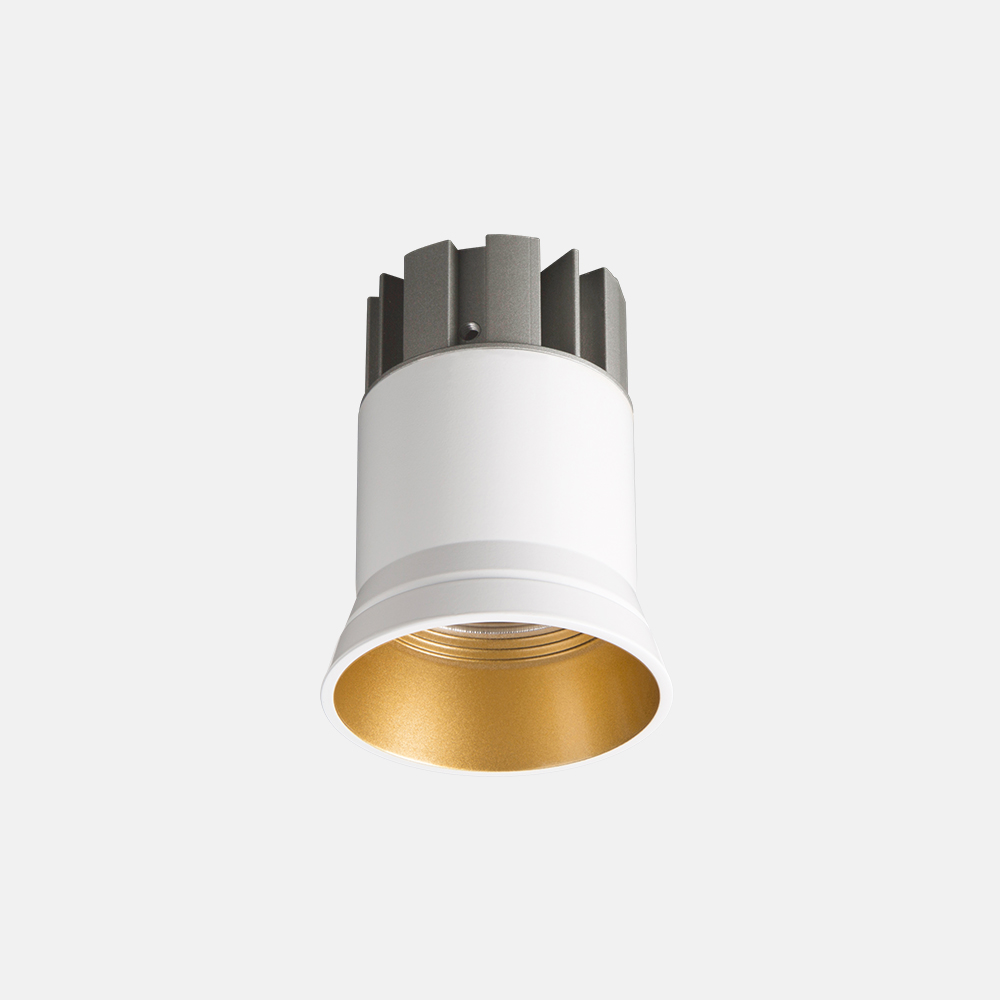

White+Gold

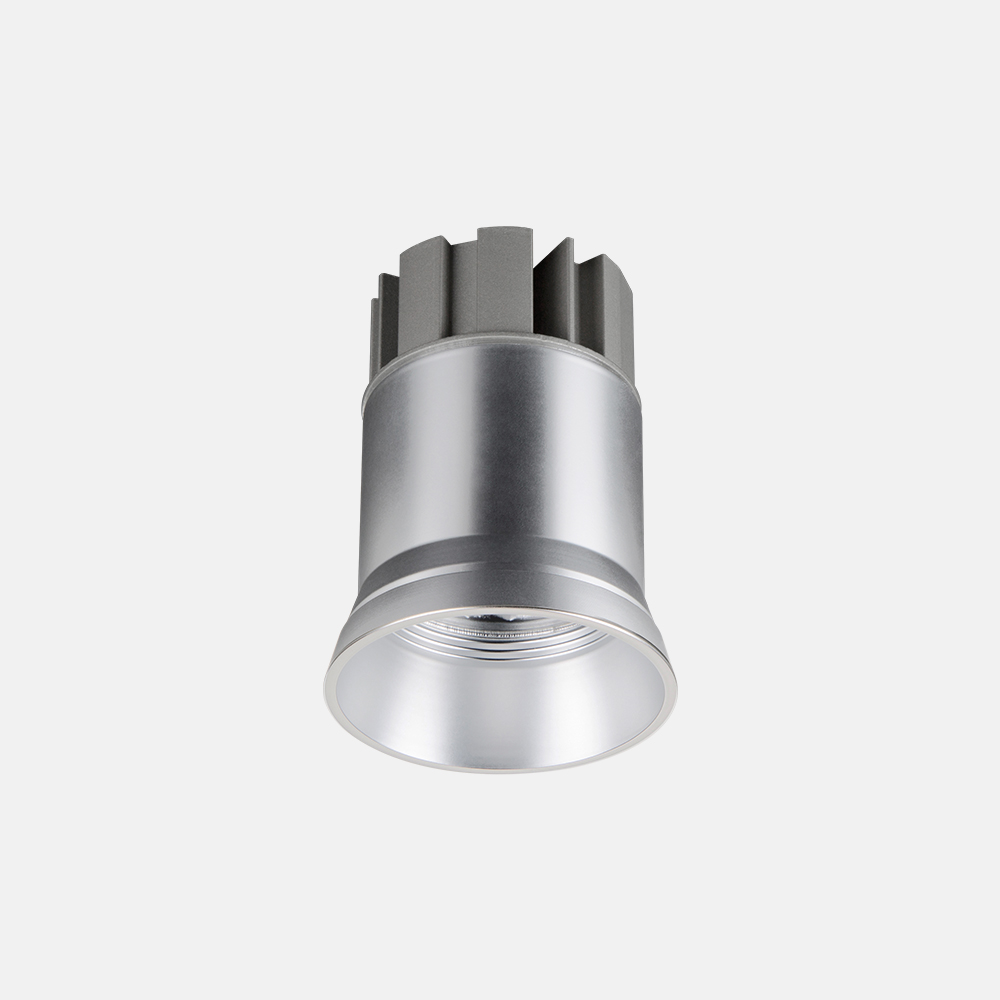

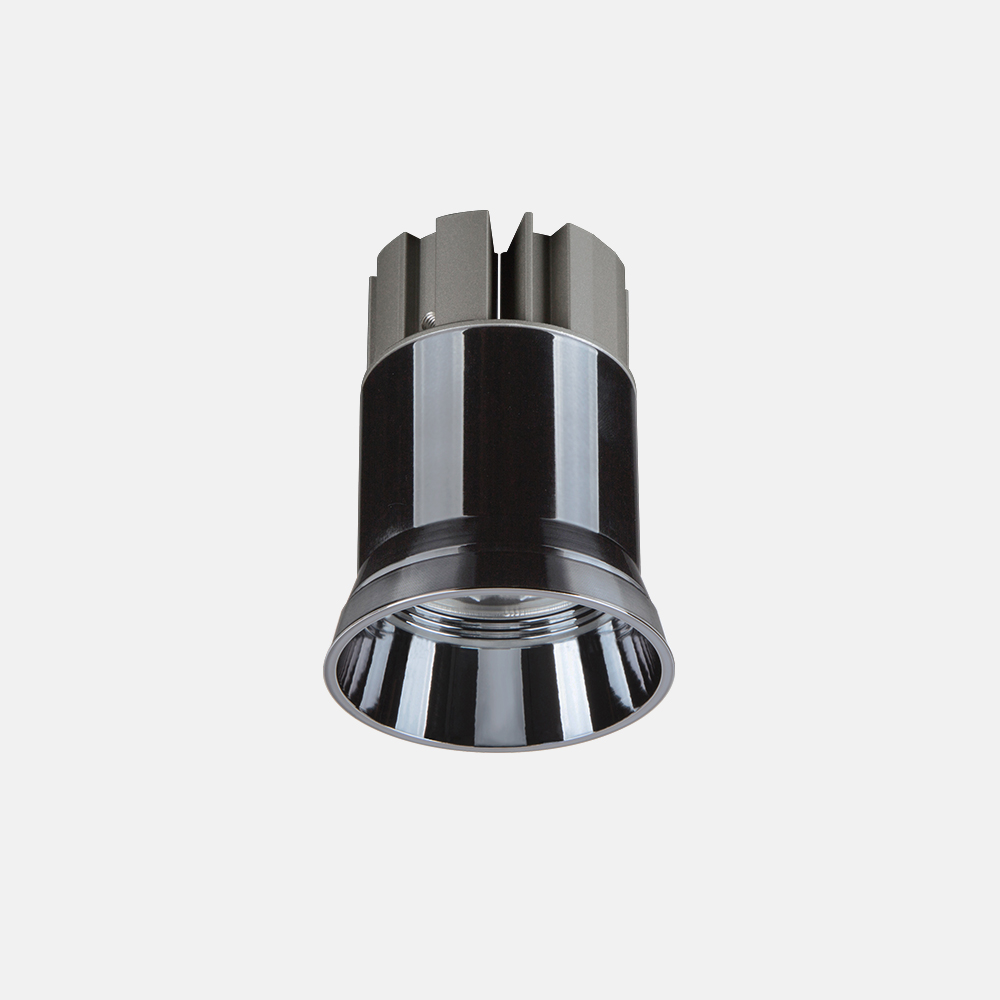

Bright Silver

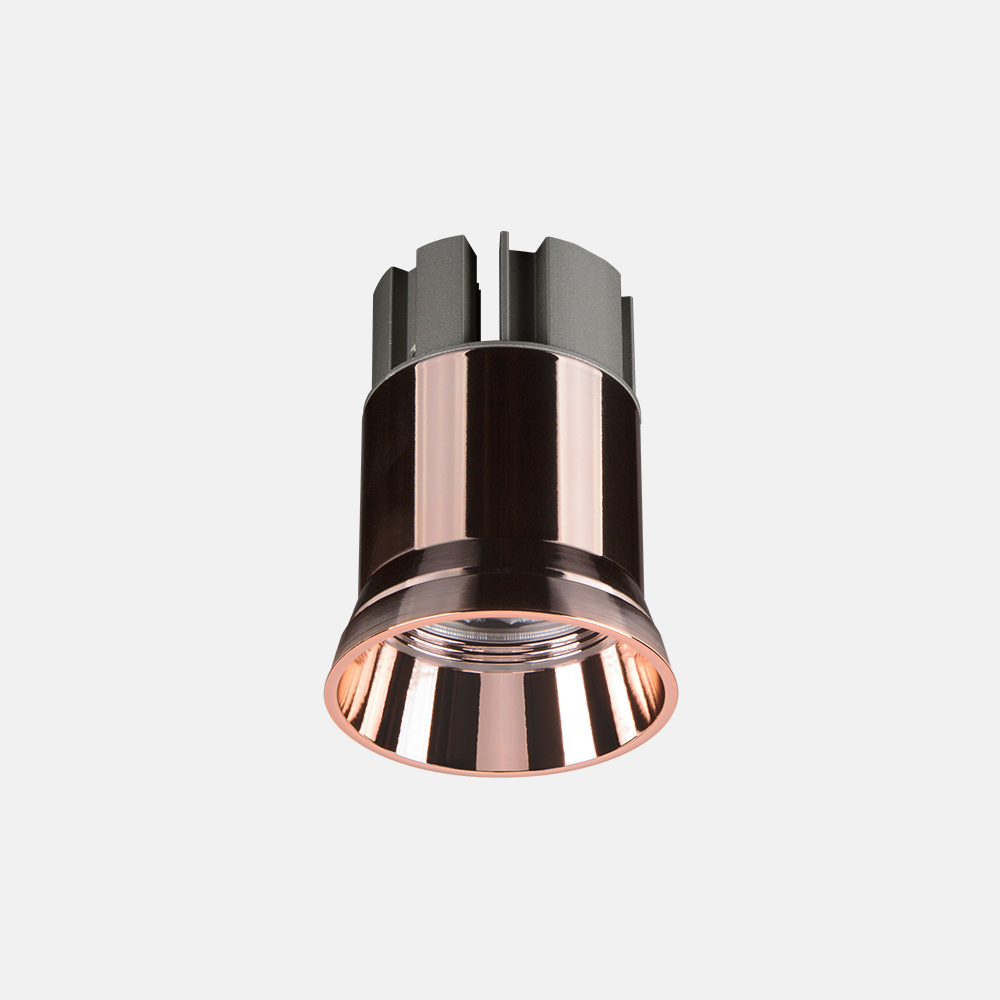

Rose Gold

White

Black

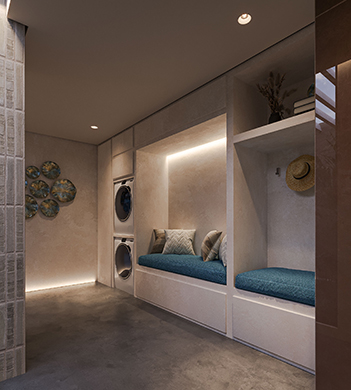

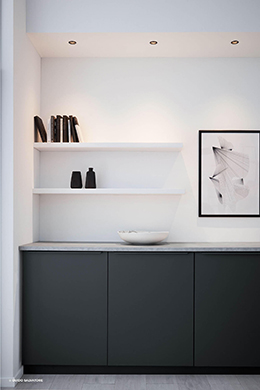

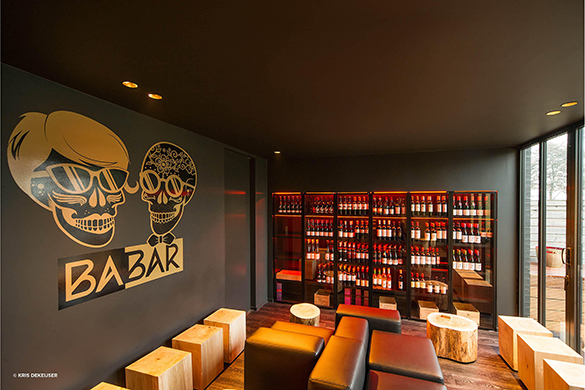

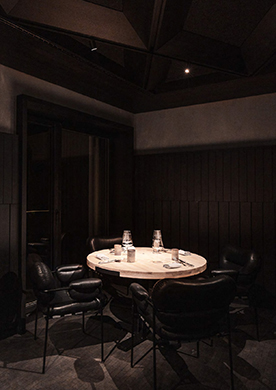

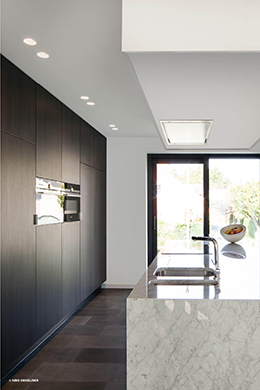

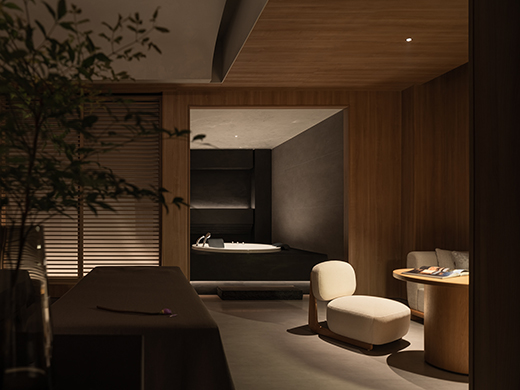

Scenes

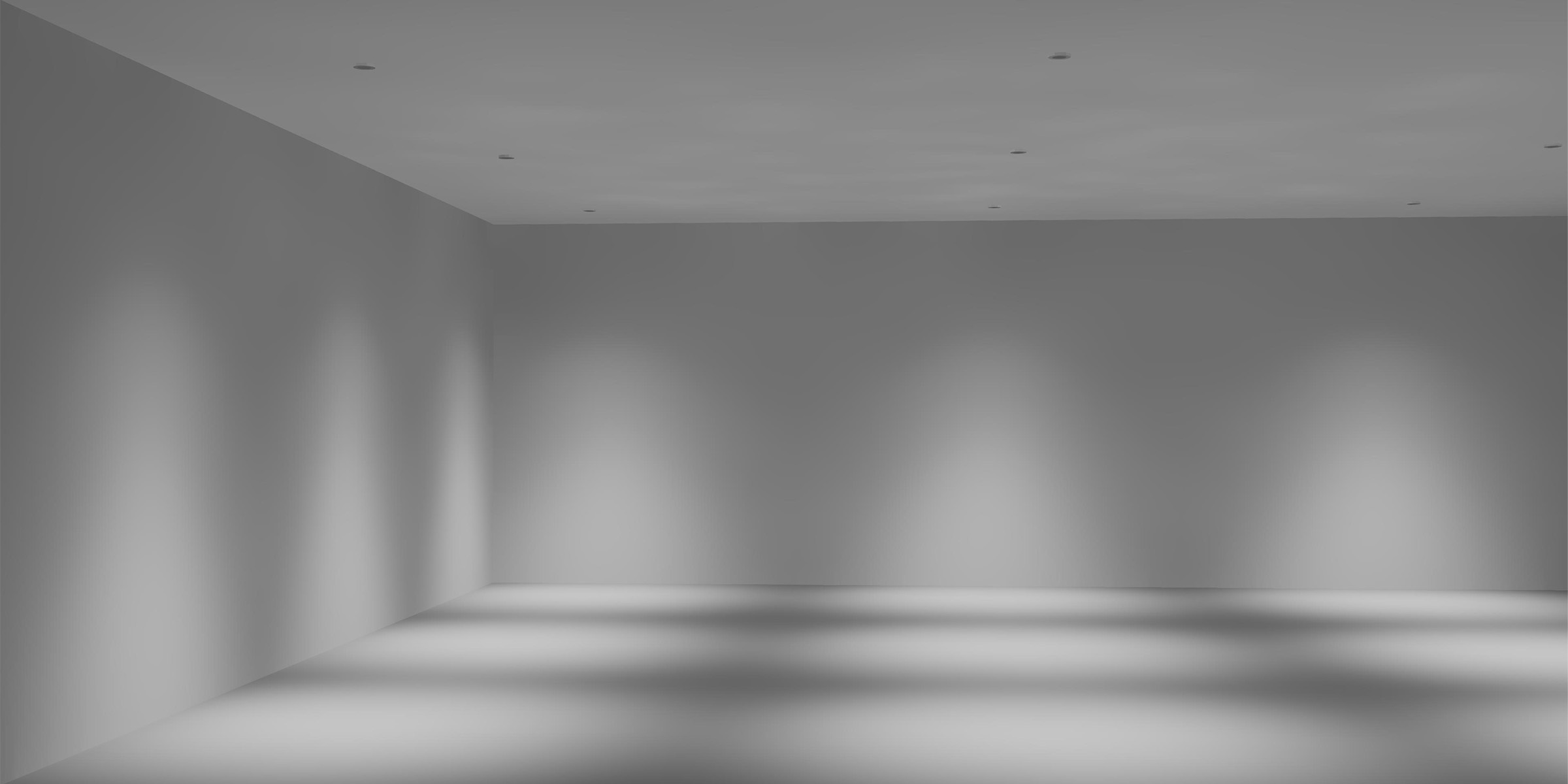

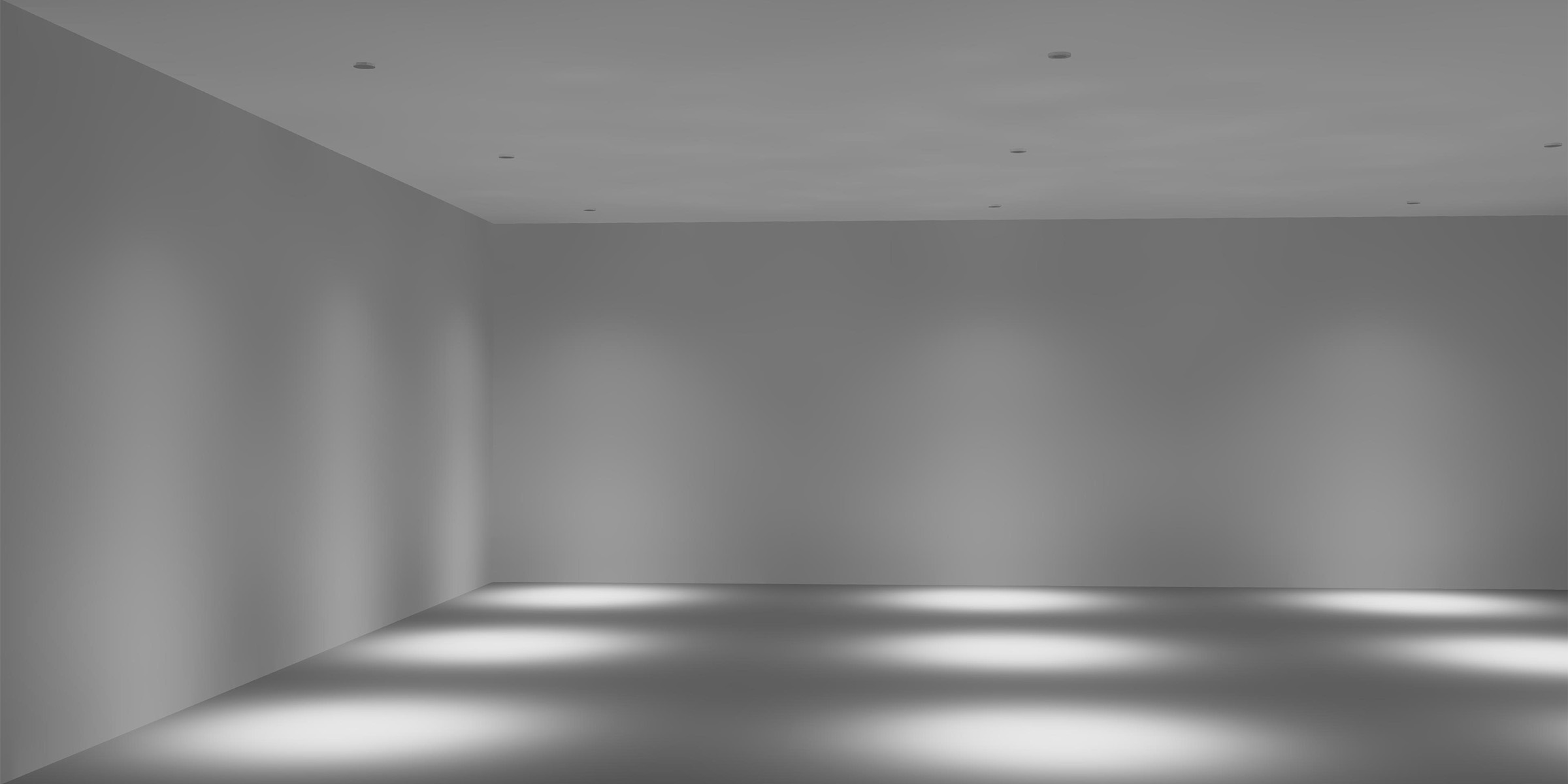

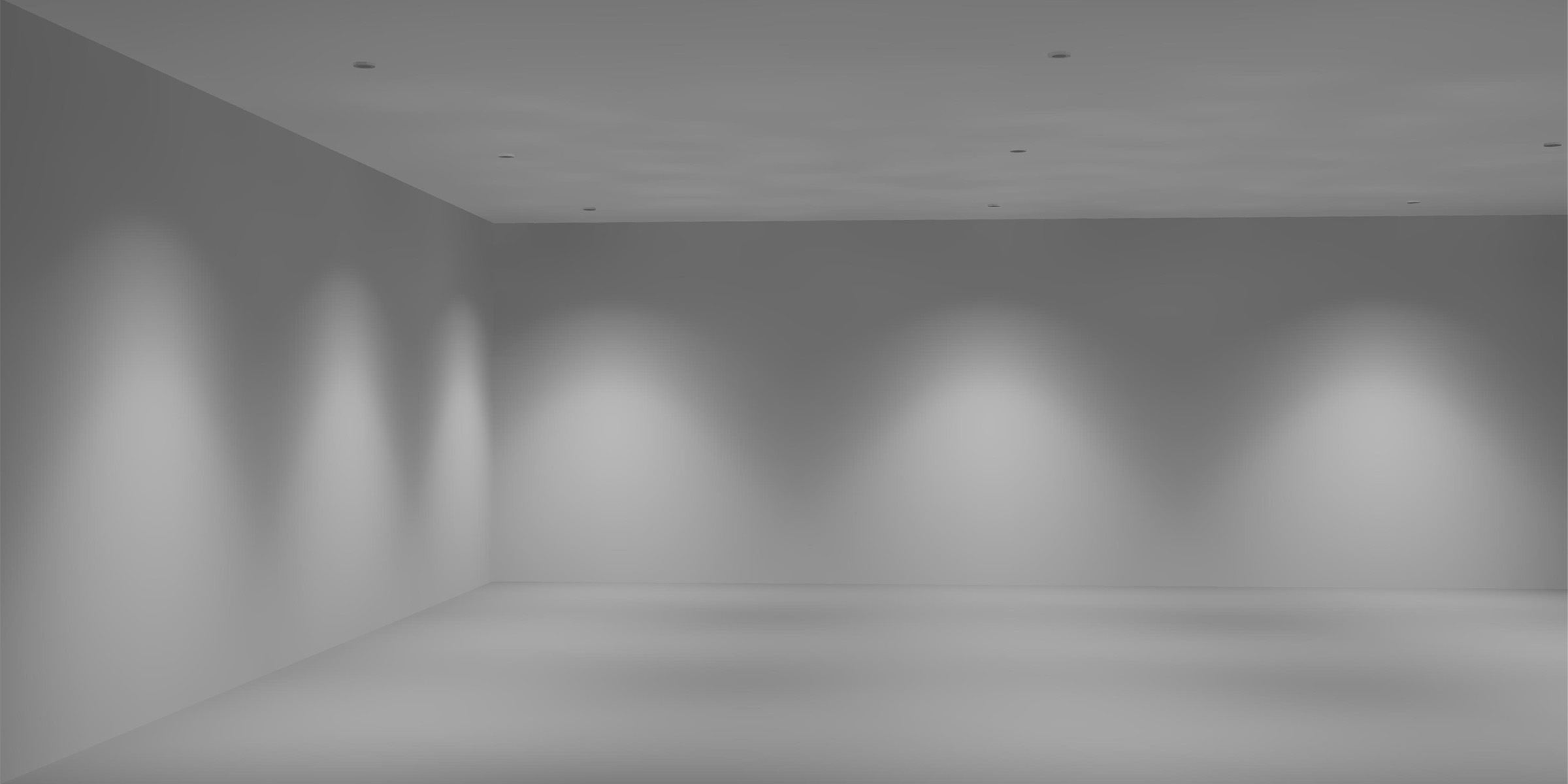

Beam angle

19°

26°

37°

55°

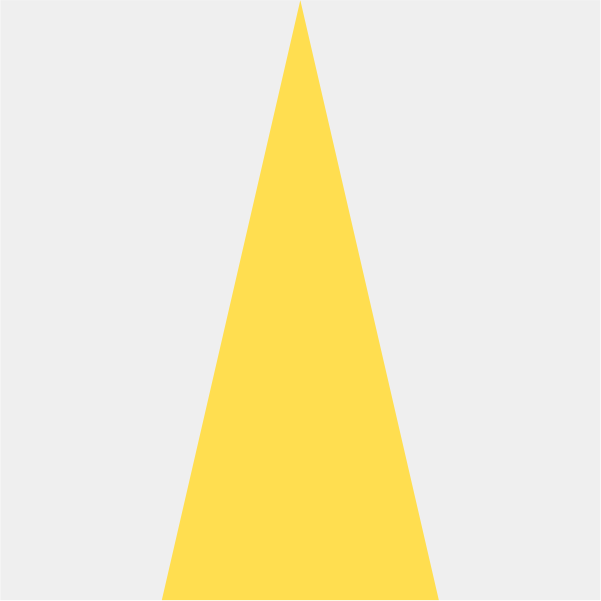

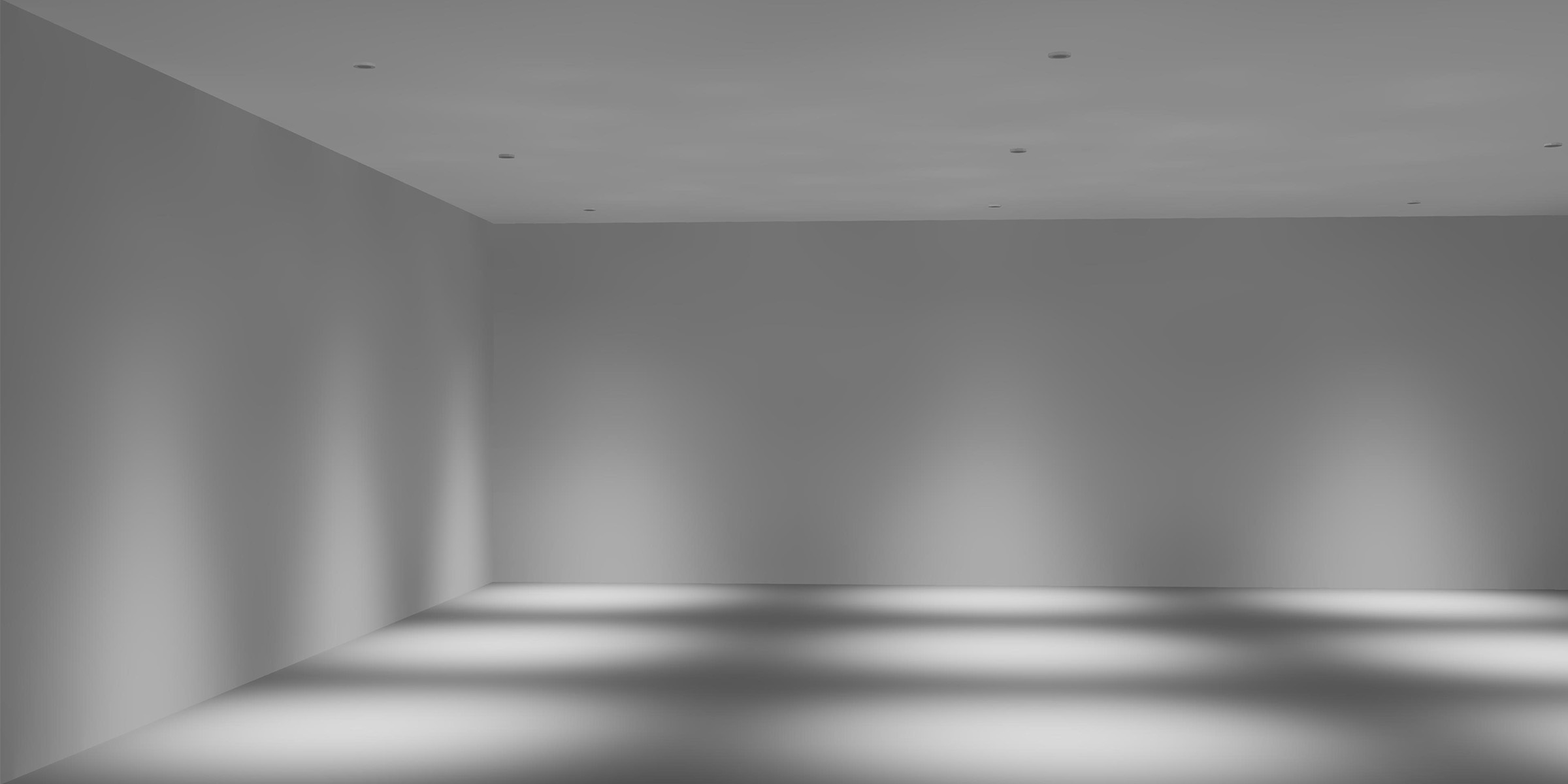

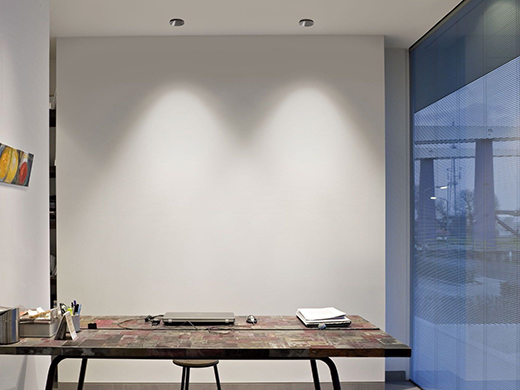

Applicable Instructions for 19° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products
Contact Us

Factory Add:

No.13 Lianbao Road,Shengfeng Community,

Xiaolan Town, Zhongshan City.

Tel:

+8676022389158
+86760 22382108

Lattice01.01A03R

Black

grown

blue

red

gray

This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
