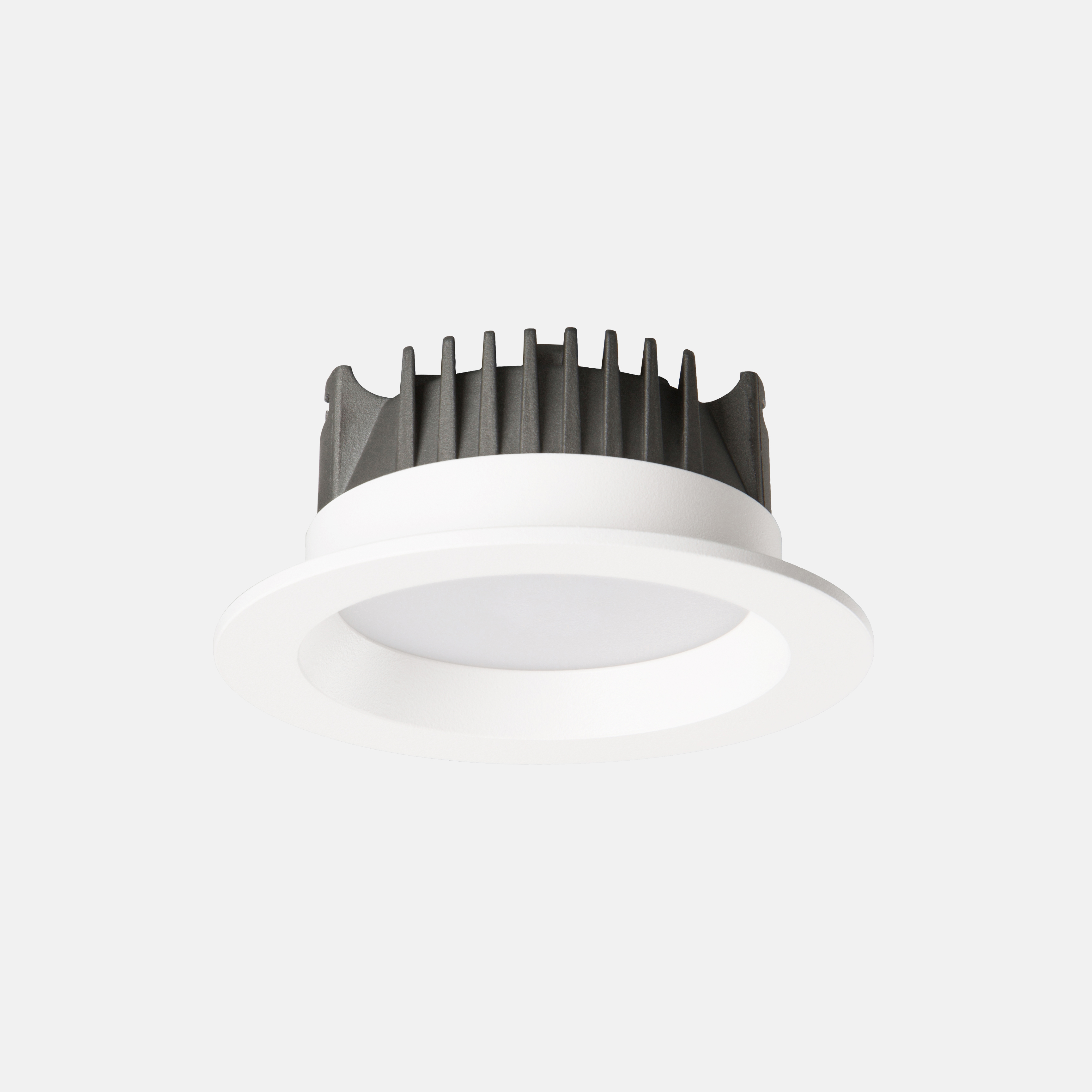

NEOX
01.170B01

Create soft light effect , protect the eyes more intimately ,

and bring more possibilities to the space.

Specification

01.170B01000

Power:3W/5W

Installation method:Recessed

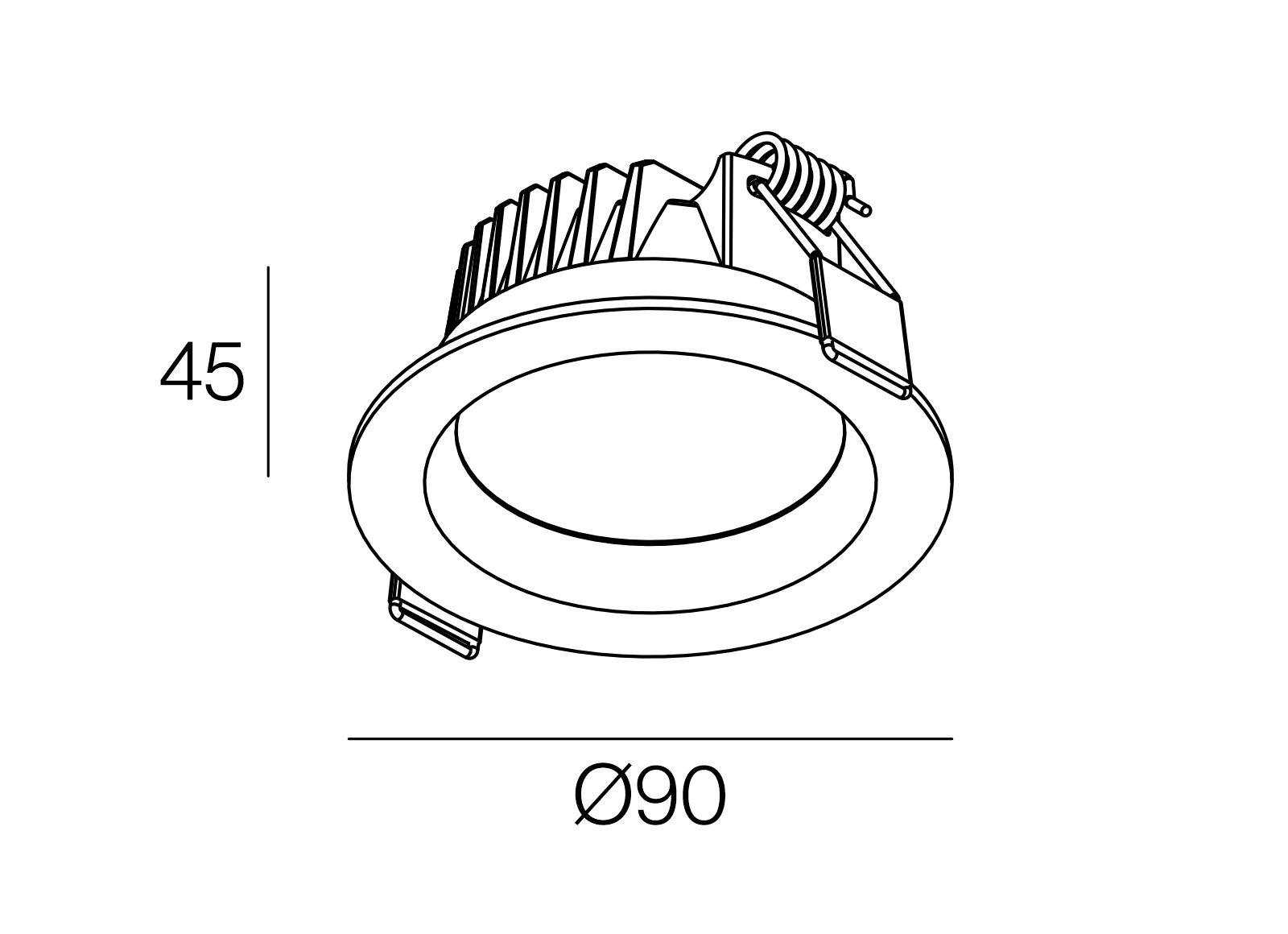

Cut out:φ75mm

Dimming:Non-DIM / TRIAC / 0/1-10V /DALI / BLE /ZIGBEE

Frequency:50/60HZ

LED:SMD

Lumen:84lm/w

CCT:3000K/4000K/6000K

CRI:≥80/90

SDCM:<3

Adjustibility:NO

Light distribution:Direct

Beam angle:100°

Protection class:IP20

Material:Aluminum

Environment temperature:-20°C~40°C

LED life Time:  35,000h~ 50,000h - L80

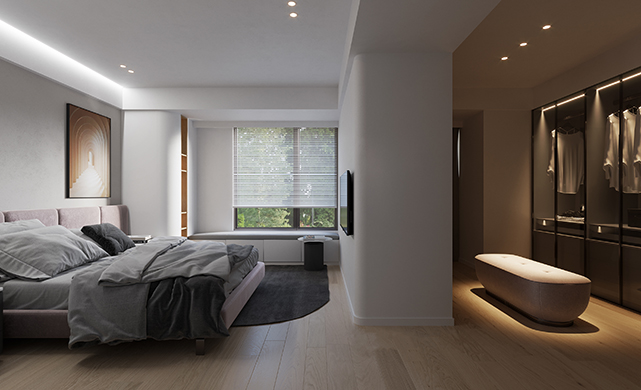

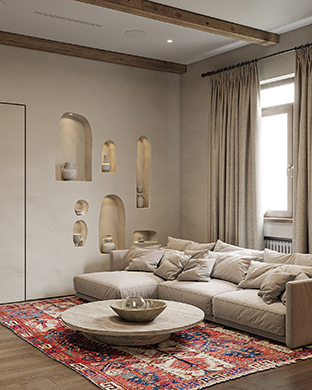

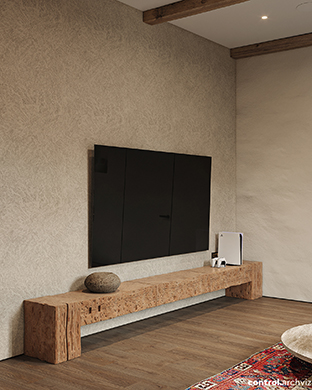

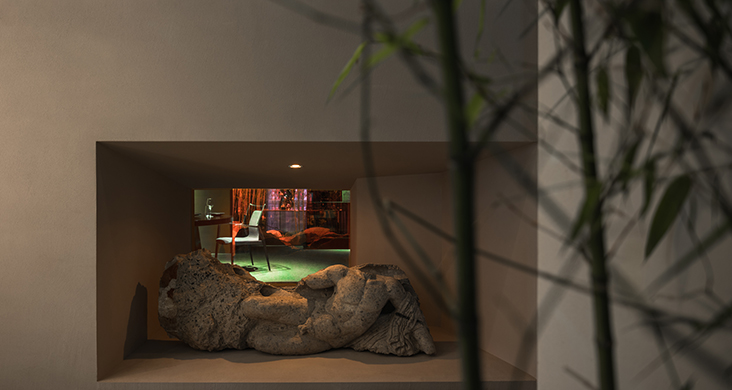

Scenes
Beam angle

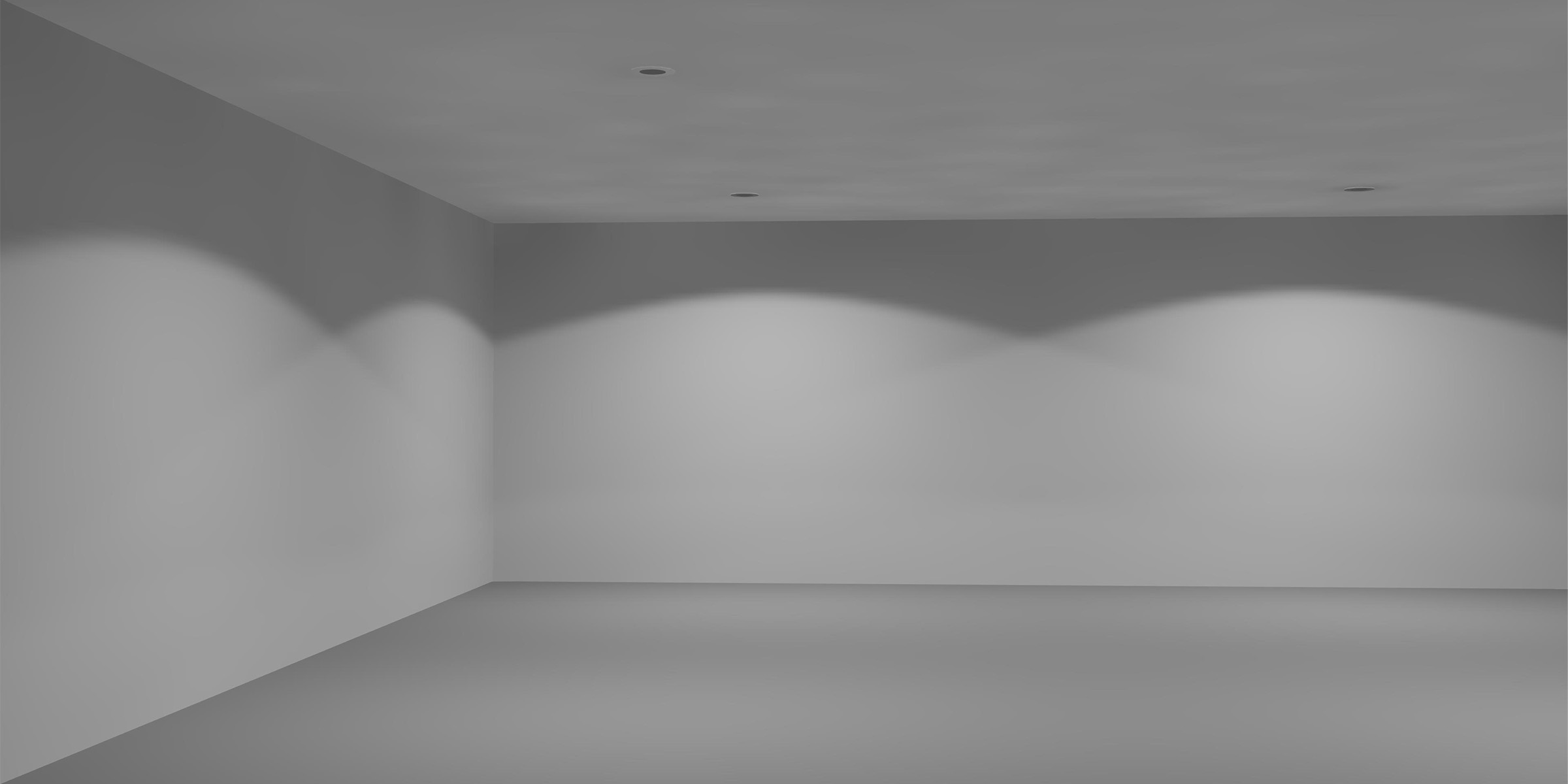

Applicable Instructions for 100° Illumination



This is an angle suitable for basic lighting,

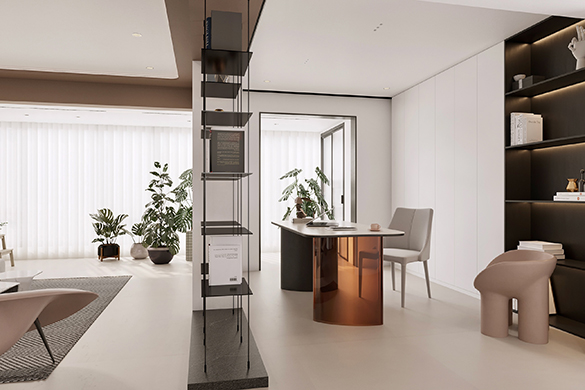

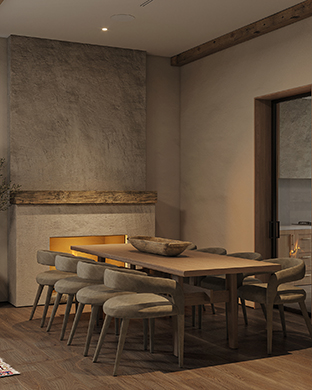

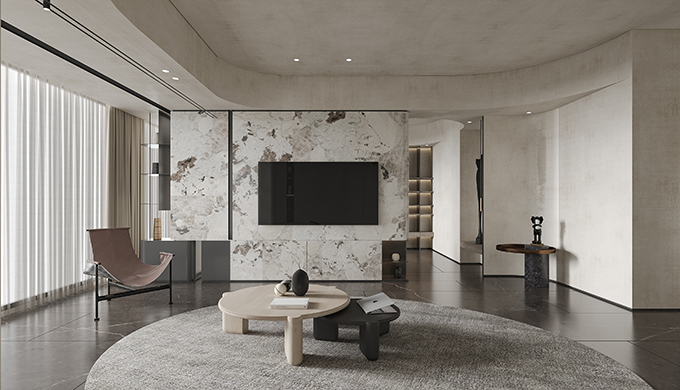

It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products
Lattice01.01A03R
This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
