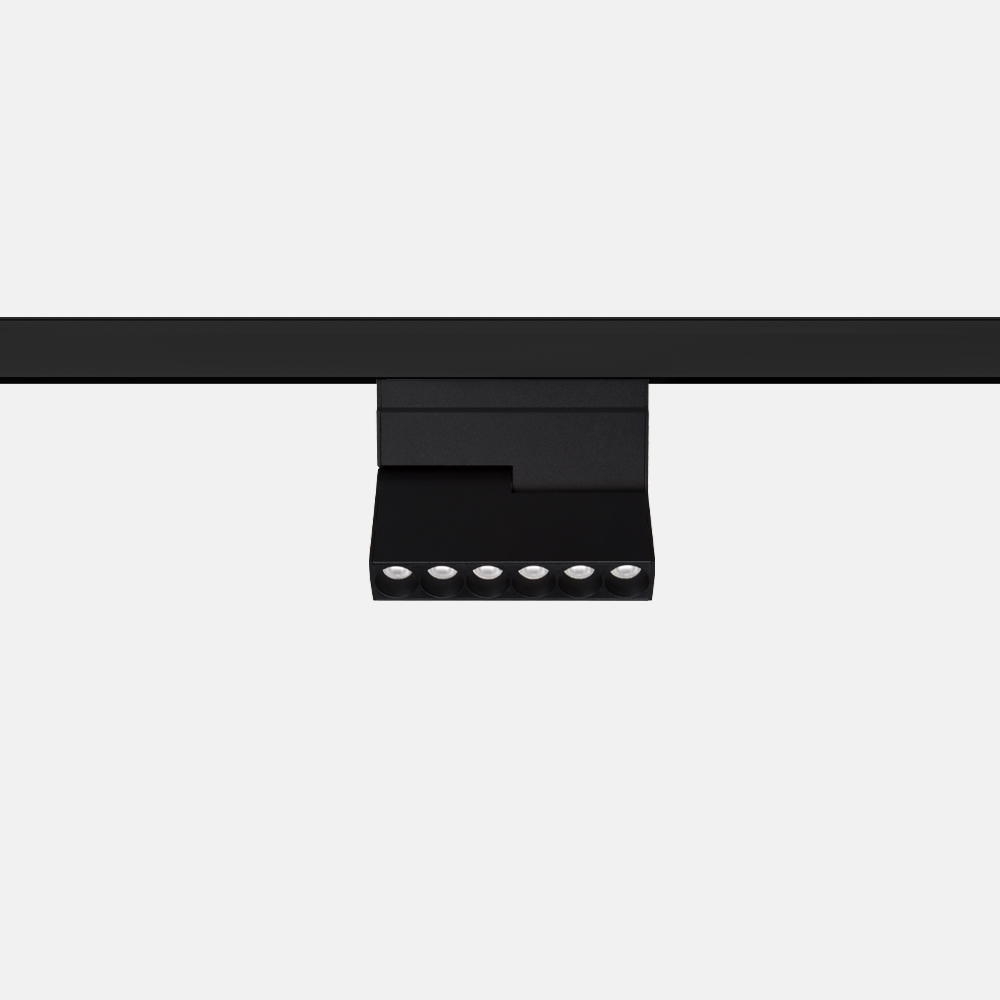

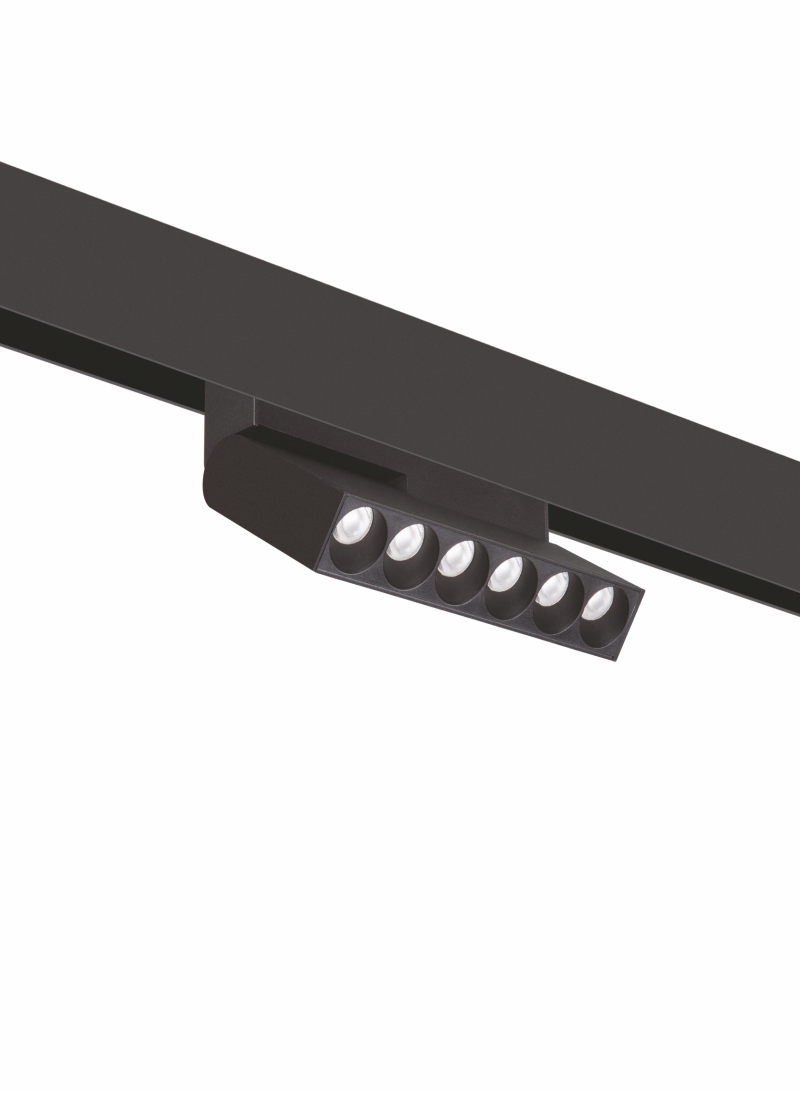

FLOD
07.007A06000

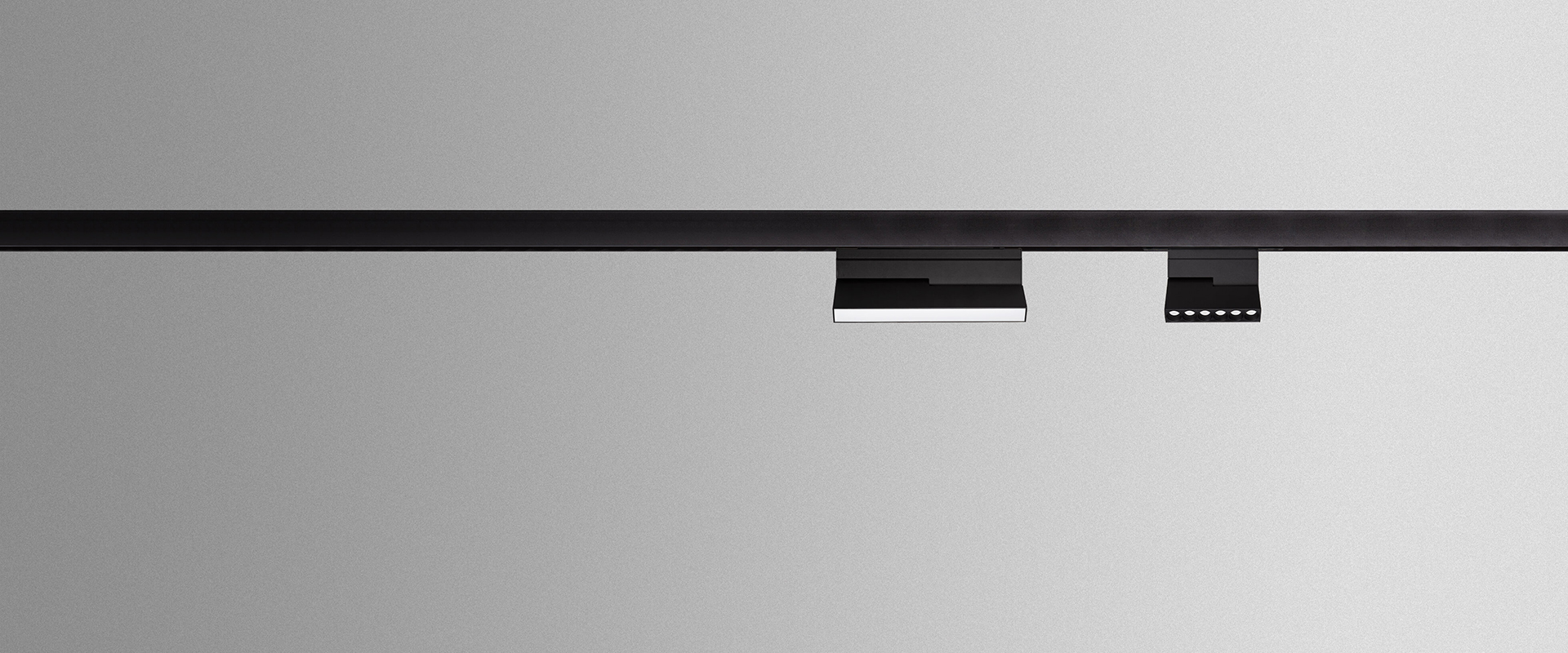

Magnetic lighting system as a new generation of lighting solutions, through the track layout consistent with the decoration style, lamps in the form of modules, convenient disassembly, flexible movement and other features of free combination. It not only attention to both the key lighting and basic lighting functions. Thoroughly change before need to cut hole, wiring and other troublesome installation way, totally accord with the trend of current minimalism style popularity.
/ Products / Mini Track light / FLOD
Specification

07.007A06000

Power：10W

Installation method：Mini Track

Options：Non-dim,  0/1-10V,  DALI,  Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：95 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：90° Tilting

Light distribution：Direct

Beam angle：18°/23°/35°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Black

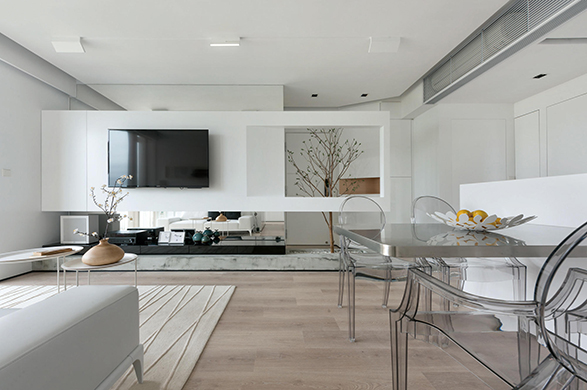

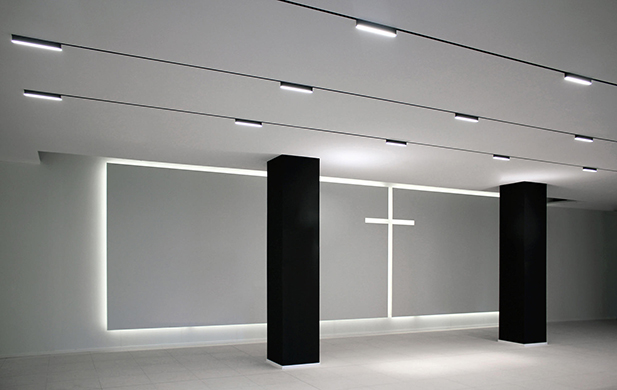

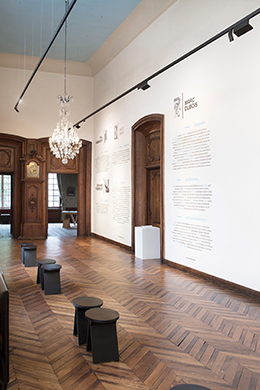

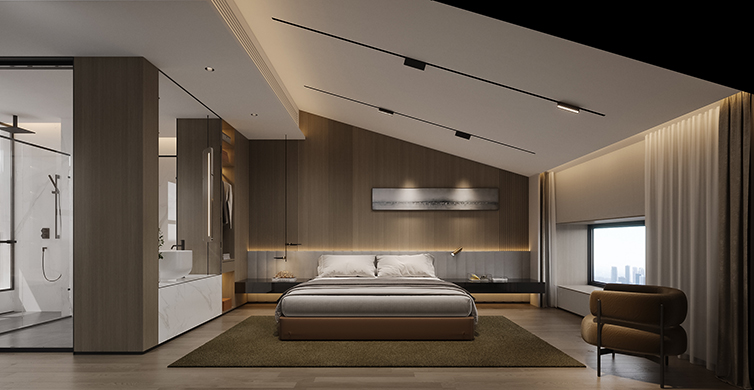

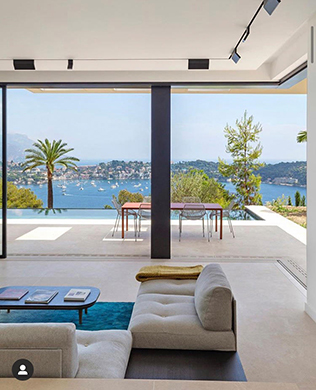

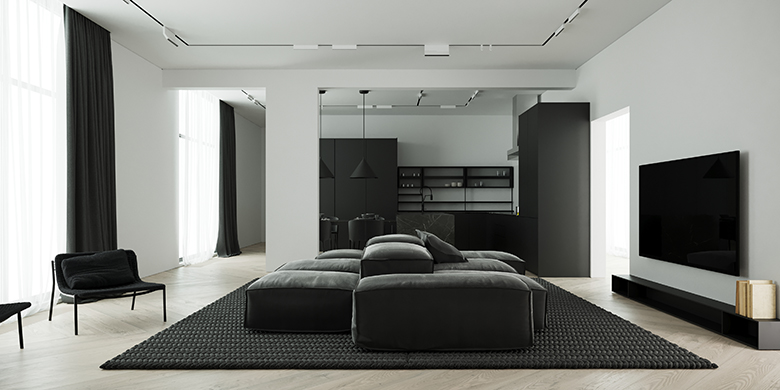

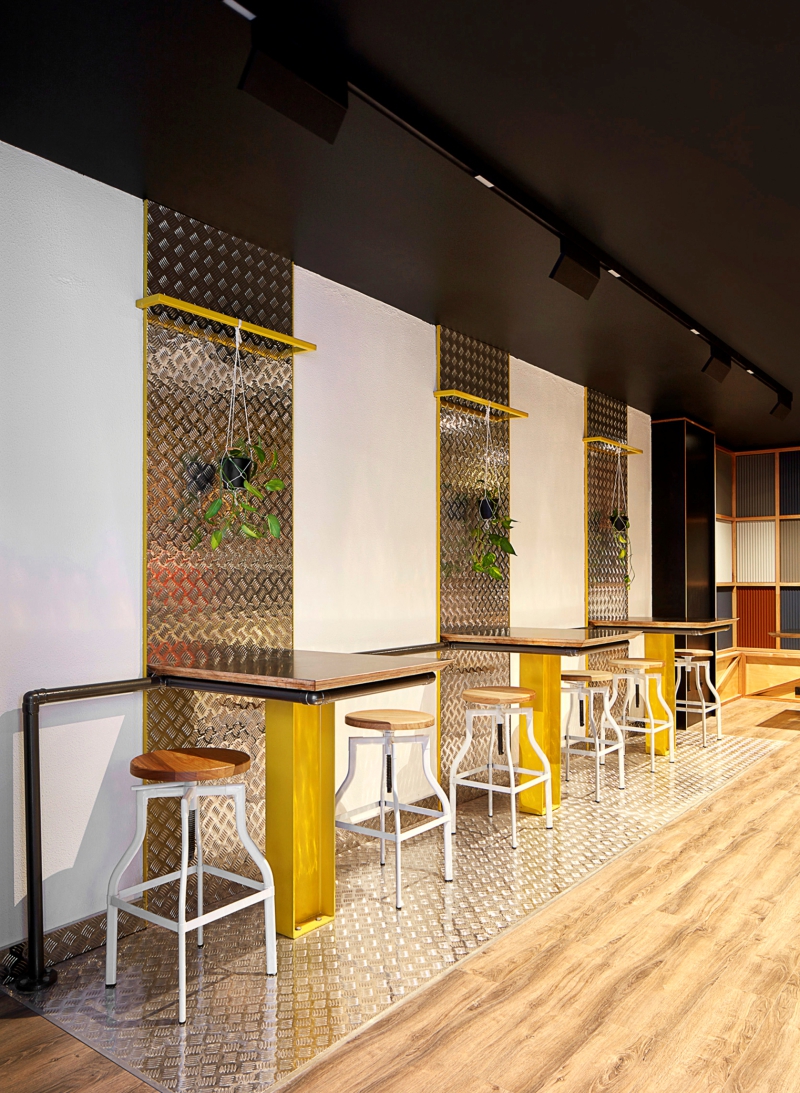

Scenes
Beam angle

18°

23°

36°

Applicable Instructions for 18° Illumination



This is an angle suitable for basic lighting，

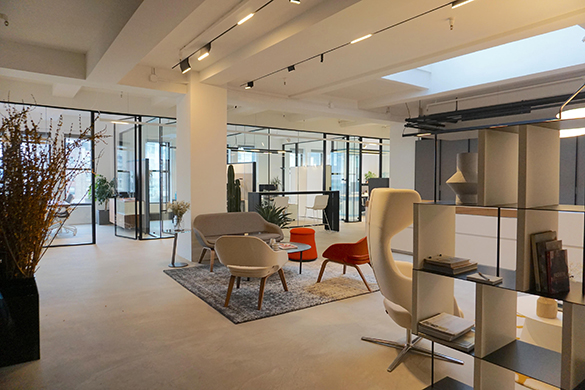

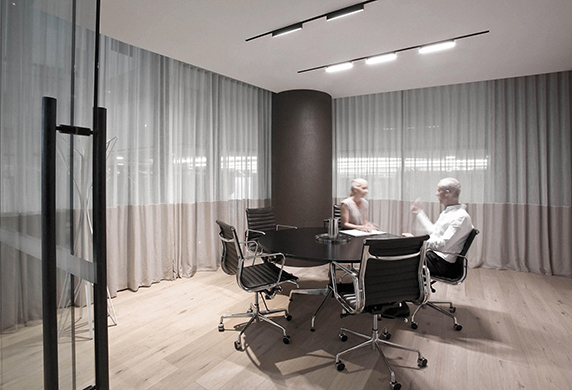

It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
