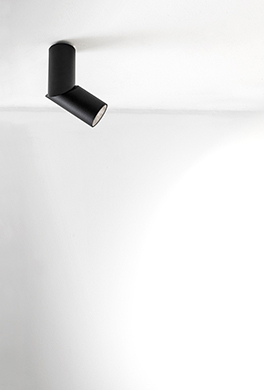

Ala
03.106B01000

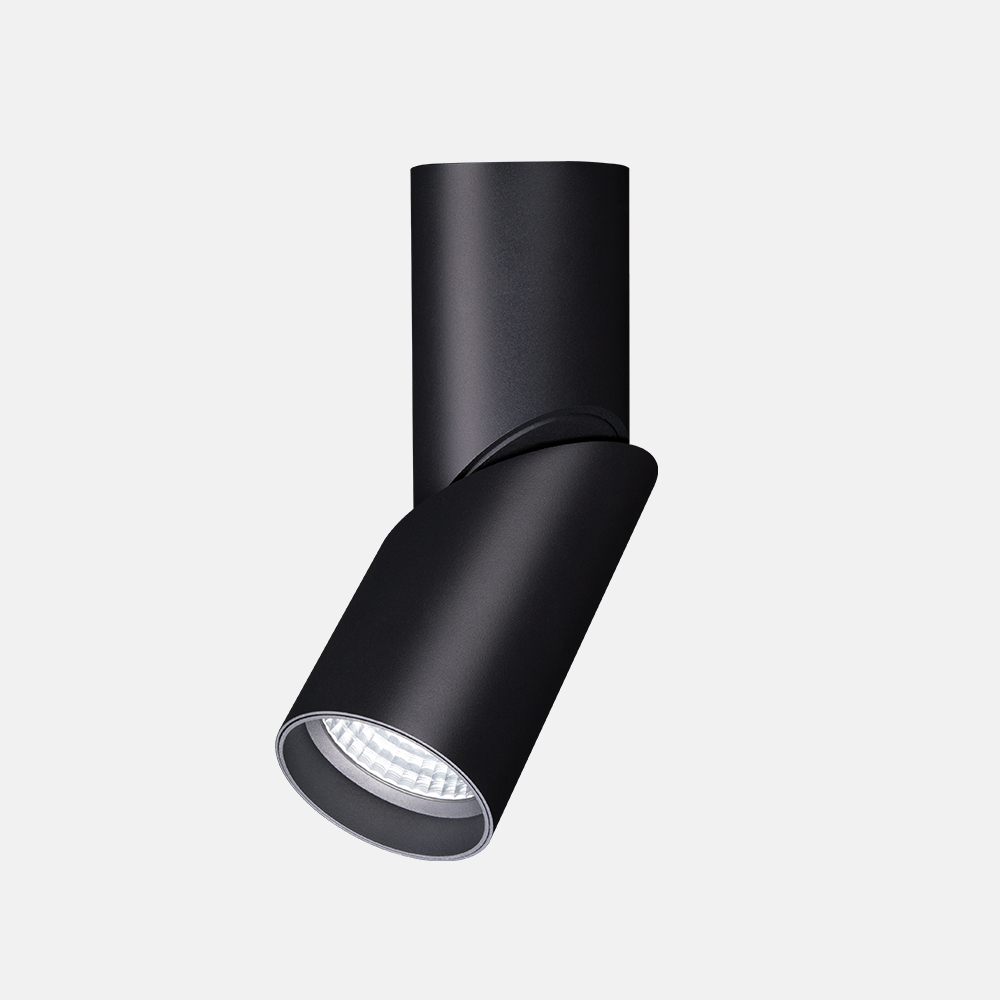

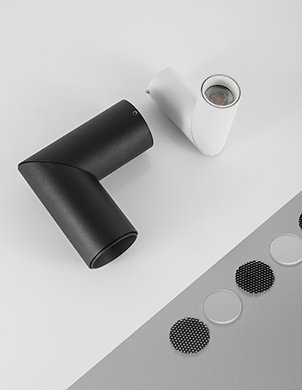

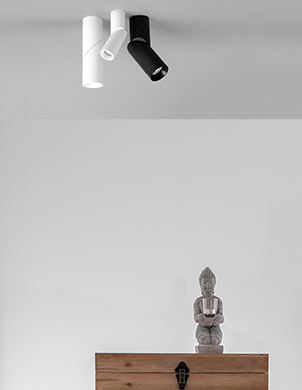

Ala is a ceiling fixture with aluminum frame that can be swiveled on a single 355° axis to direct the light beam as needed.‎ The unique design of the central joint allows the light fixture to be rotated 90° or kept fixed to further customize the lighting.‎ GU10 lamp holder that allows mounting LED lamp.‎ Available in two finishes (white, black).‎

Specification

03.106B01000

Power:12W/15W/20W

Installation method:Ceiling

Cut out:No

Options:Non-dim,  Phase dim

Frequency:50/60Hz

LED chip:COB

Light efficiency:81 lm/W

CCT:2700K/3000K/3500K/4000K

CRI:≥90

SDCM:<3

Adjustibility:355° Rotation | 90° Tilting

Light distribution:Direct

Beam angle:17°/20°/22°

Ingress protection:IP20

Material:Aluminum

Operating temperature:-25°C~50°C

Rated life hours:35,000h~50,000h  LM80

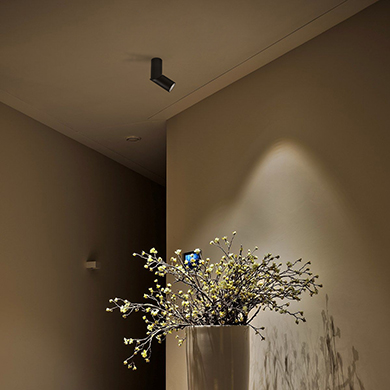

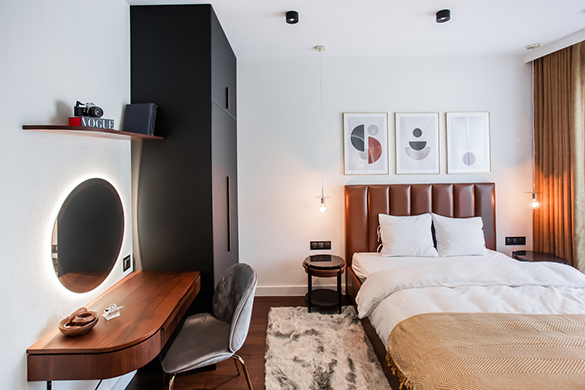

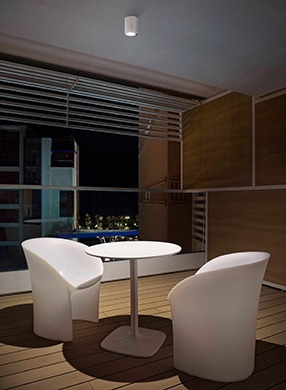

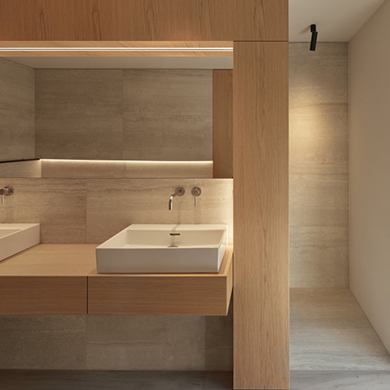

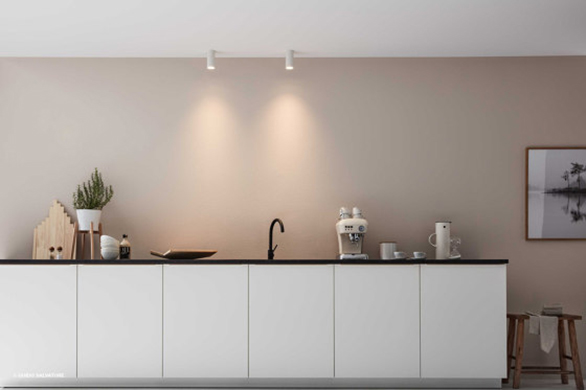

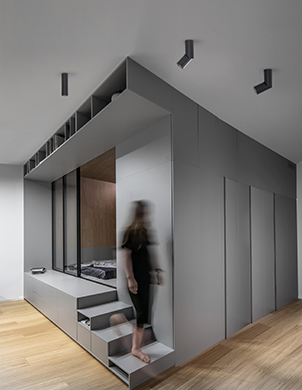

Scenes

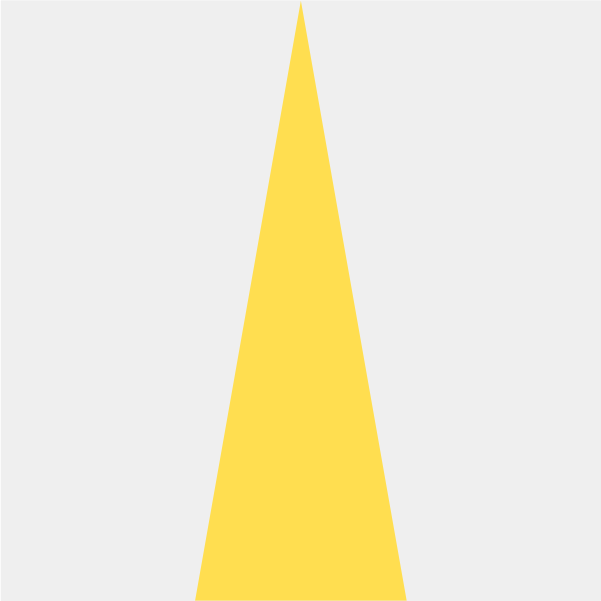

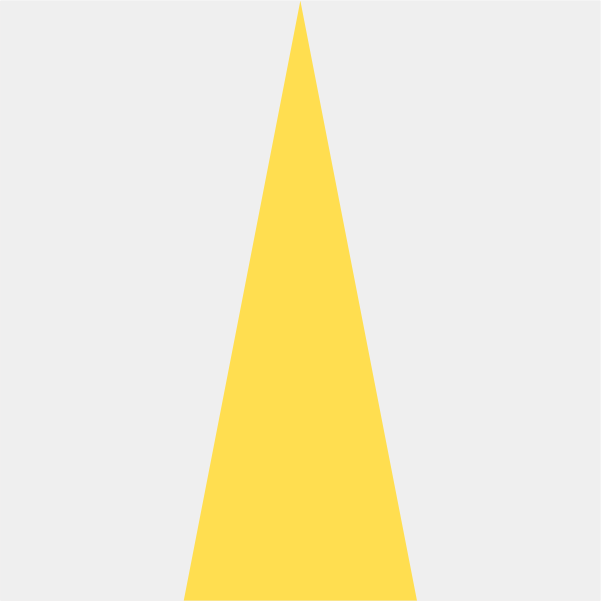

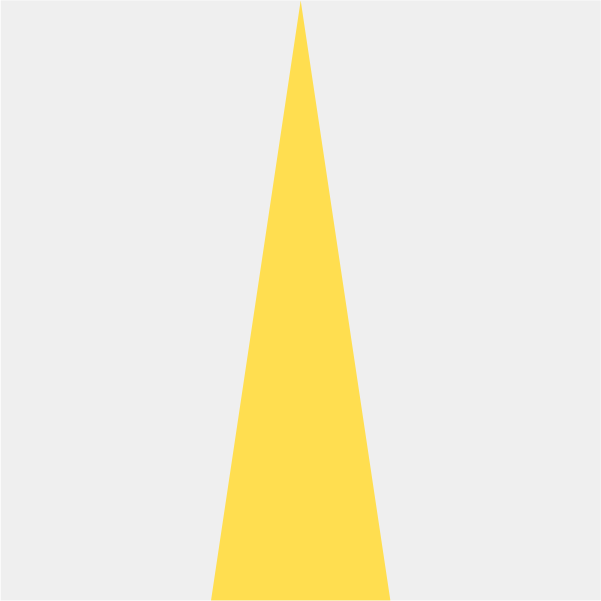

Beam angle

Applicable Instructions for 17° Illumination



This is an angle suitable for basic lighting,
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
