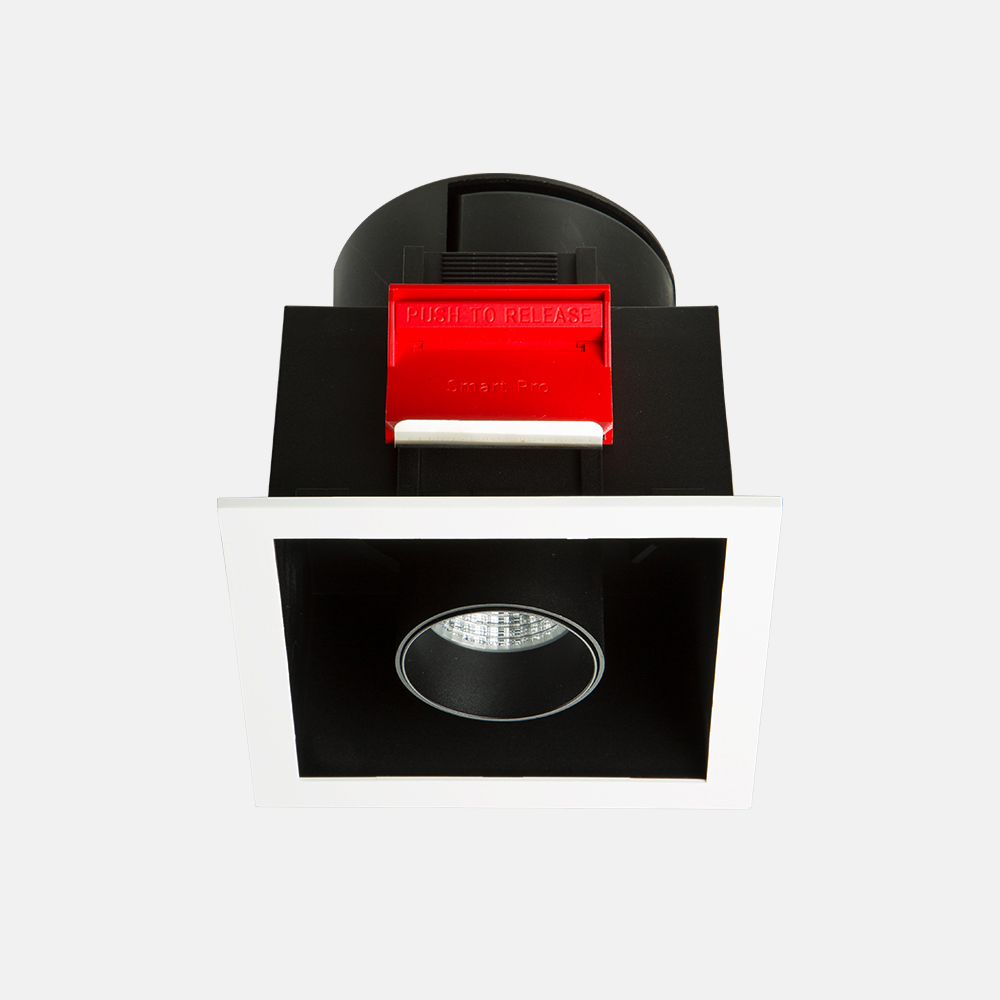

A01_Smart Pro_Recessed ceiling light_Products

/ Products / Recessed ceiling light / Smart Pro

Specification

01.833A01000

Power：20W

Installation method：Recessed

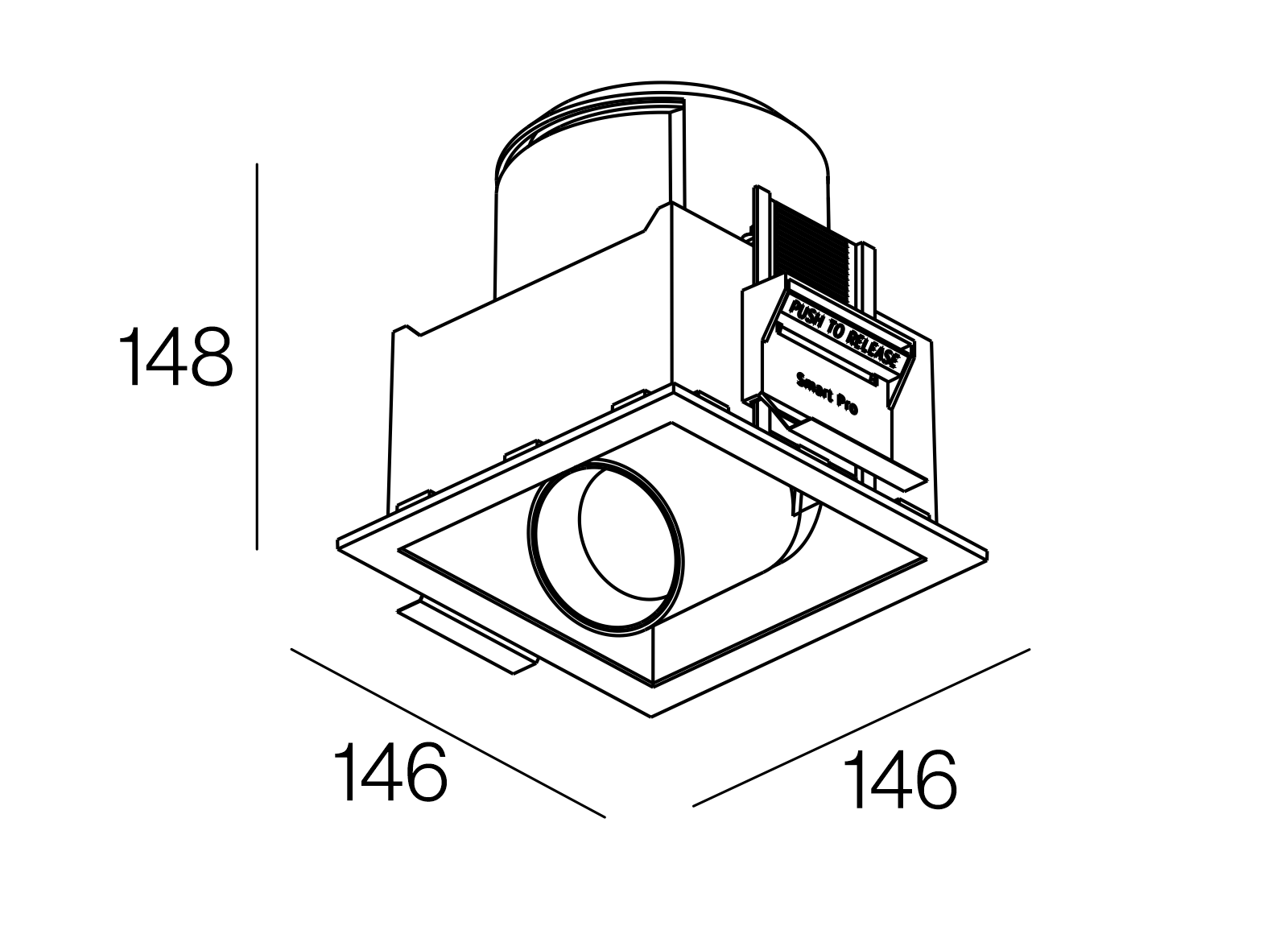

Cut out：135*135mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：91 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility： 355° Rotation | 40° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：19°/25°/38°/52°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Black

Accessories
Download

IES LDT Specifications Drawings Installation instructions

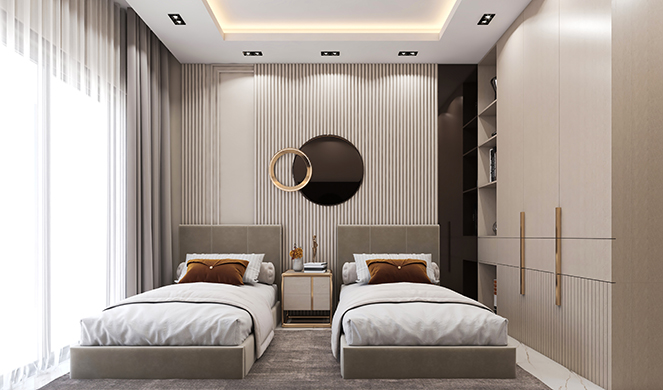

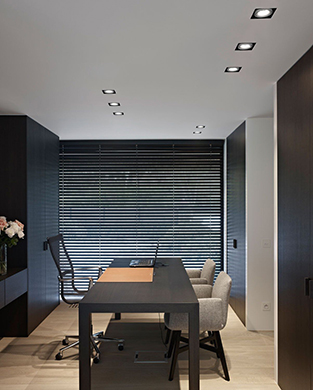

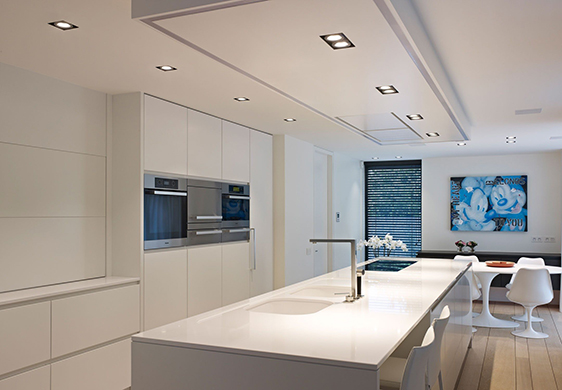

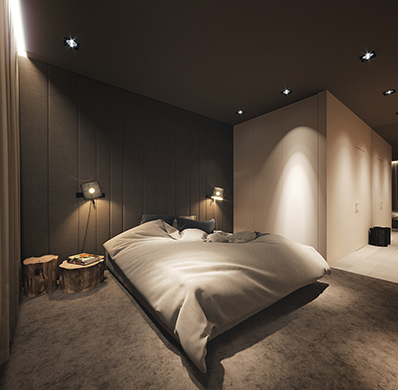

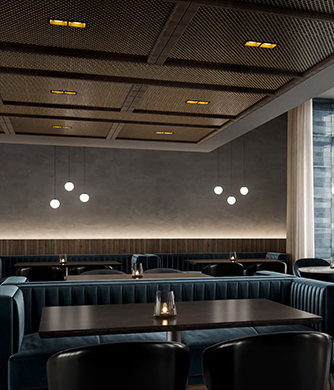

Scenes

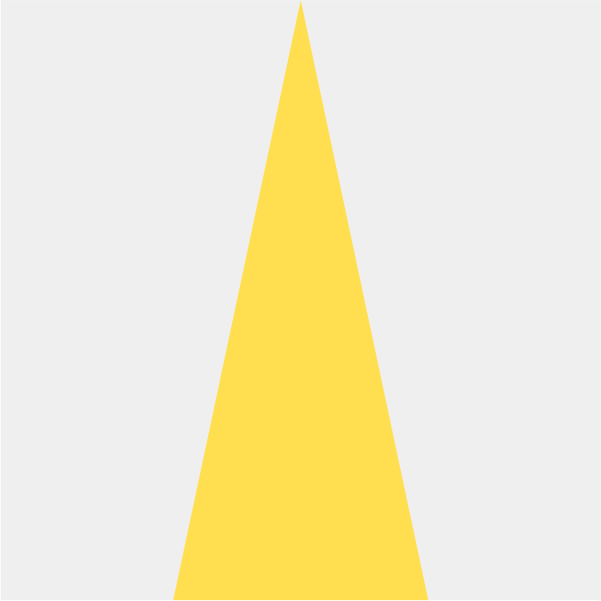

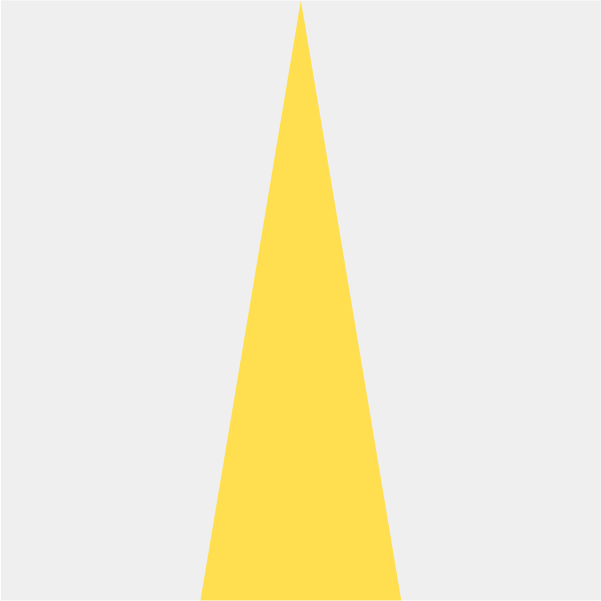

Beam angle

19°

25°

38°

52°

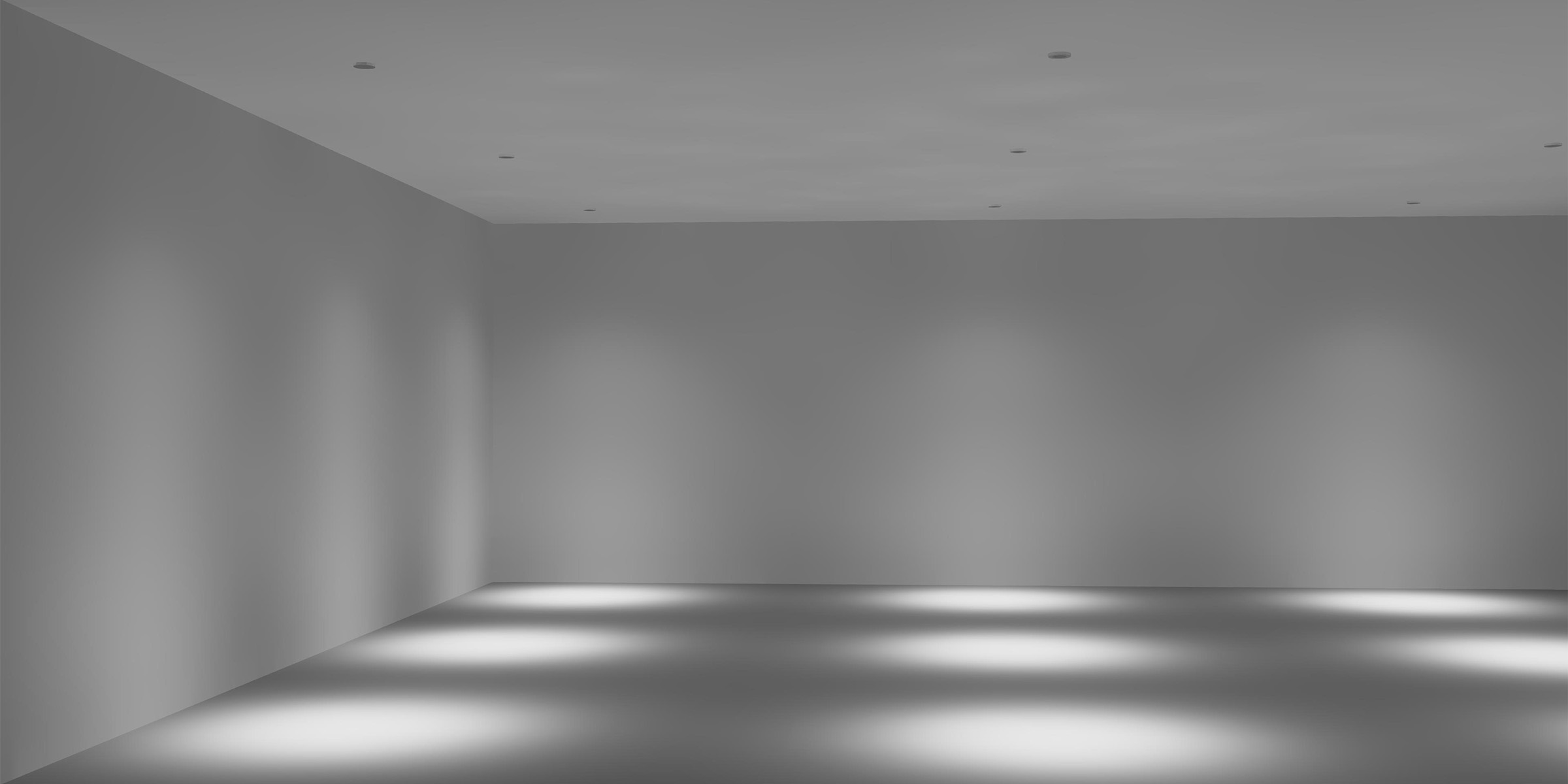

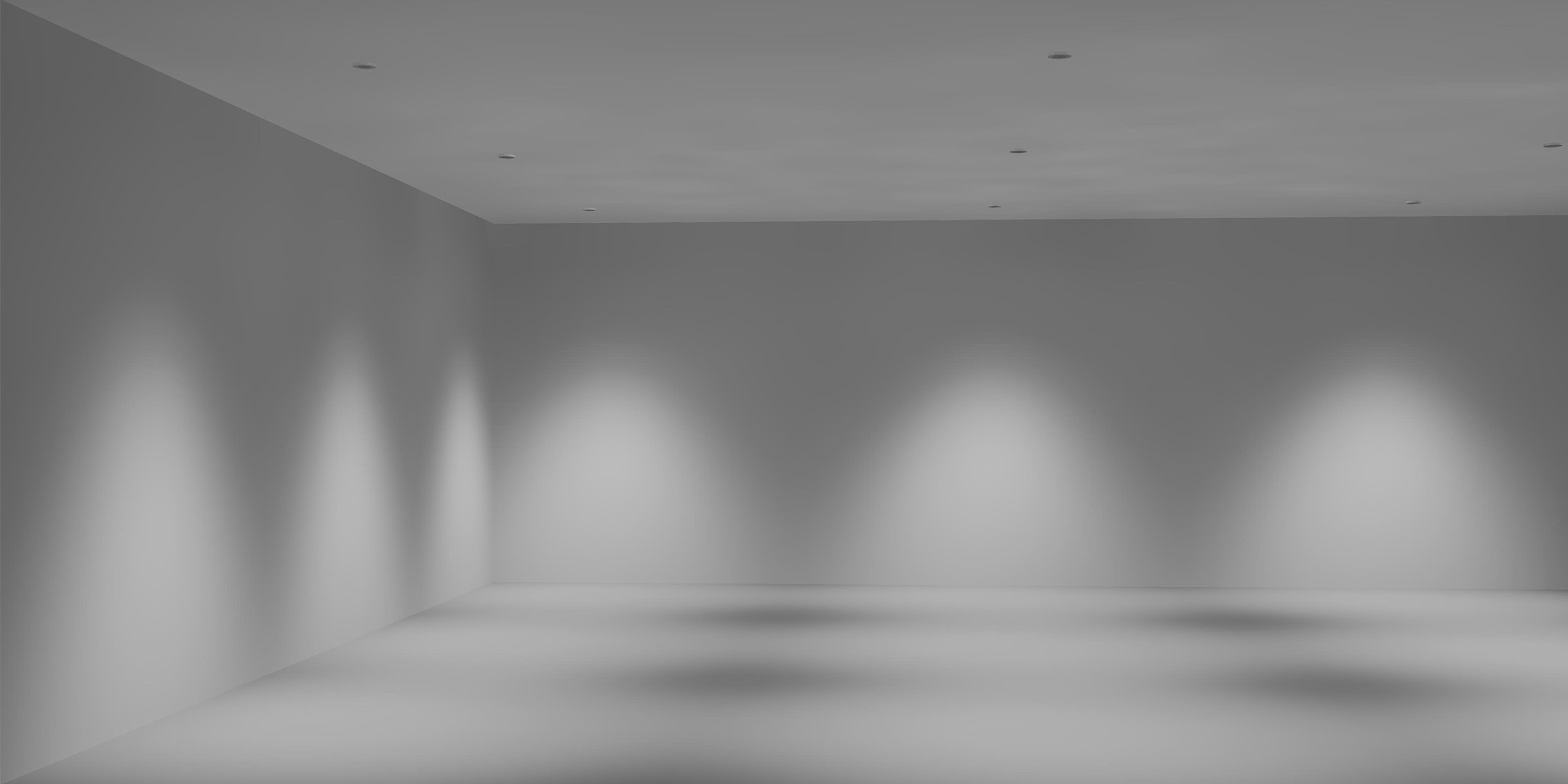

Applicable Instructions for 19° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

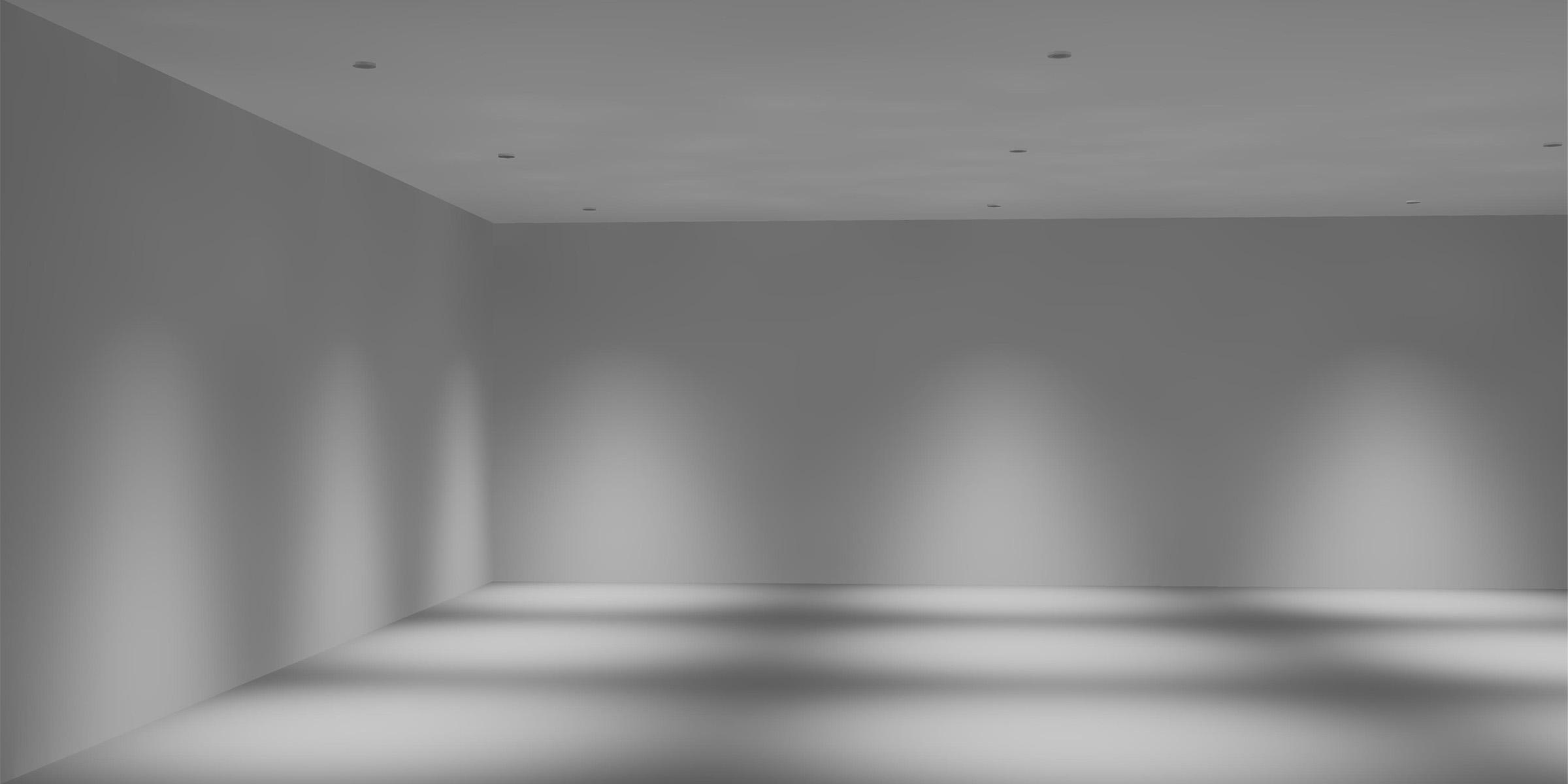

Applicable Instructions for 25° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

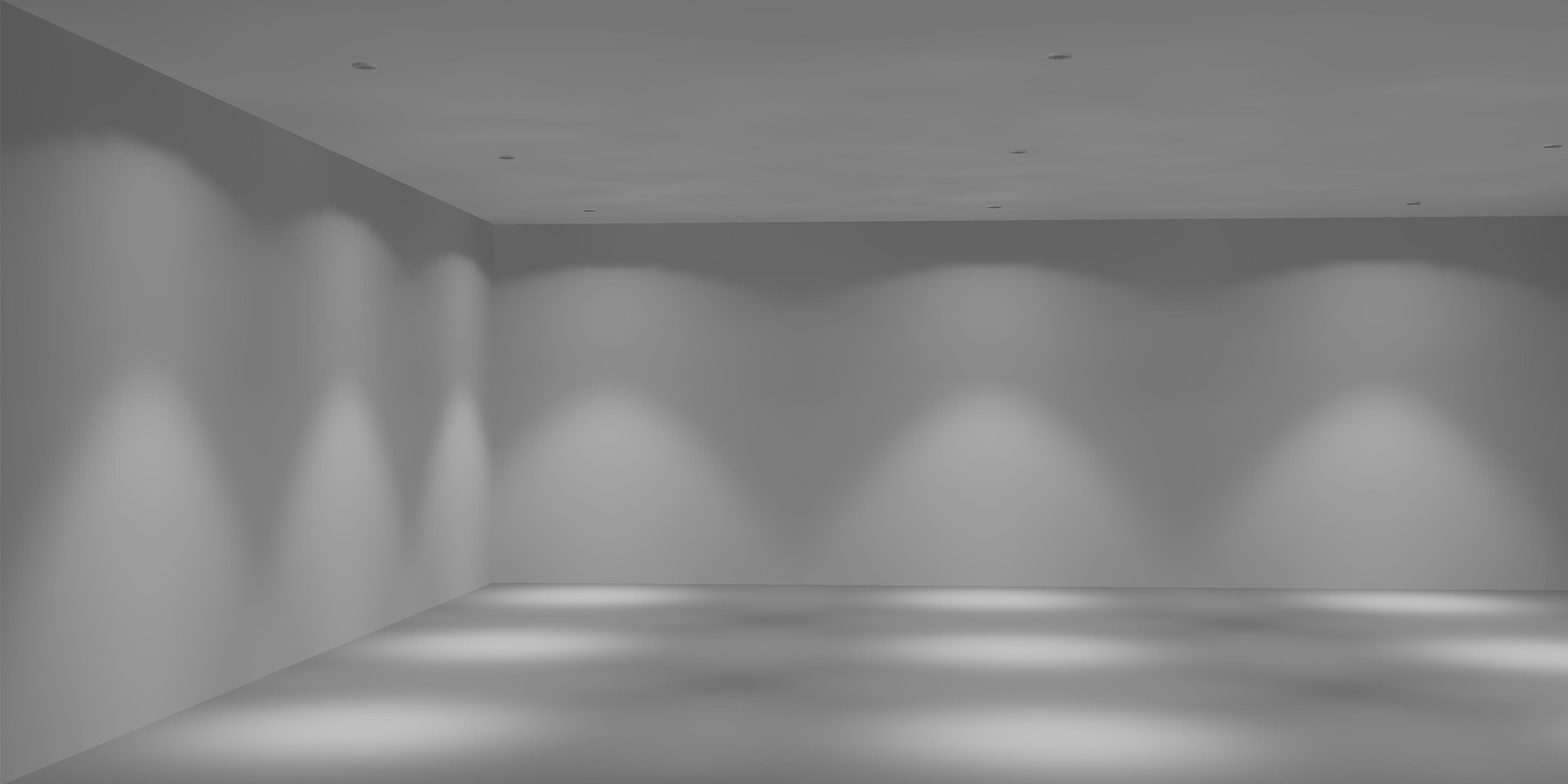

Applicable Instructions for 38° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 52° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
