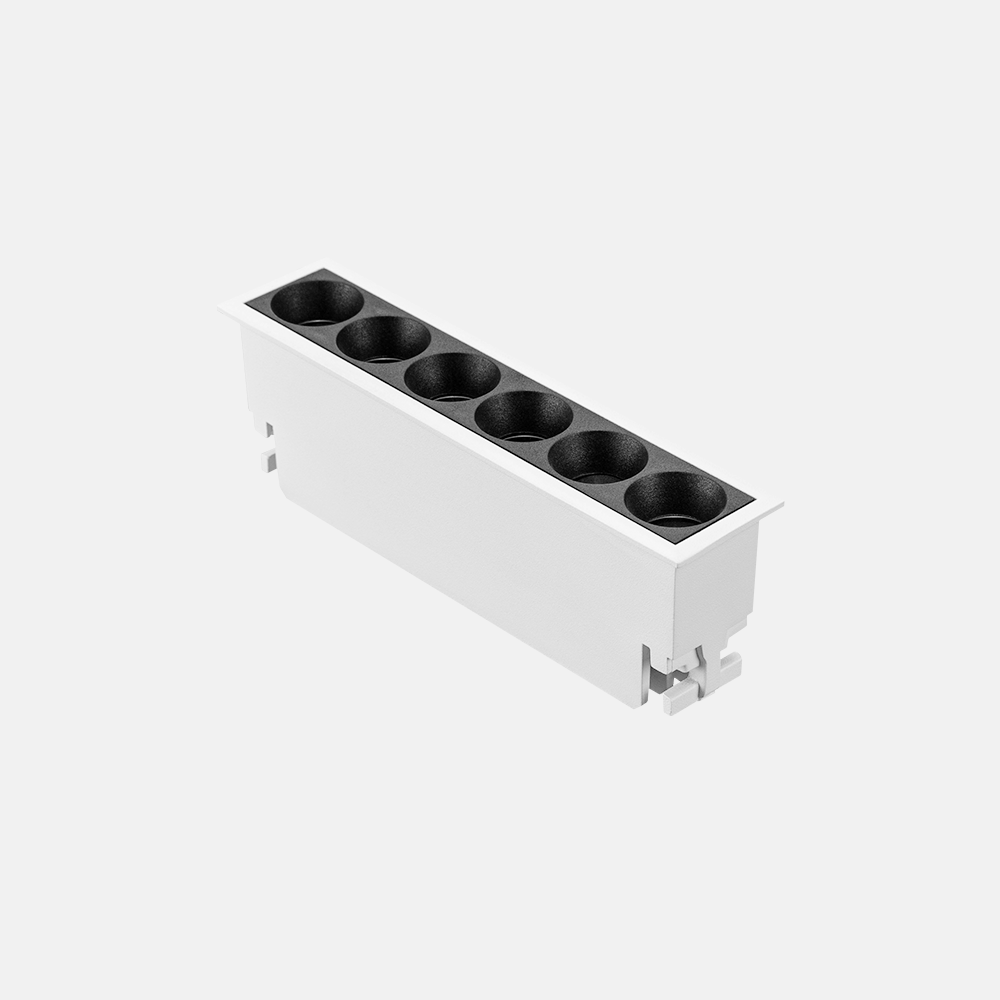

lattice mini
01.216A06000

This LATTICE offers high performance and excellent visual comfort. Not only thanks to special anti-glare lenses, but also thanks to the product's own low glare value UGA < 16 and color rendering RA > 90. LATTICE is usually used for basic lighting and important lighting in exhibition venues. Provides minimalistic and stylish lighting effects. It also has three beam angles and a variety of wireless adjustment methods such as BLE, TRIAC and DALI, which can meet the lighting needs of various projects.

/ Products / Recessed ceiling light / Lattice Mini
Specification

01.216A06000

Power：10W

Installation method：Recessed

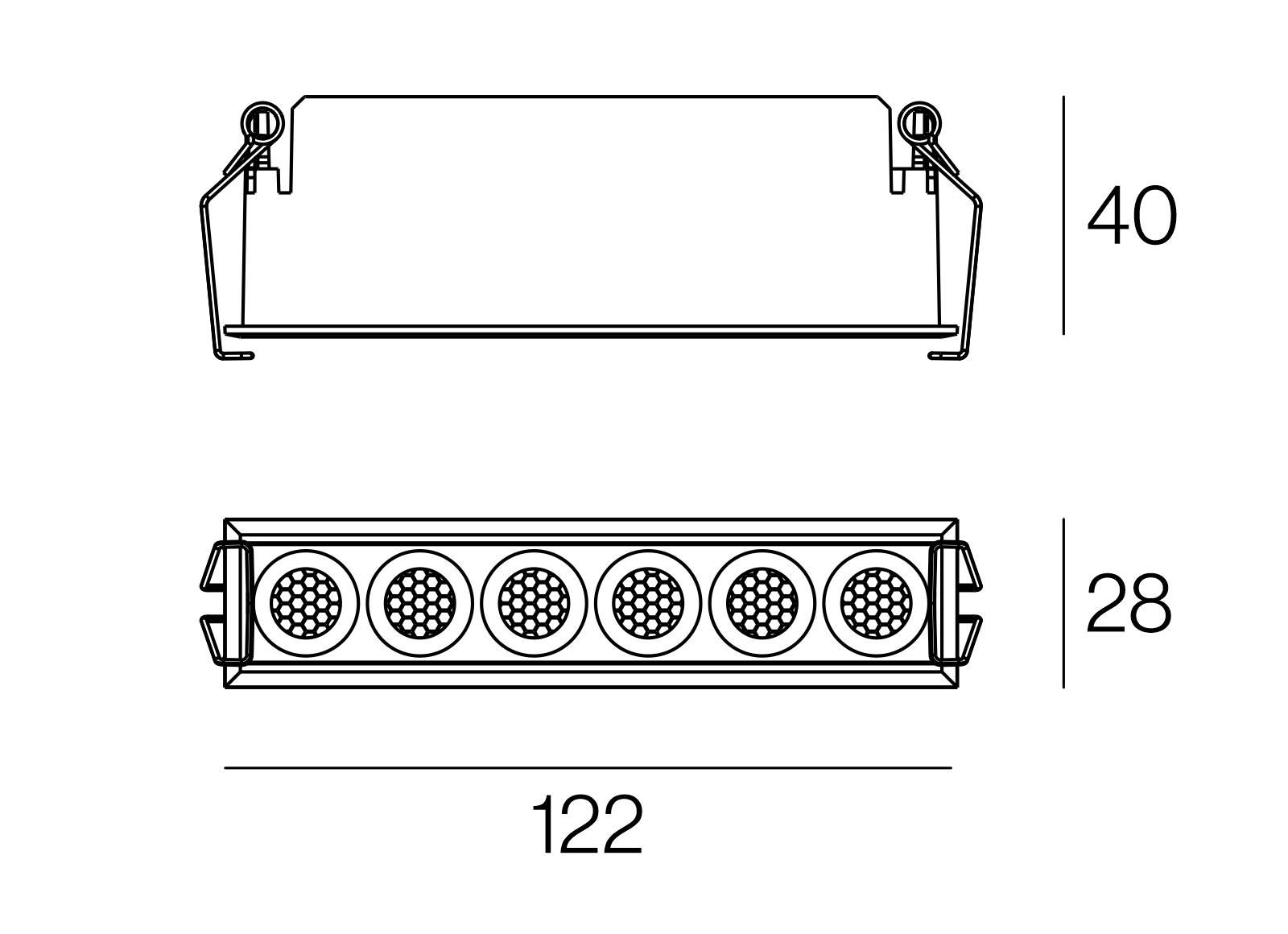

Cut out：117*23mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：71 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：NO

Light distribution：Direct

UGR：＜19

Beam angle：19°/23/28°/31°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

White+Black

Scenes
Beam angle

19°

23°

28°

31°

Applicable Instructions for 19° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
