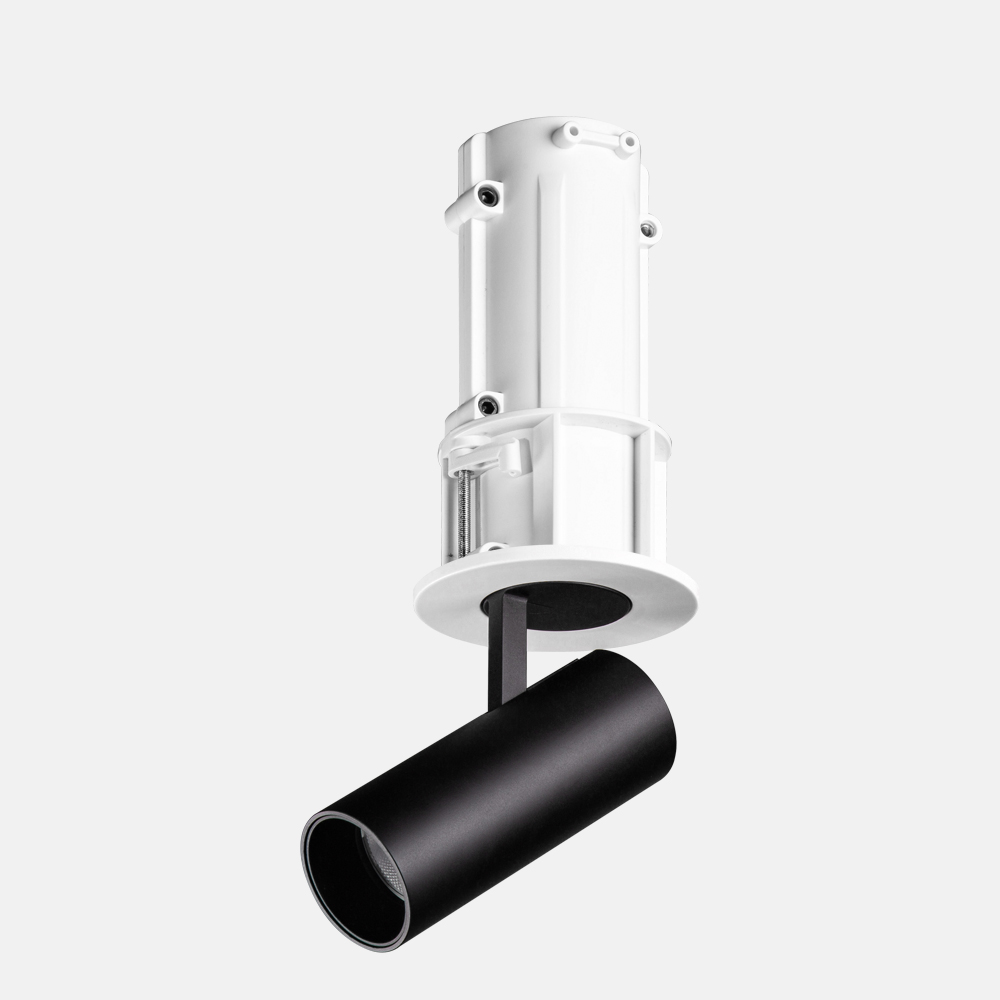

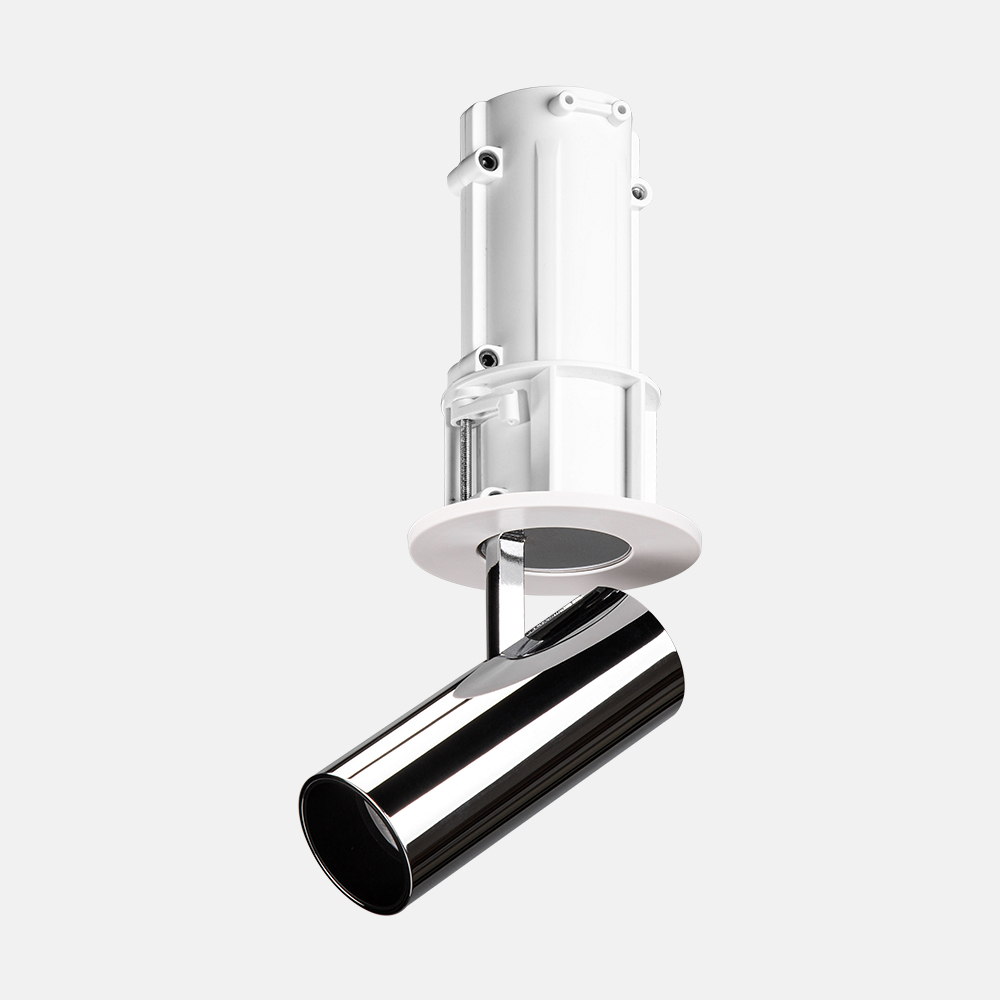

01.215A01000
Power：6W/8W
Installation method：Recessed

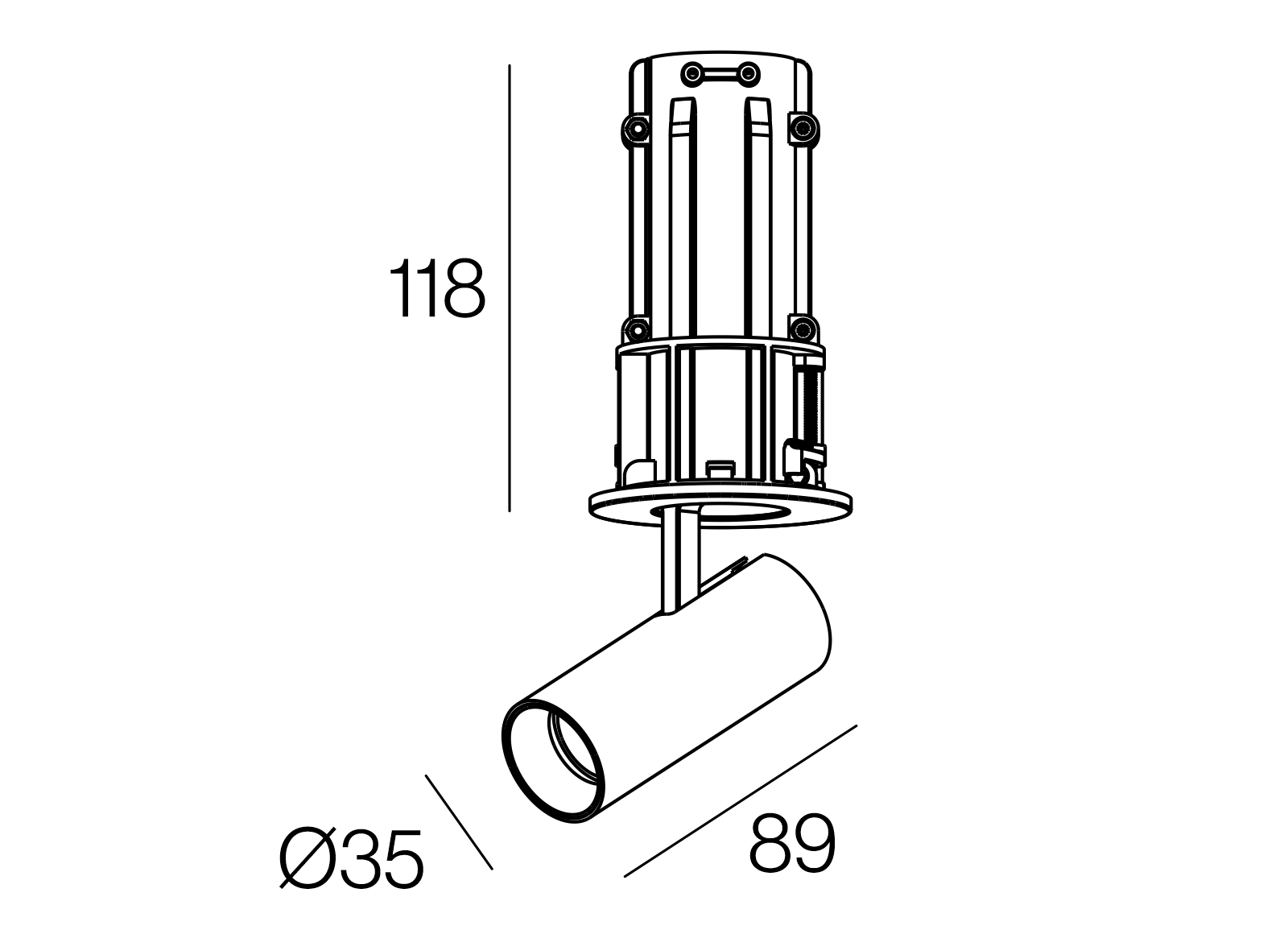

Cut out：φ55mm
Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee
Frequency：50/60Hz
LED chip：COB
Light efficiency：74 lm/W
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility： 355° Rotation | 90° Tilting
Light distribution：Direct
UGR：＜19
Beam angle：21°/27°/37°
Ingress protection：IP20
Material：Aluminum
Operating temperature：-25°C~50°C
Rated life hours：35,000h~50,000h LM80
Black
Black
White
21°
27°
37°

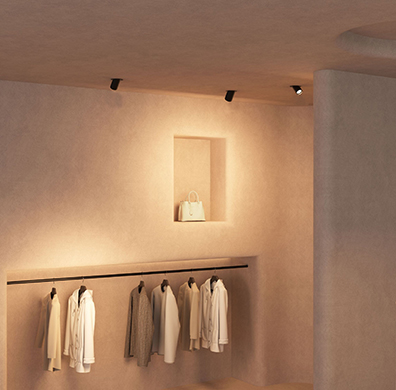

Applicable Instructions for 21° Illumination
This is an angle suitable for basic lighting，

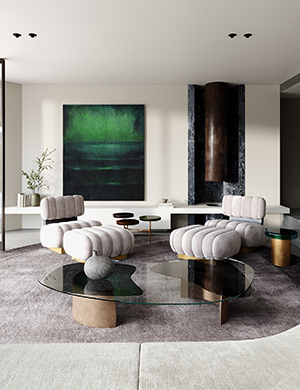

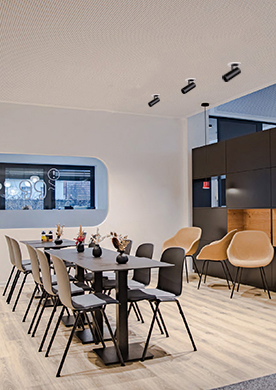

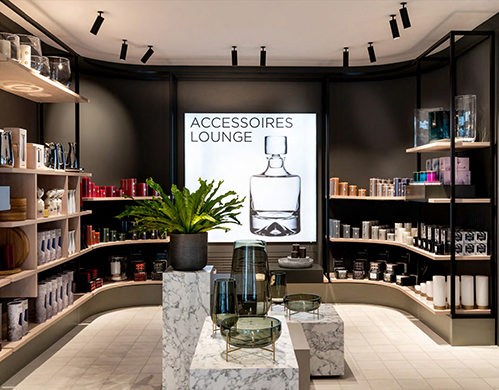

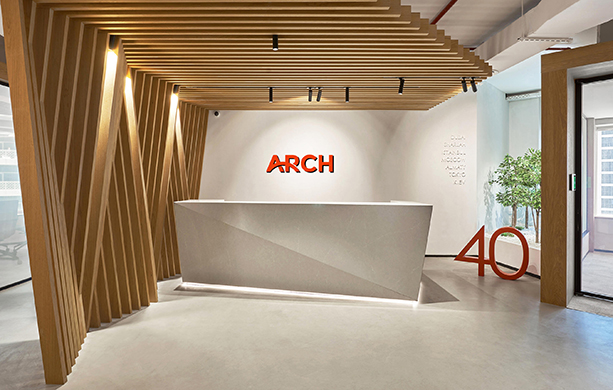

It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
