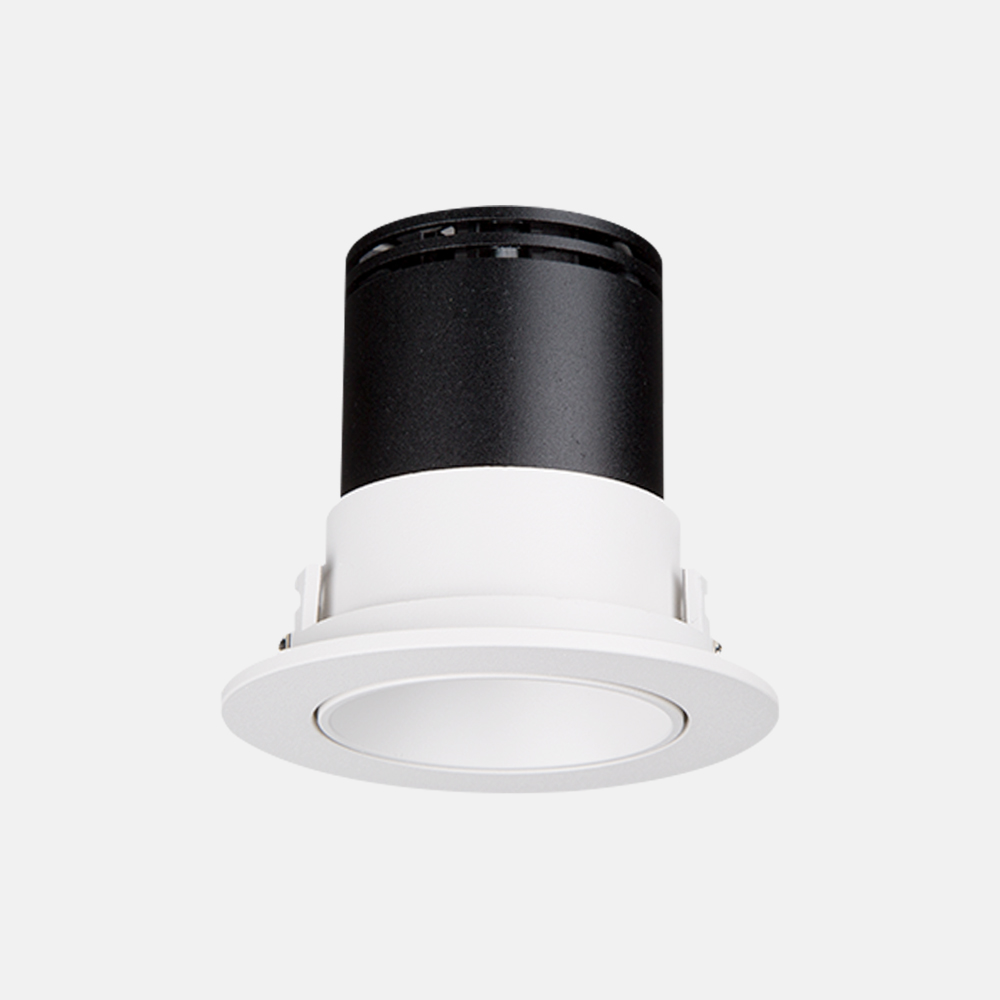

A01_Amani_Recessed ceiling light_Products

/ Products / Recessed ceiling light / Amani

Specification

01.178A01000

Power：5W/6W/7W

Installation method：Recessed

Cut out：φ75mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：86 lm/W

CCT：2700K/3000K/3500K/4000K/5000K

CRI：≥90

SDCM：＜3

Adjustibility： 20° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：18°/25°/36°/50°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

White

Accessories
Download

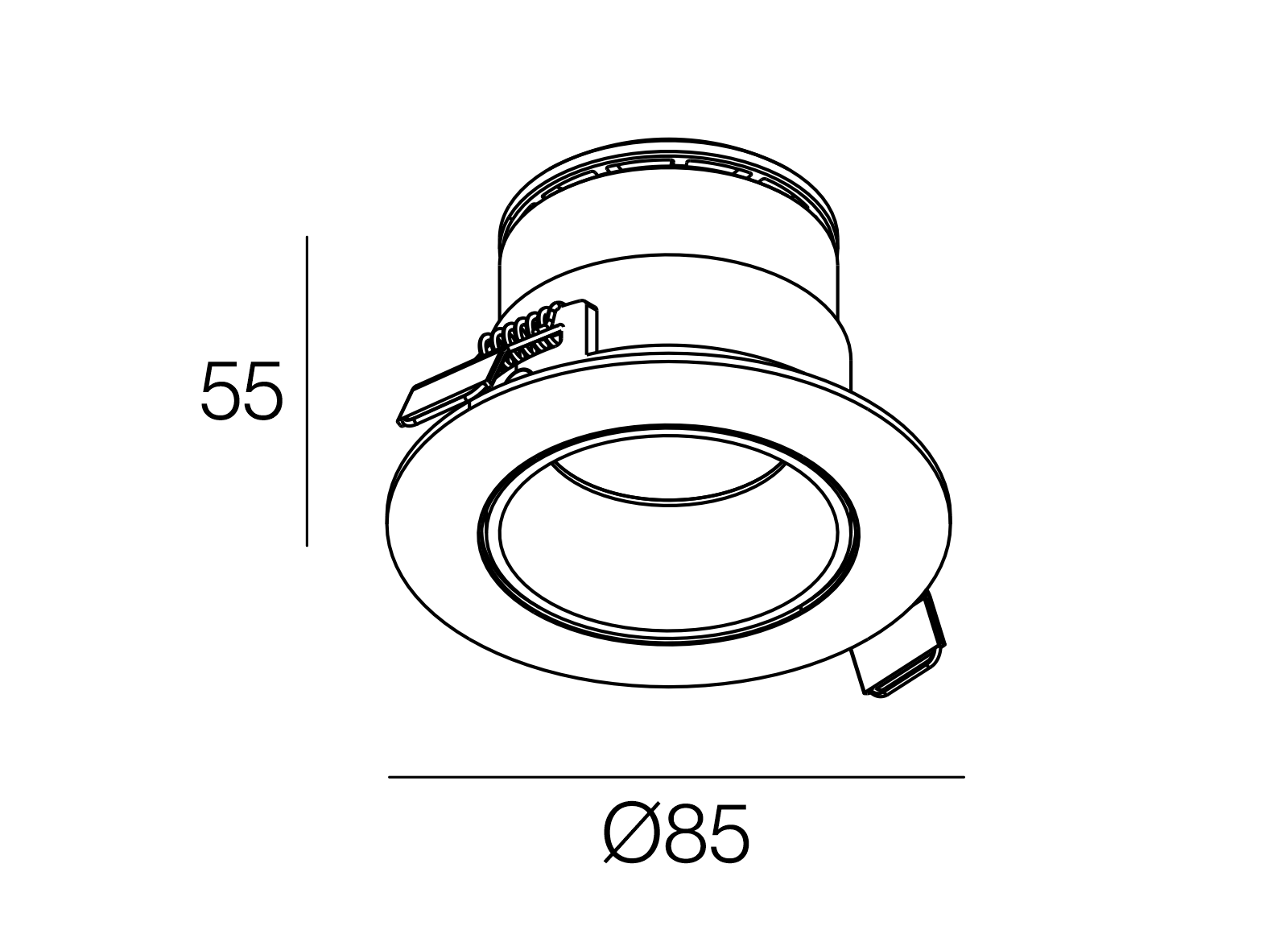

IES LDT Specifications Drawings Installation instructions

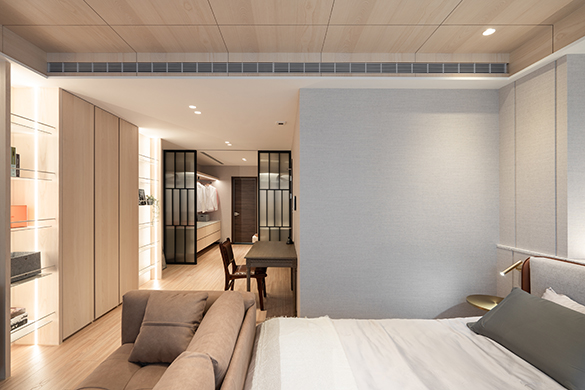

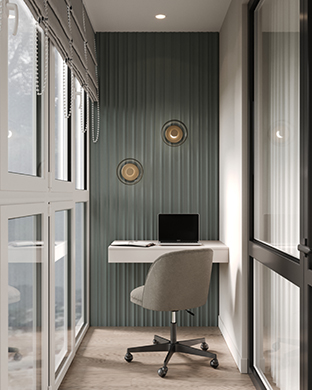

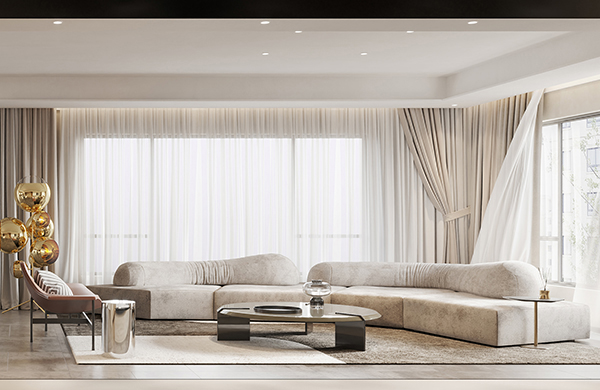

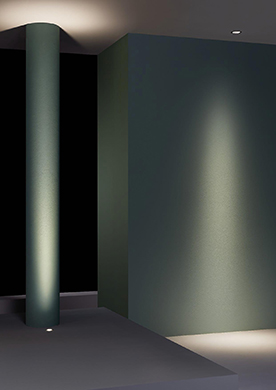

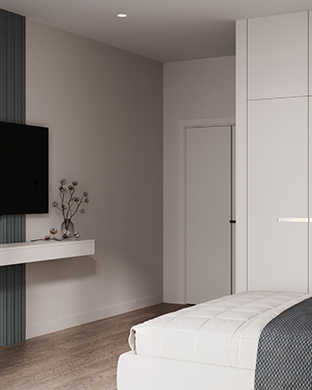

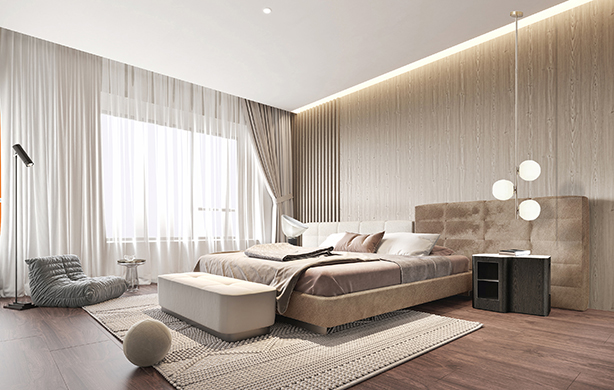

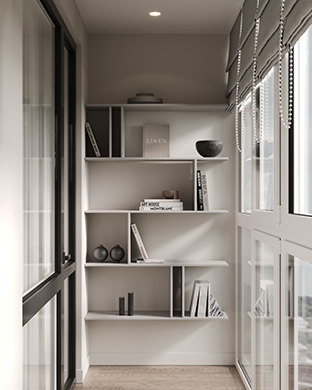

Scenes

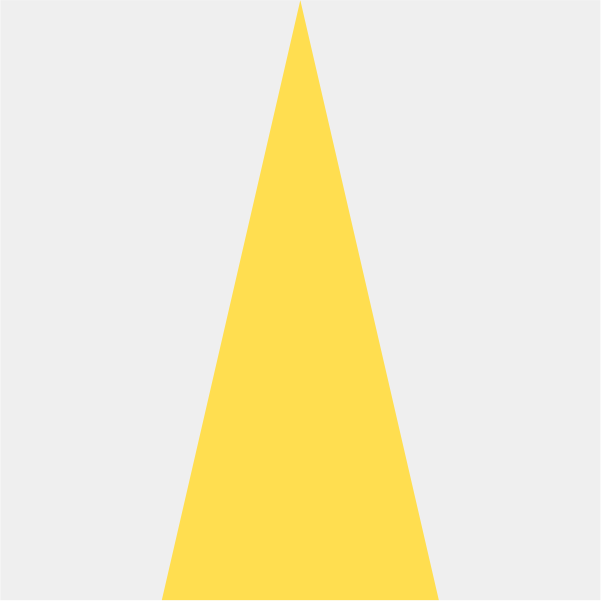

Beam angle

18°

25°

36°

50°

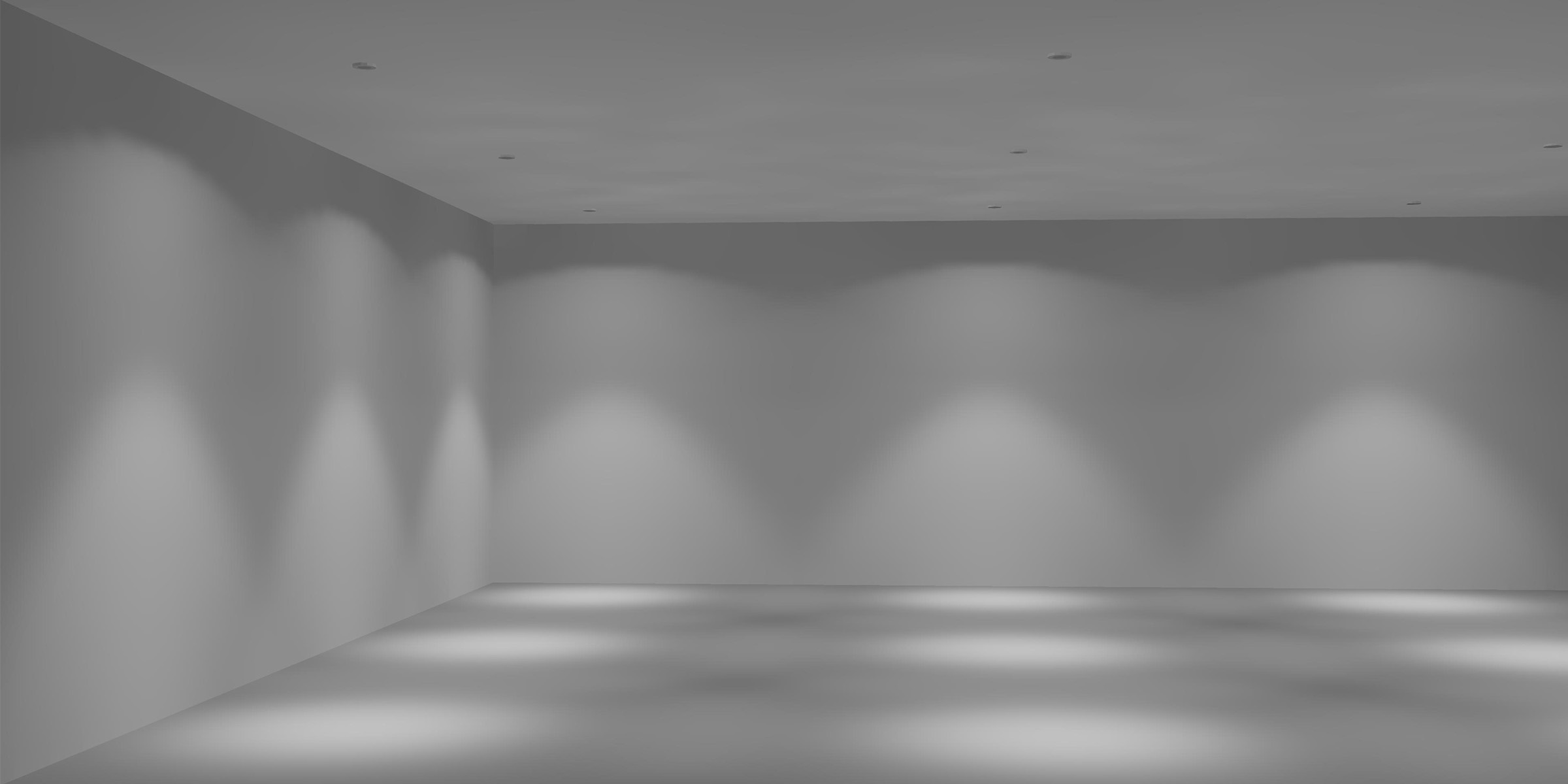

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

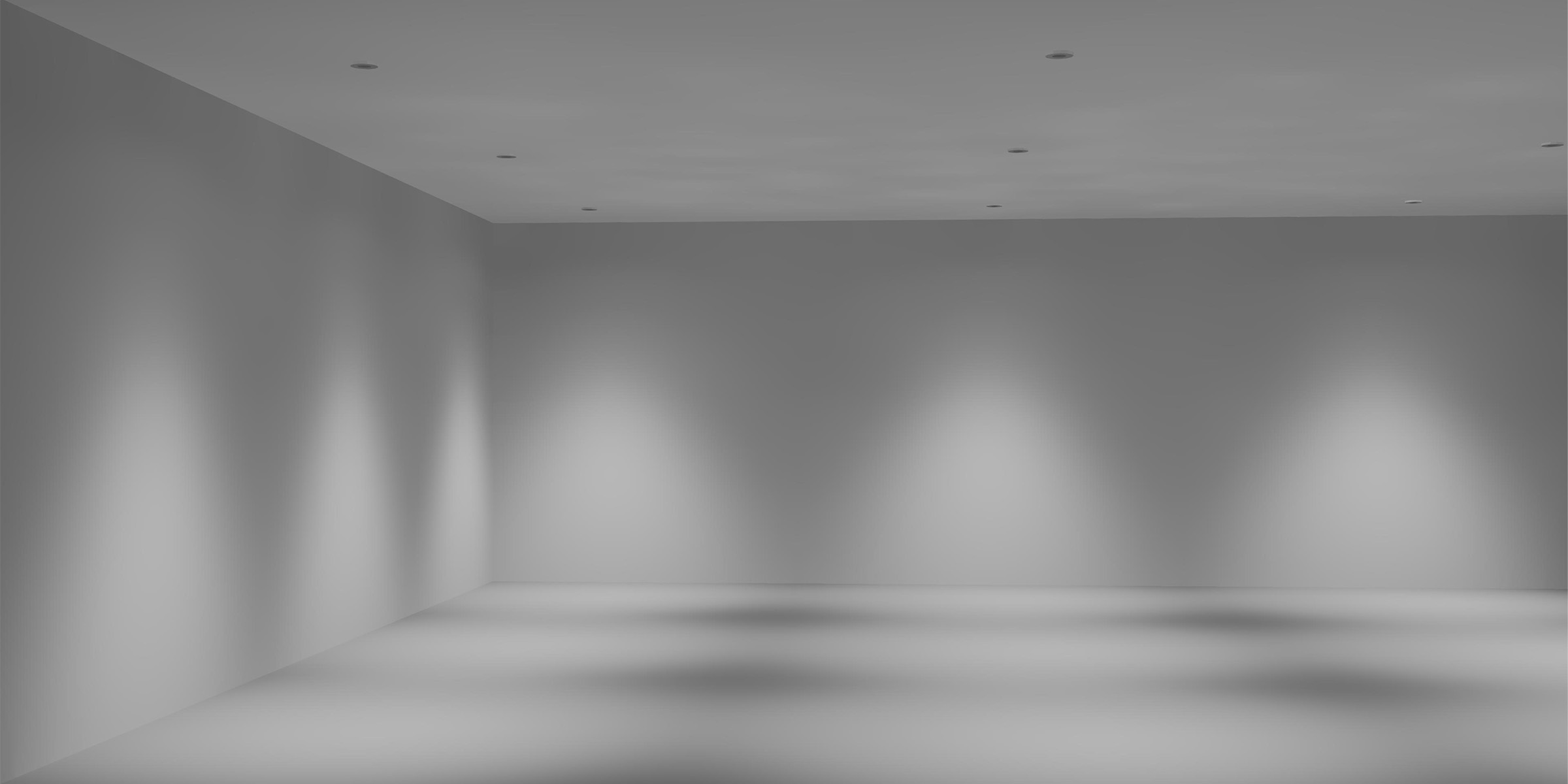

Applicable Instructions for 25° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

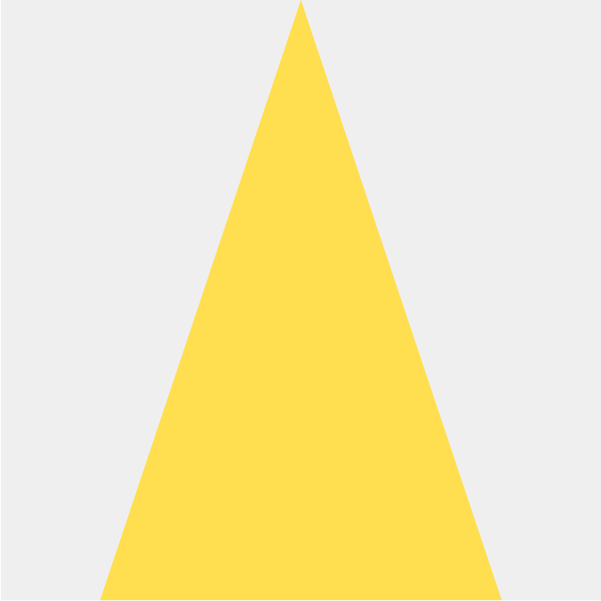

Applicable Instructions for 36° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

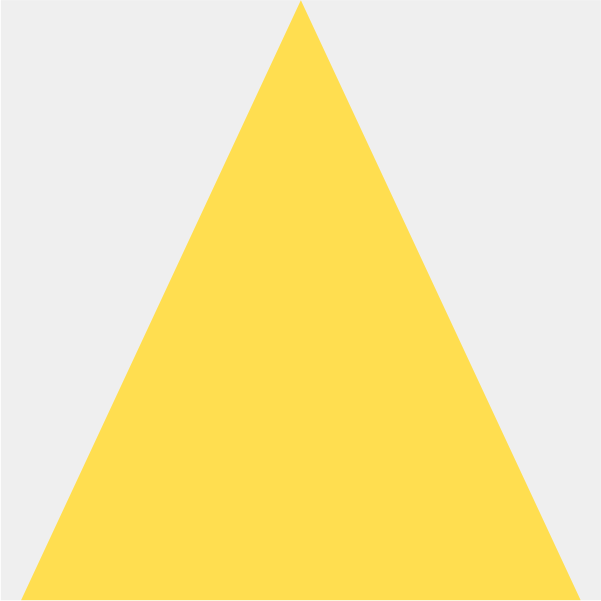

Applicable Instructions for 50° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
