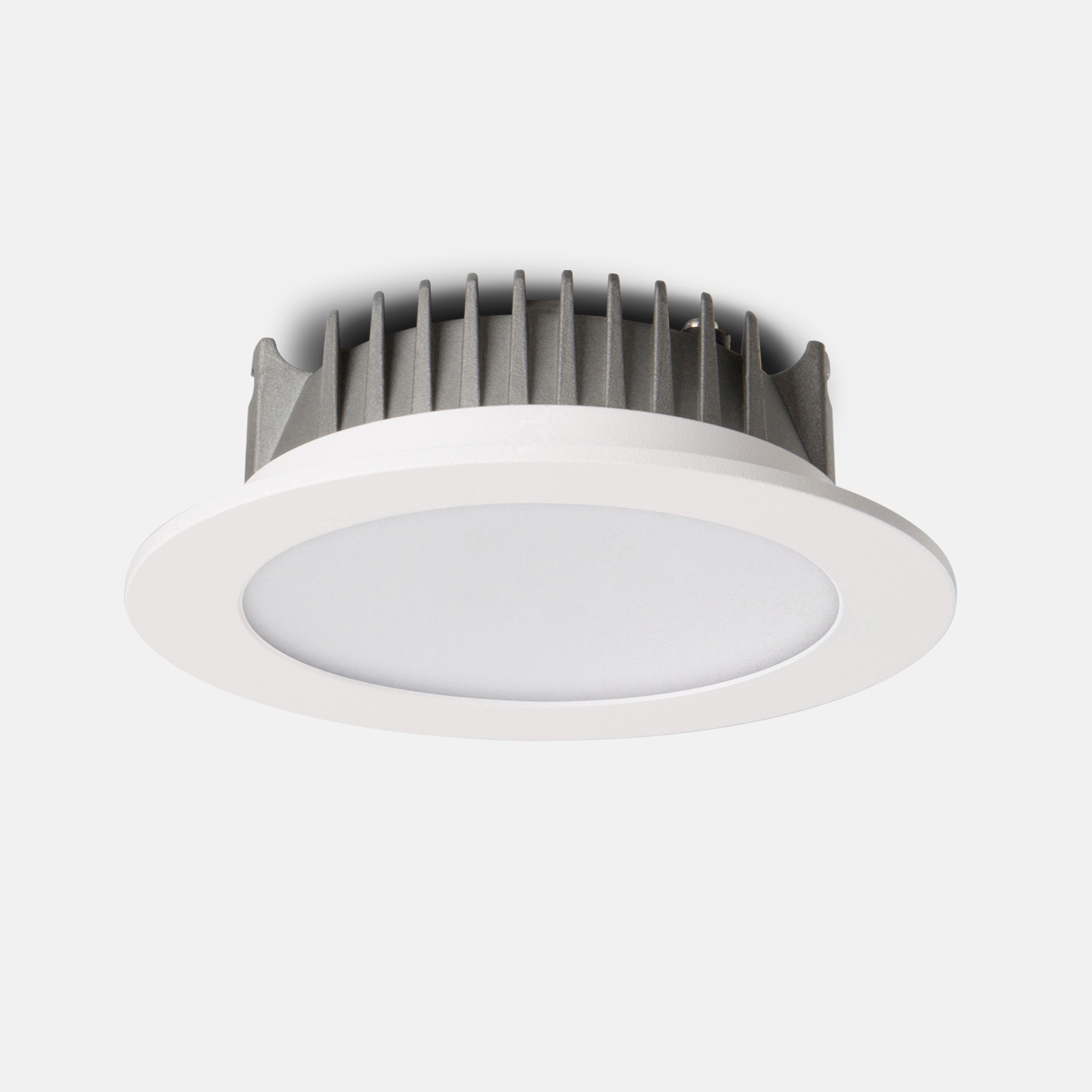

Mix
01.170A01000

The thickness of the lamp is thin , the beam angle is about 100° , the ilumination area islarger , and the illumination range is wider . High light transmission soft mask , anti fog andanti glare , high light transmission , soft and comfortable light , more intimate eye protection , and more possibilities for the space.

/ Products / Recessed ceiling light / Mix
Specification

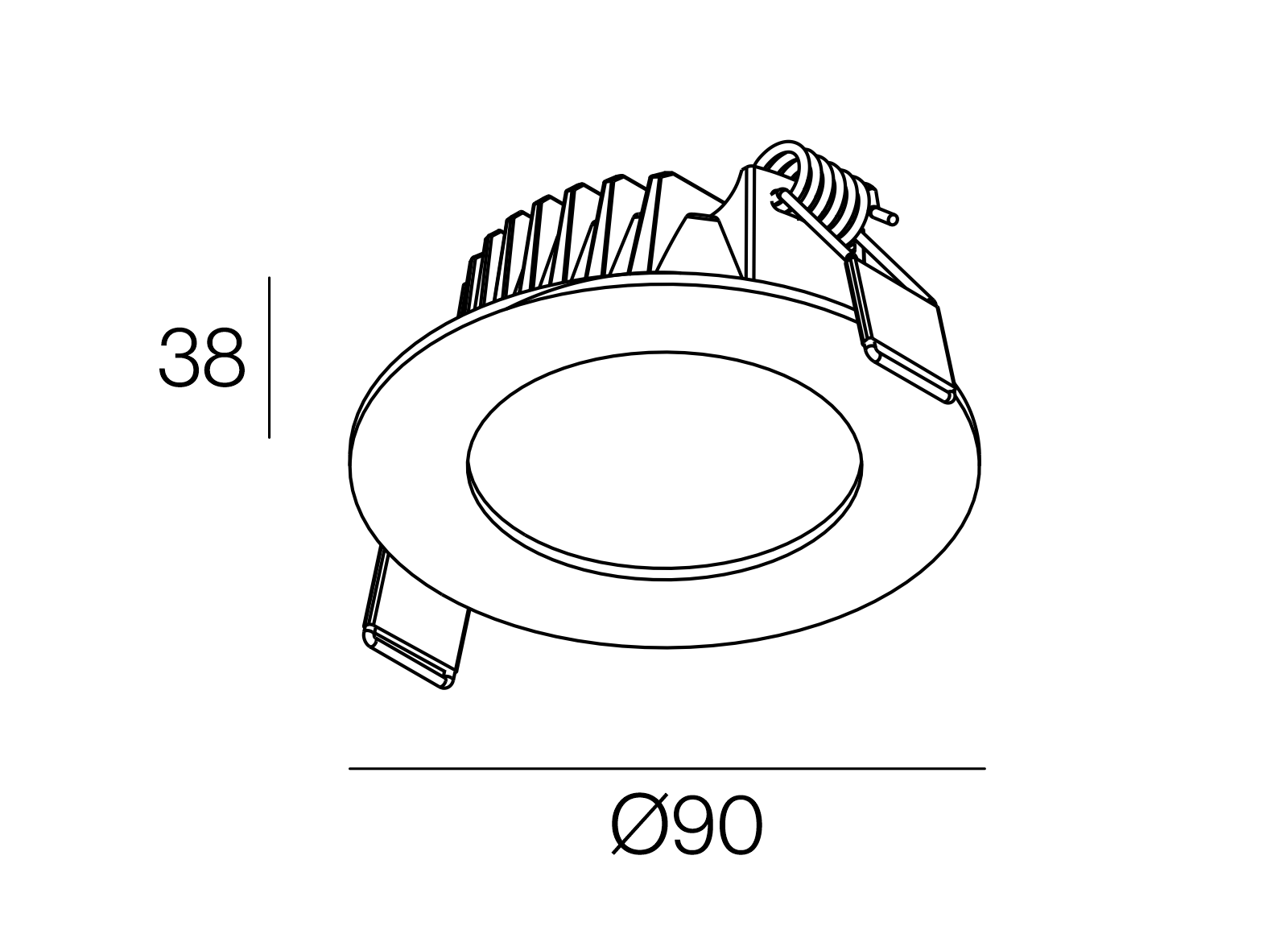

01.170A01000

Power：3W/5W

Installation method：Recessed

Cut out：φ75mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：84 lm/W

CCT：3000K/4000K/6000K

CRI：≥80/90

SDCM：＜3

Adjustibility：No

Light distribution：Direct

Beam angle：100°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

White

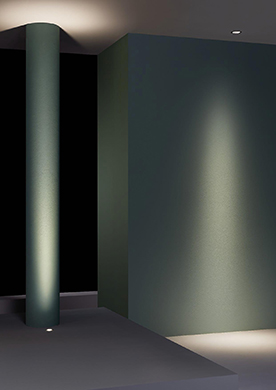

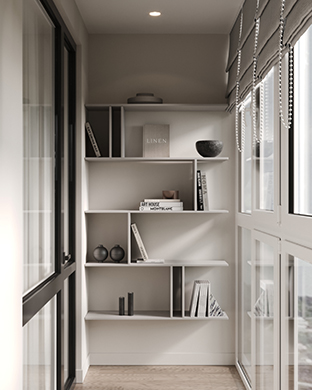

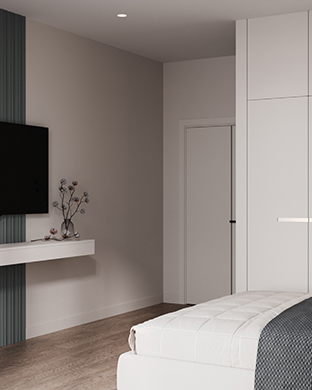

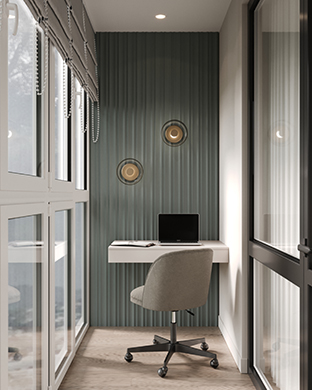

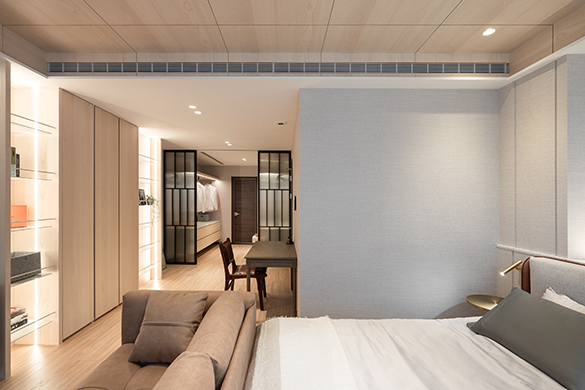

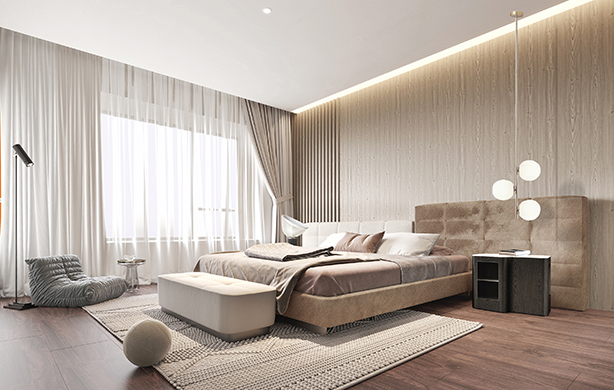

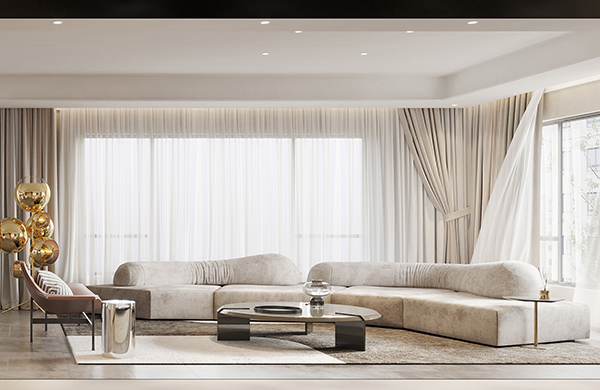

Scenes
Beam angle

100°

Applicable Instructions for 100° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
