Lead Ball
07.042A01
Magnetic lighting system as a new generation of lighting solutions, through the track layout consistent with the decoration style, lamps in the form of modules, convenient disassembly, flexible movement and other features of free combination. It not only attention to both the key lighting and basic lighting functions. Thoroughly change before need to cut hole, wiring and other troublesome installation way, totally accord with the trend of current minimalism style popularity.
/ Products / Magnetic light / LEAD BALL
Specification

07.042A01000

Power：8W / 10W

Installation method：Magnetic

Cut out：NO

Dimming：Non-DIM  、 0/1-10V 、DALI 、BLE 、 ZIGBEE

Frequency：50/60HZ

LED：COB

Lumen：50lm/w

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：NO

Light distribution：Direct

Beam angle：27°/37°

Protection class：IP20

Material：Aluminum

Environment temperature：-20°C~40°C

LED life Time：  35,000h~ 50,000h - L80

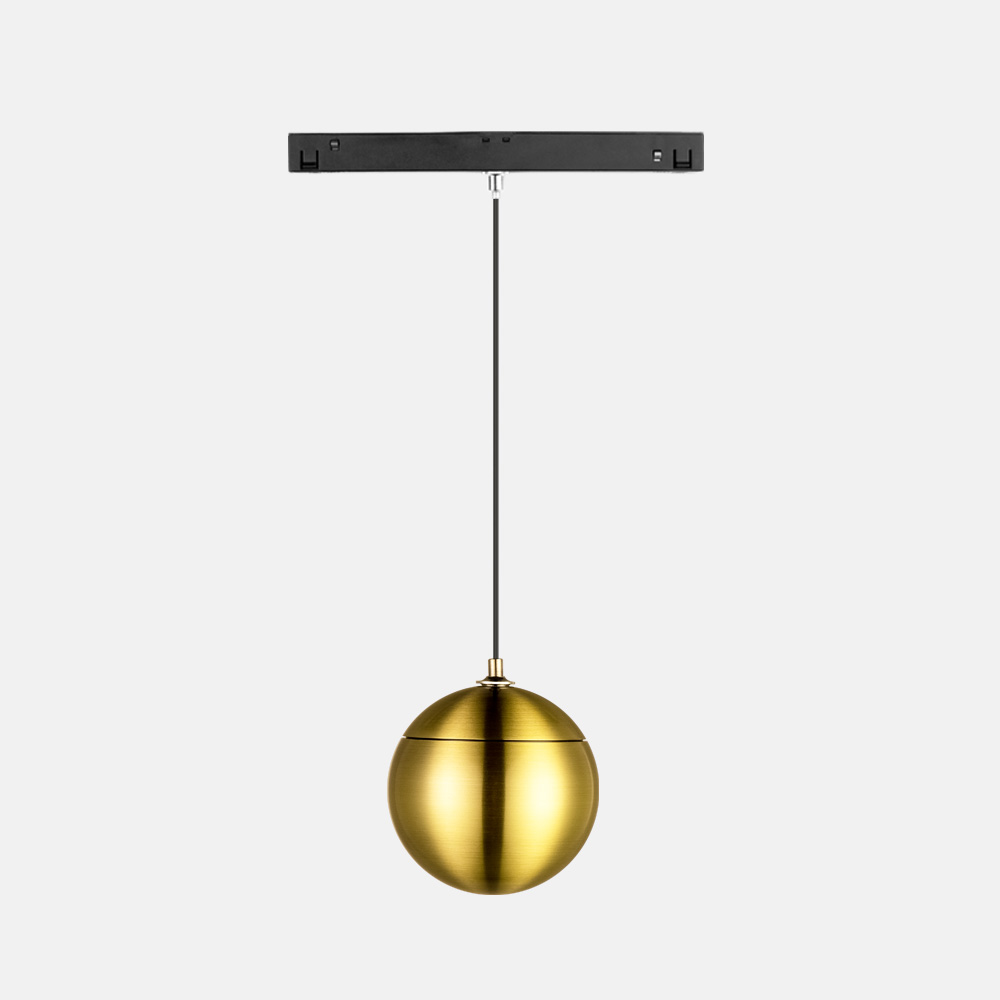

Gold

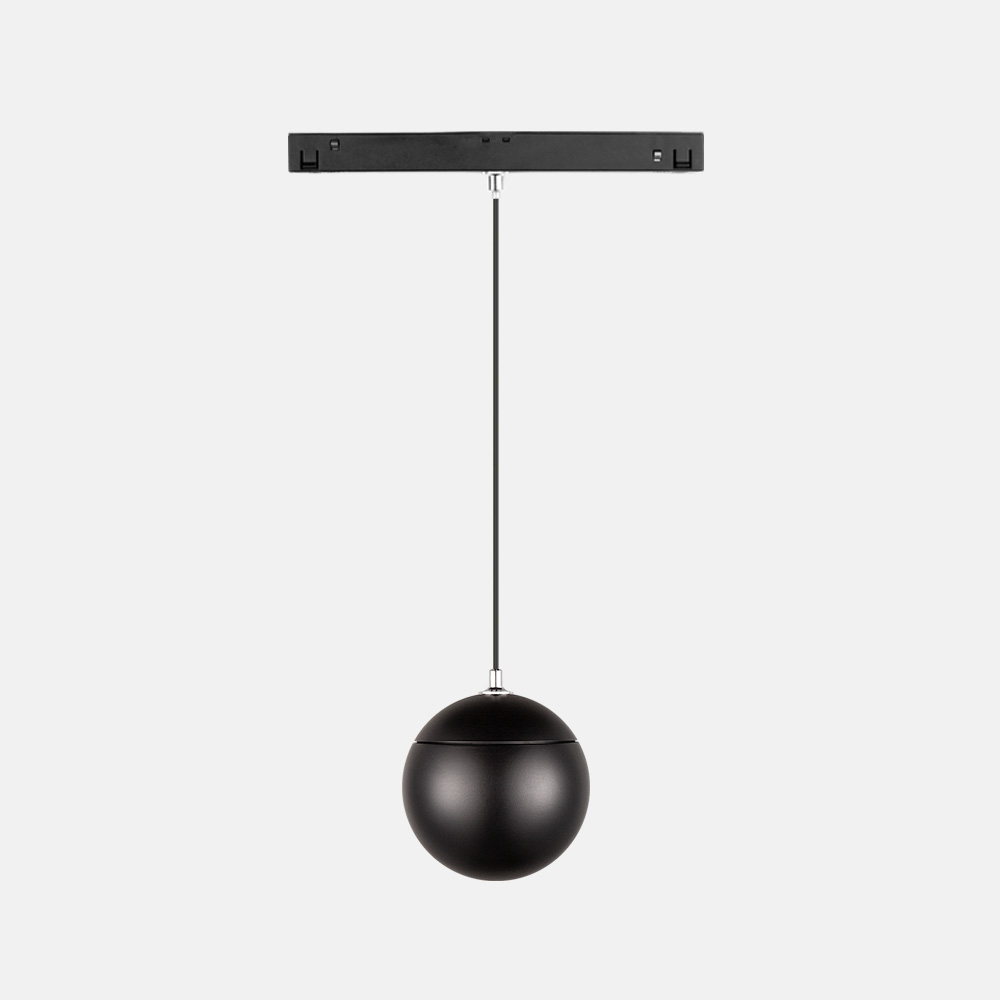

Black

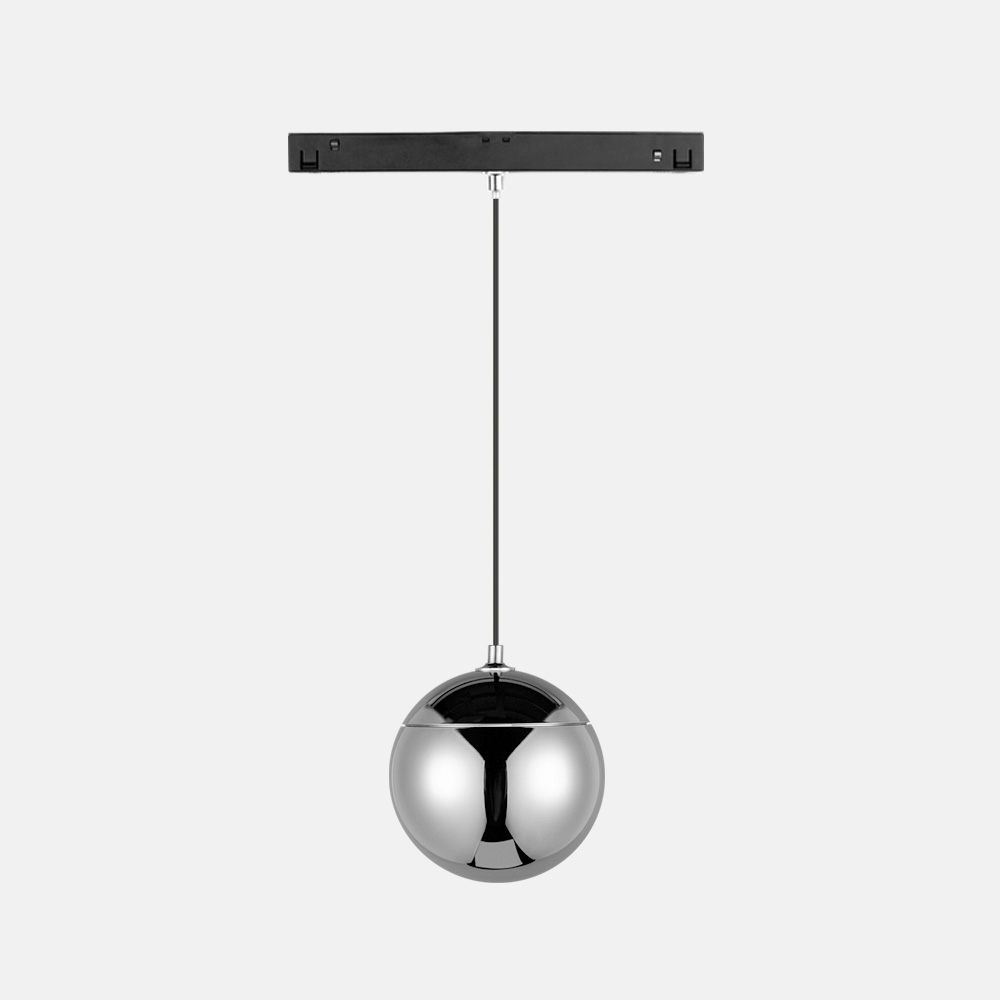

Chrome

Scenes

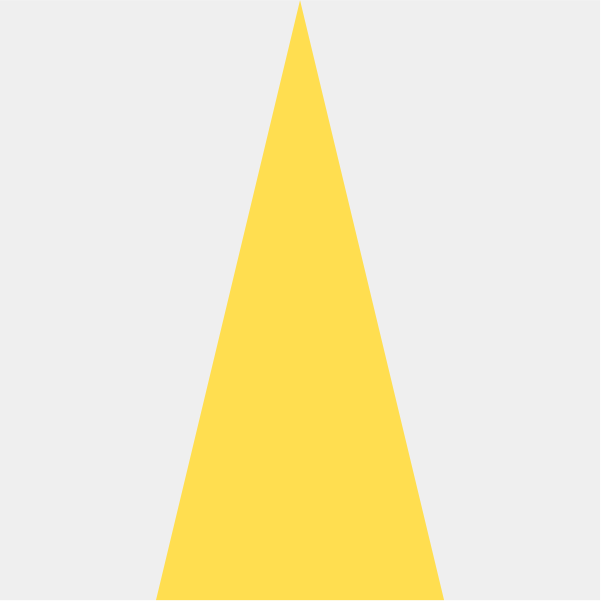

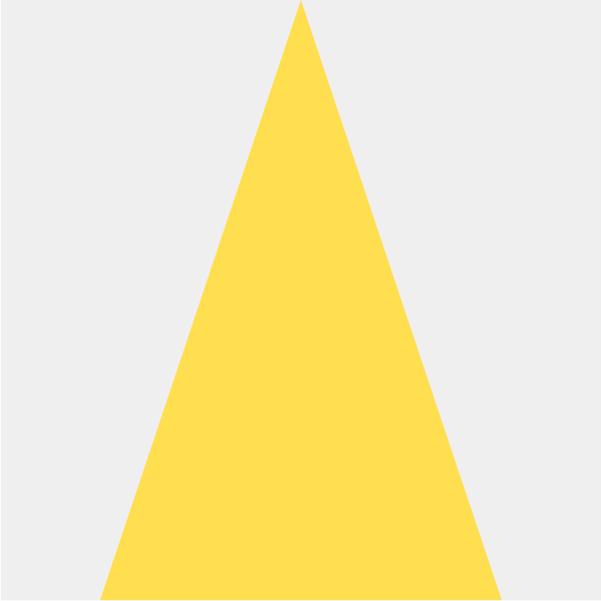

Beam angle

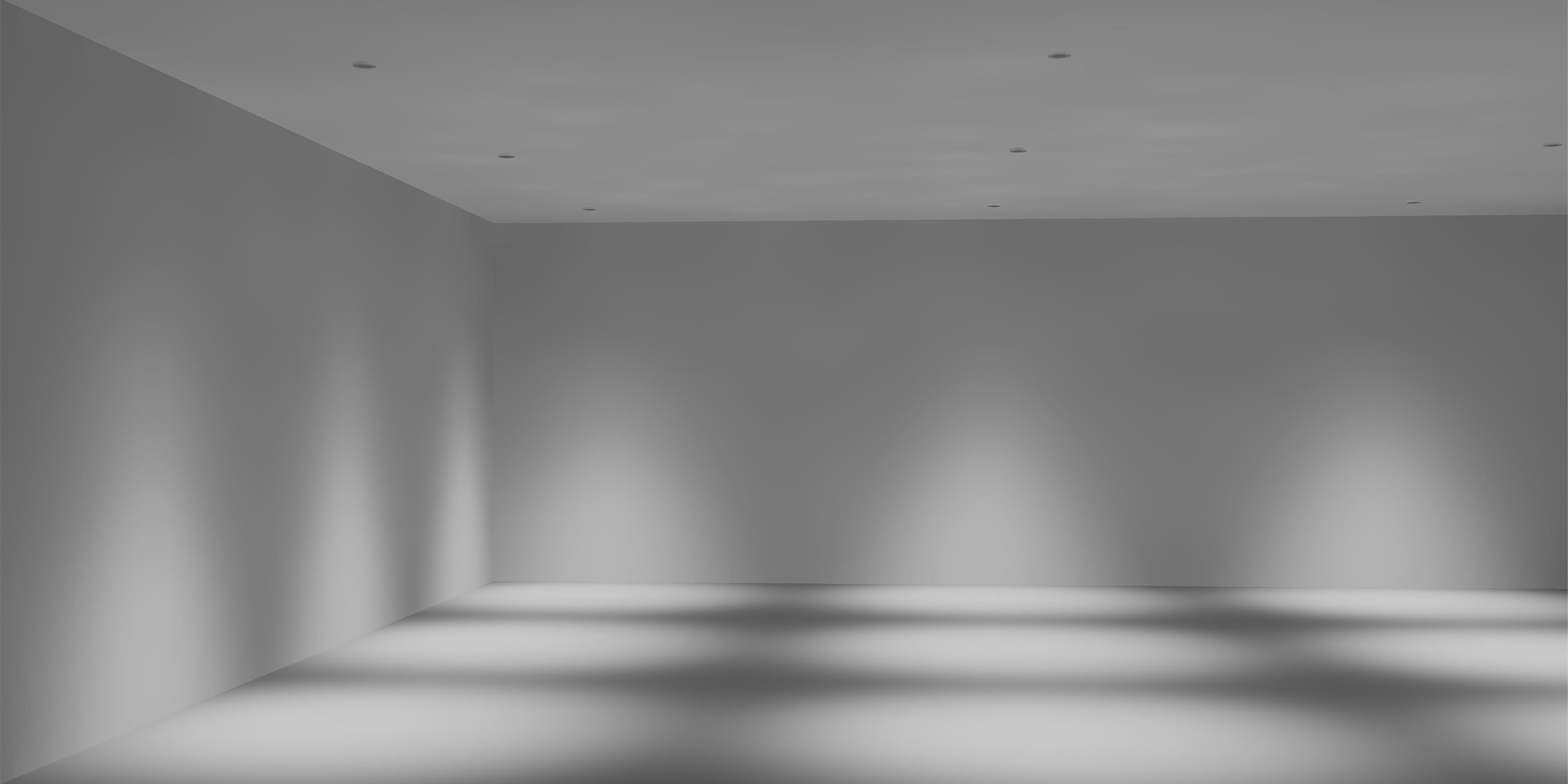

27°

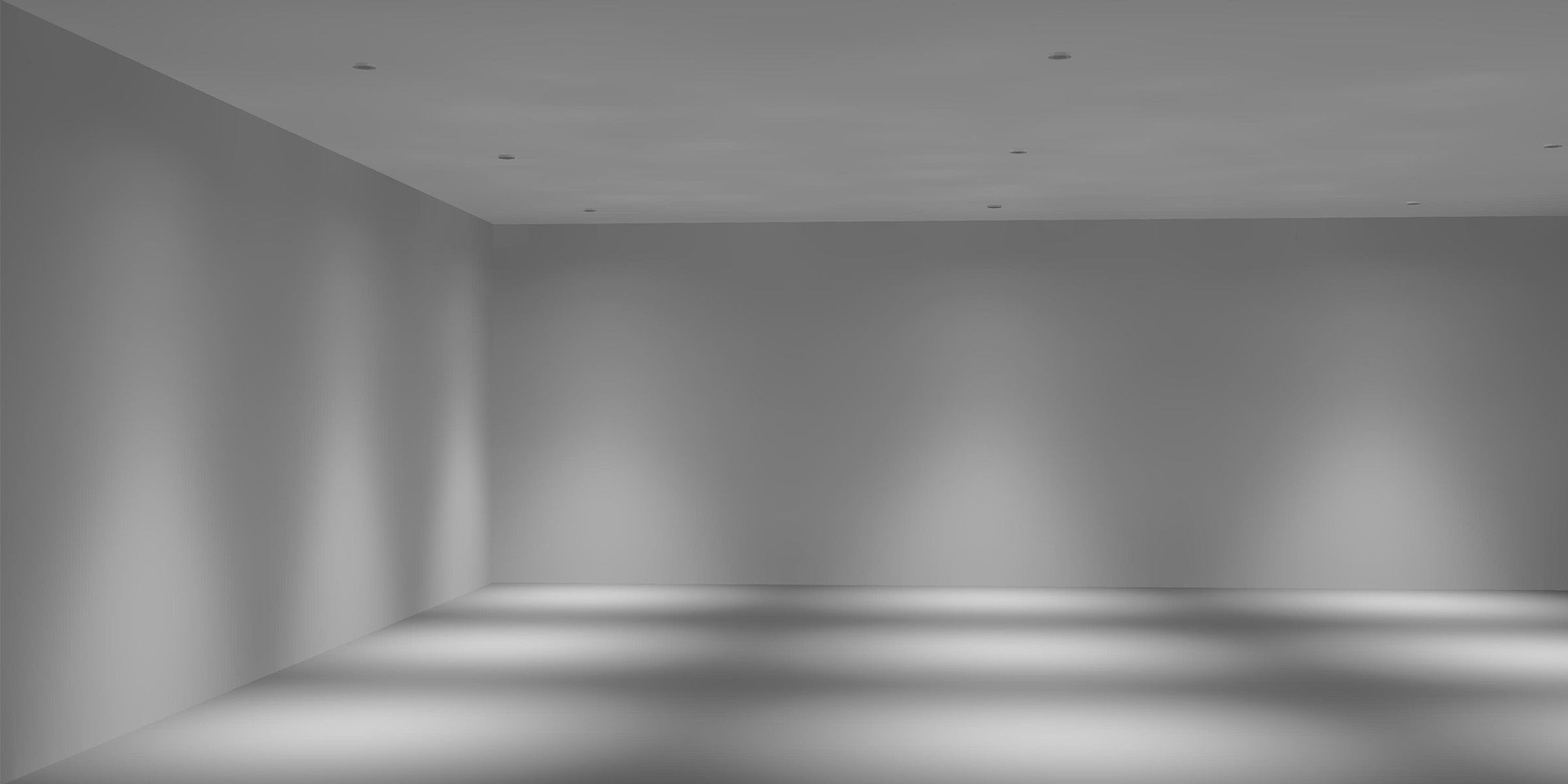

37°

Applicable Instructions for 27° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
